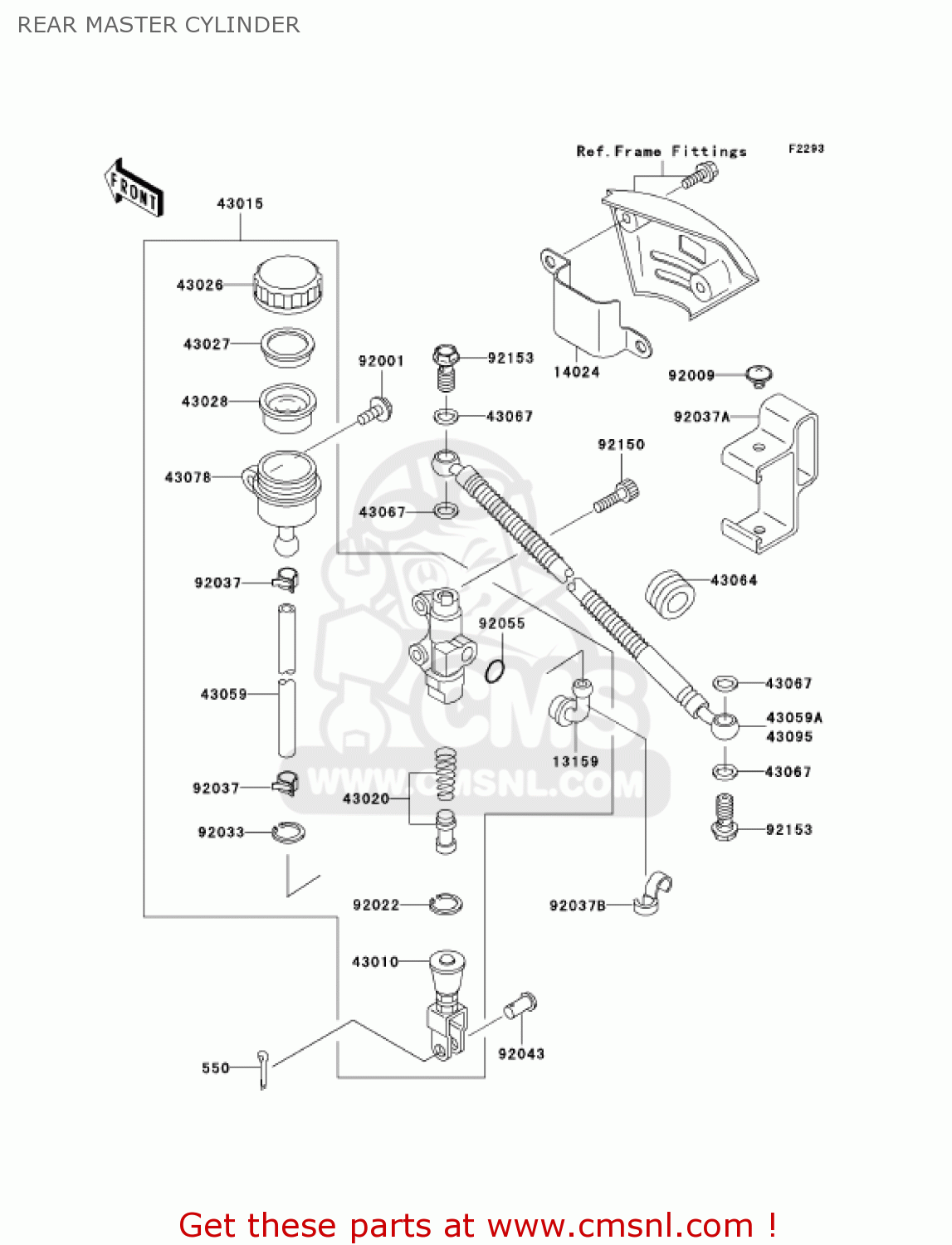

REAR MASTER CYLINDER

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

14024

140241531
ref: 14024

COVER,RESERVOIR TANK

€ 7.00

43010

430101062
ref: 43010

ROD-ASSY-BRAKE

€ 38.50

43015

430151365
ref: 43015

MASTER CYLINDER ASSEMBLY

€ 215.50

43020

430201063
ref: 43020

PISTON-COMP-BRAKE

€ 47.50

43026

430261064
ref: 43026

CAP-BRAKE

€ 21.00

43027

430271053
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281065
ref: 43028

DIAPHRAGM

€ 13.00

43059

430591408
ref: 43059

HOSE-BRAKE

€ 15.50

43064

43064007
ref: 43064

43064007

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781080
ref: 43078

RESERVOIR

€ 19.00

43095

430951341
ref: 43095

HOSE-BRAKE,RR

€ 74.00

92001

920011860
ref: 92001

BOLT,W/P,6X16

€ 2.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92022

920221601
ref: 92022

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371710
ref: 92037

CLAMP

€ 6.50

92037A

920371895
ref: 92037A

CLAMP,HOSE

€ 6.50

92037B

920371914
ref: 92037B

CLAMP,HOSE

€ 3.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92150

921501843
ref: 92150

BOLT

€ 2.50

92153

921530627
ref: 92153

BOLT,OIL,L=23

€ 3.50
