HEADLIGHT(S)

KL650A18 KLR650 2004 USA CALIFORNIA CANADA

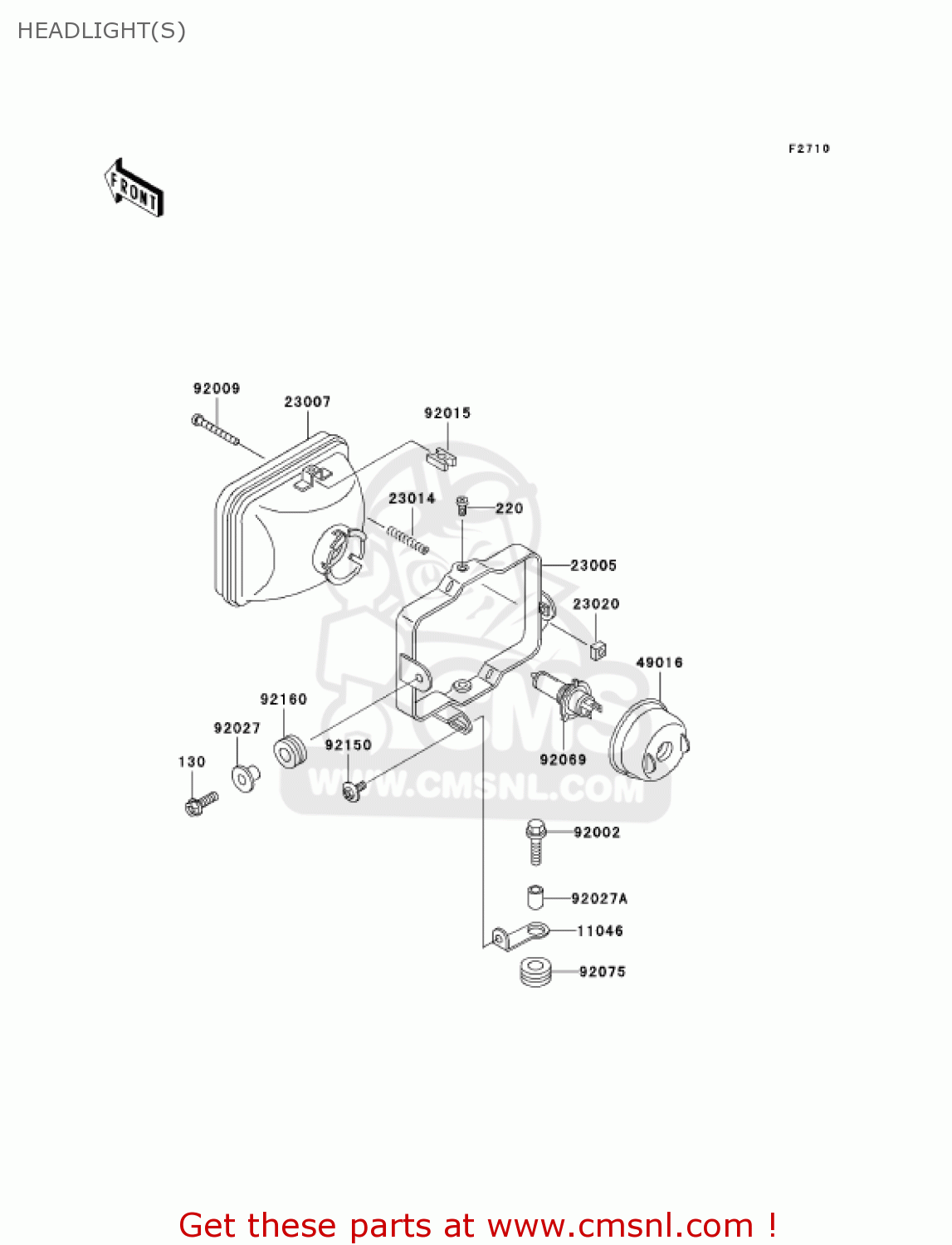

Headlight(s) diagram KL650A18 KLR650 2004 USA CALIFORNIA CANADA

HEADLIGHT(S) KL650A18 KLR650 2004 USA CALIFORNIA CANADA
HEADLIGHT(S) KL650A18 KLR650 2004 USA CALIFORNIA CANADA
HEADLIGHT(S) KL650A18 KLR650 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130L0825
ref: 130
BOLT-FLANGED
€ 2.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
11046
110461041
ref: 11046
BRACKET,HEAD LAMP
110461041
€ 3.00
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
230051052
€ 27.50
23007
230071364
ref: 23007
LENS-COMP,HEAD LAMP
230071364
€ 91.50
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
23014005
€ 2.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
490161037
€ 7.50
92002
920021135
ref: 92002
BOLT,6X25
920021135
€ 2.50
92009
920091065
ref: 92009
SCREW,4MM
920091065
€ 3.00
92015
920151354
ref: 92015
NUT,5MM
920151354
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
92027162
€ 4.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 3.00
92150
921501764
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
