FRONT BRAKE (A15-A17)

KL650A16 KLR650 2002 USA CALIFORNIA CANADA

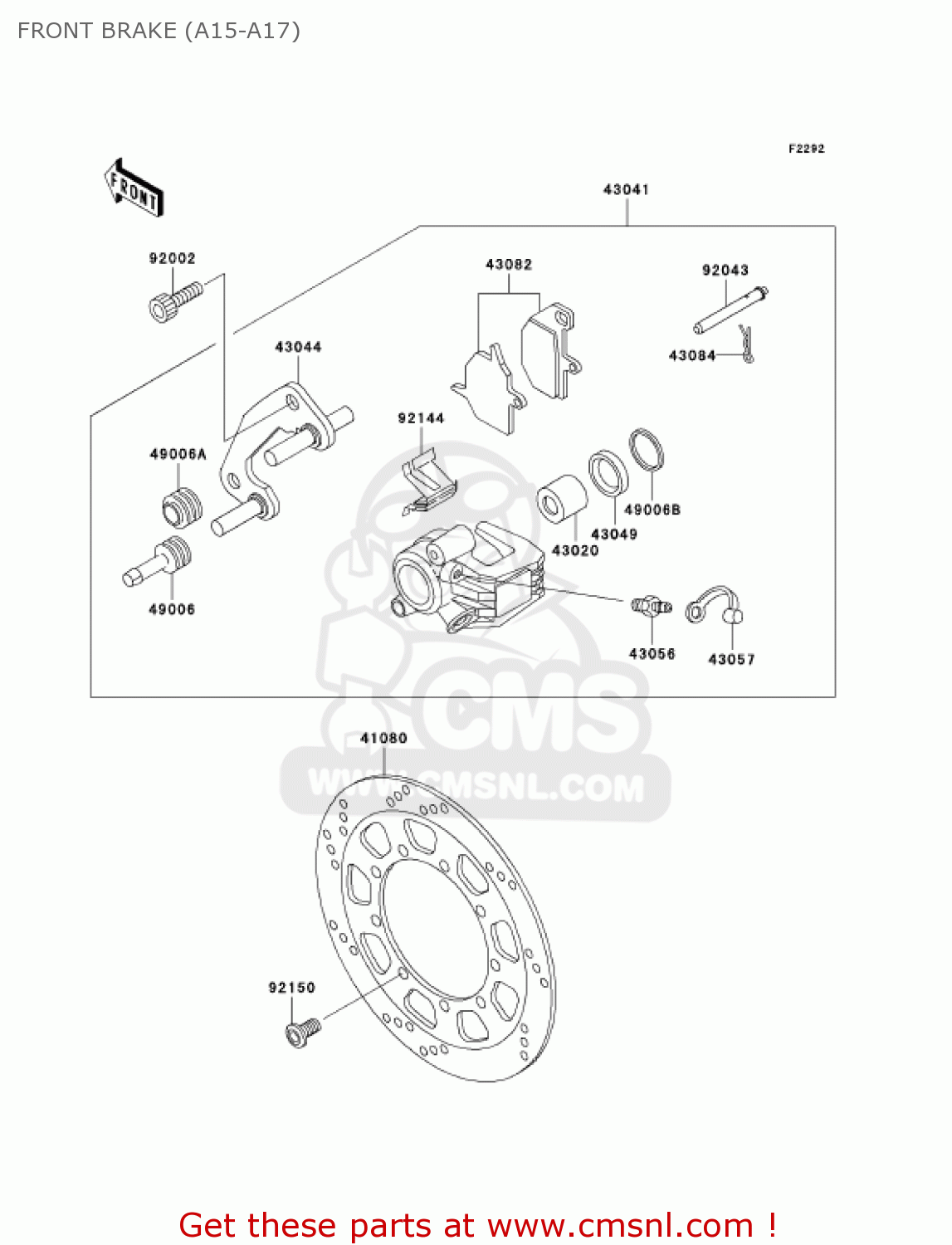

Front brake (a15-a17) diagram KL650A16 KLR650 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

41080

410801178
ref: 41080

DISC,FR

€ 249.50

43020

430201097
ref: 43020

PISTON-COMP-BRAKE

€ 47.50

43041

430411907DJ
ref: 43041

CALIPER-ASSY,FR,LH,BL

€ 428.00

43044

430441074
ref: 43044

HOLDER-COMP-CALIPER,F

€ 107.50

43049

430491097
ref: 43049

PACKING,PISTON SEAL (NAS)

€ 7.50

43056

430561054
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

43082

430821078
ref: 43082

PAD-ASSY-BRAKE (NAS)

€ 42.50

43084

43084003
ref: 43084

CLIP, PAD

€ 2.50

49006

490061054
ref: 49006

BOOT,CALIPER

€ 8.00

49006A

490061055
ref: 49006A

BOOT,CALIPER

€ 4.50

49006B

490061212
ref: 49006B

BOOT,PISTON SEAL

€ 15.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92043

920431356
ref: 92043

PIN,PAD

€ 7.00

92144

921441117
ref: 92144

SPRING,PAD

€ 24.50

92150

921501852
ref: 92150

BOLT,DISC PLATE,8X15

€ 3.00
