FRAME
KL650A16 KLR650 2002 USA CALIFORNIA CANADA

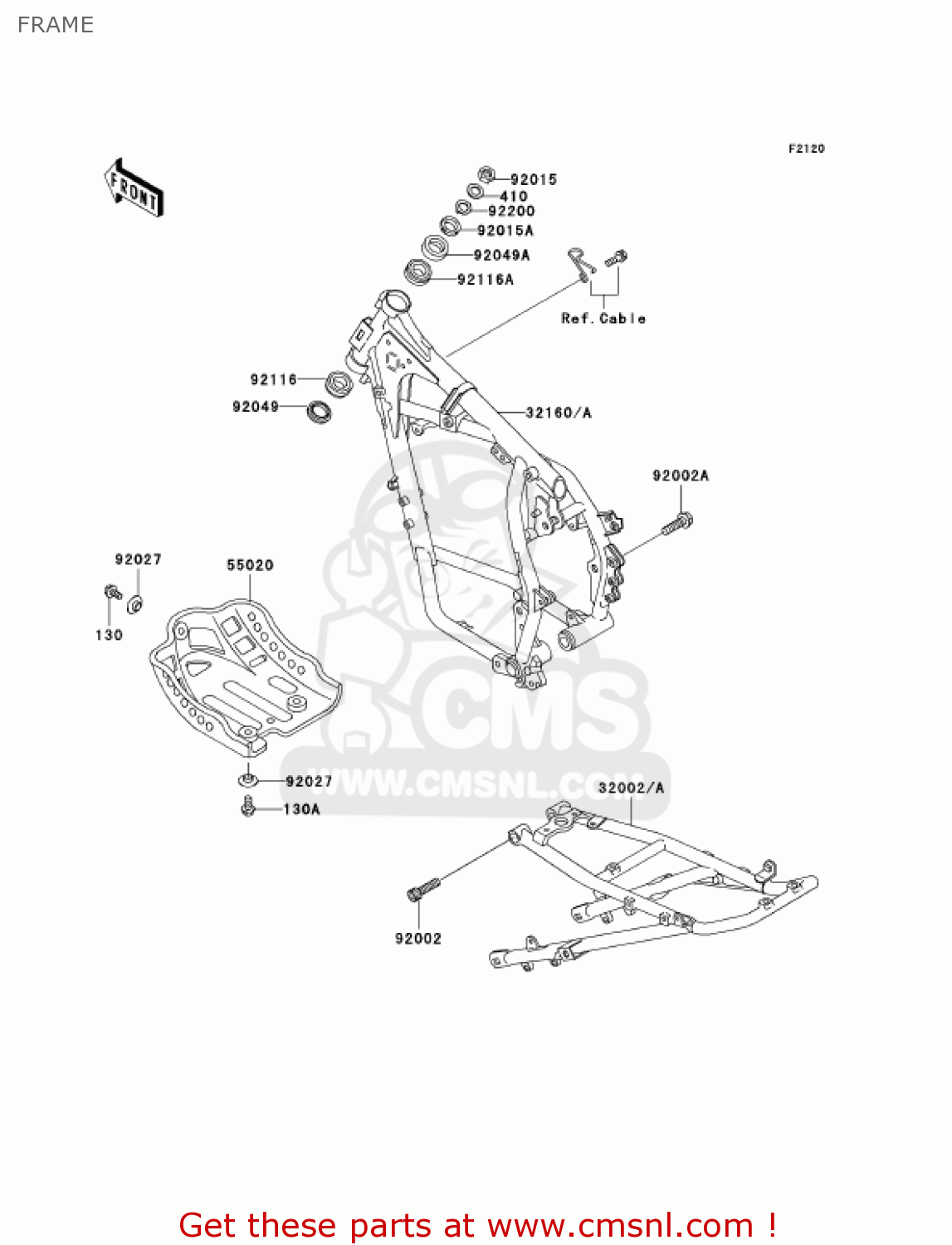

Frame diagram KL650A16 KLR650 2002 USA CALIFORNIA CANADA
FRAME KL650A16 KLR650 2002 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130G0614
ref: 130A
BOLT,FLANGED,6X14
€ 0.50
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
32002
320021918CE
ref: 32002
[CN,US
FRAME-COMP,RR,SILVER
€ 601.00
32002A
320021923CE
ref: 32002A
[CA]
FRAME,COMPLETE,REAR,SILVER #25
€ 607.50
32160A
321601759CE
ref: 32160A
FRAME-COMP,FR,SILVER
€ 837.00
55020
5502012496Z
ref: 55020
GUARD,ENGINE,BLACK
€ 170.50
92002
920021844
ref: 92002
BOLT
€ 3.00
92002A
920021971
ref: 92002A
BOLT
€ 3.00
92015
920151404
ref: 92015
NUT,18MM
€ 15.50
92015A
920151546
ref: 92015A
NUT,25MM,T=12
€ 14.50
92027
920271794
ref: 92027
COLLAR
€ 2.50
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161052
ref: 92116A
BEARING-ROLLER,25X47X
€ 41.00
92200
922001357
ref: 92200
WASHER,CLAW,18.5X30X2
€ 4.50
