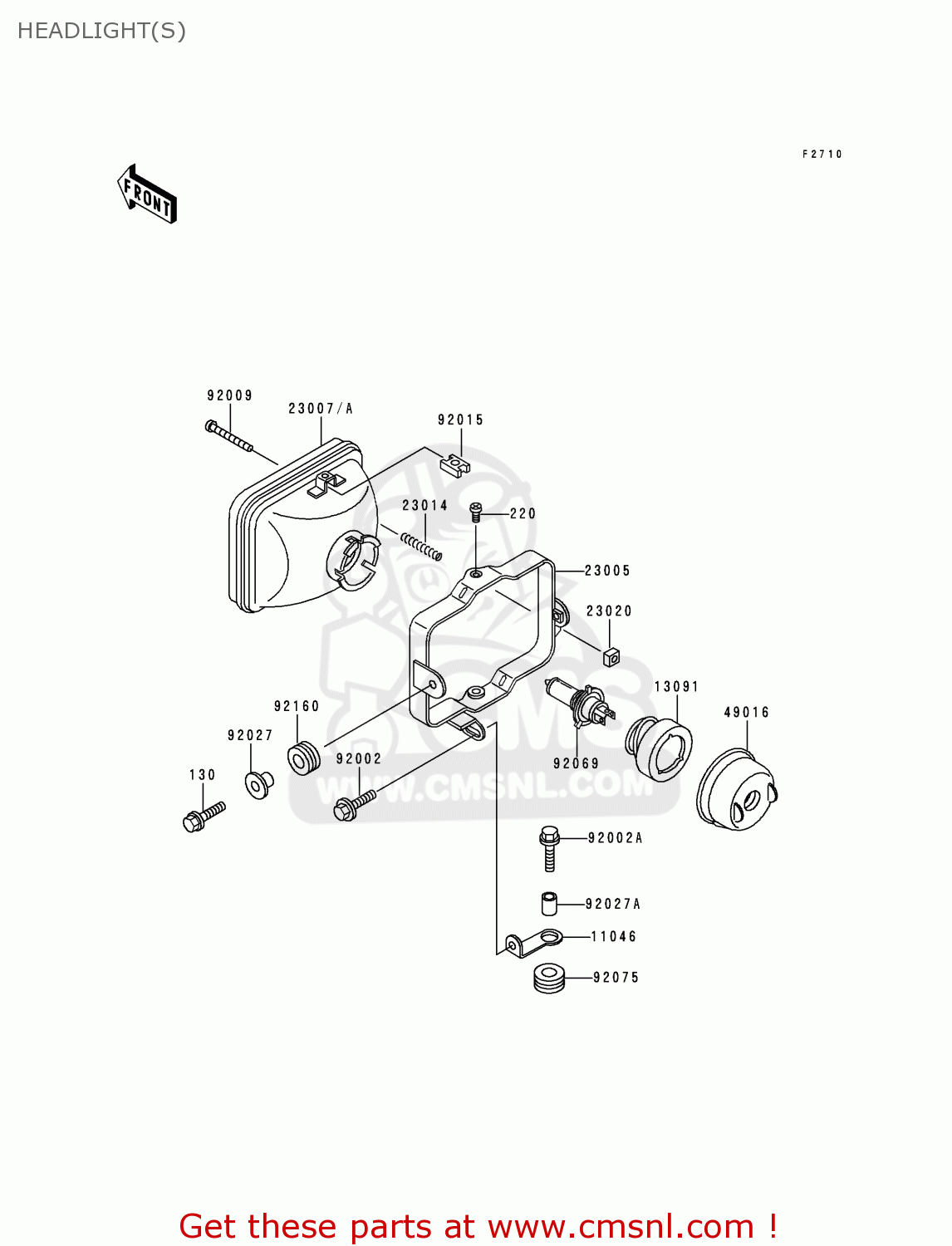

HEADLIGHT(S)

ref

part #

description

quantity

130

130B0825
ref: 130

BOLT,FLANGED,8X25

€ 1.00

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50

11046

110461041
ref: 11046

BRACKET,HEAD LAMP

€ 3.00

23005

230051052
ref: 23005

BODY-COMP-HEAD LAMP

€ 27.50

23007A

230071364
ref: 23007A

LENS-COMP,HEAD LAMP

€ 91.50

23014

23014005
ref: 23014

SPRING-FOCUS ADJUST

€ 2.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

49016

490161037
ref: 49016

COVER-SEAL,SOCKET

€ 7.50

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021135
ref: 92002A

BOLT,6X25

€ 2.50

92009

920091065
ref: 92009

SCREW,4MM

€ 3.00

92015

920151354
ref: 92015

NUT,5MM

€ 3.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92160

921601007
ref: 92160

DAMPER

€ 3.50

all assemblies
