CYLINDER/PISTON(S)

KL650A14 KLR650 2000 USA CALIFORNIA CANADA

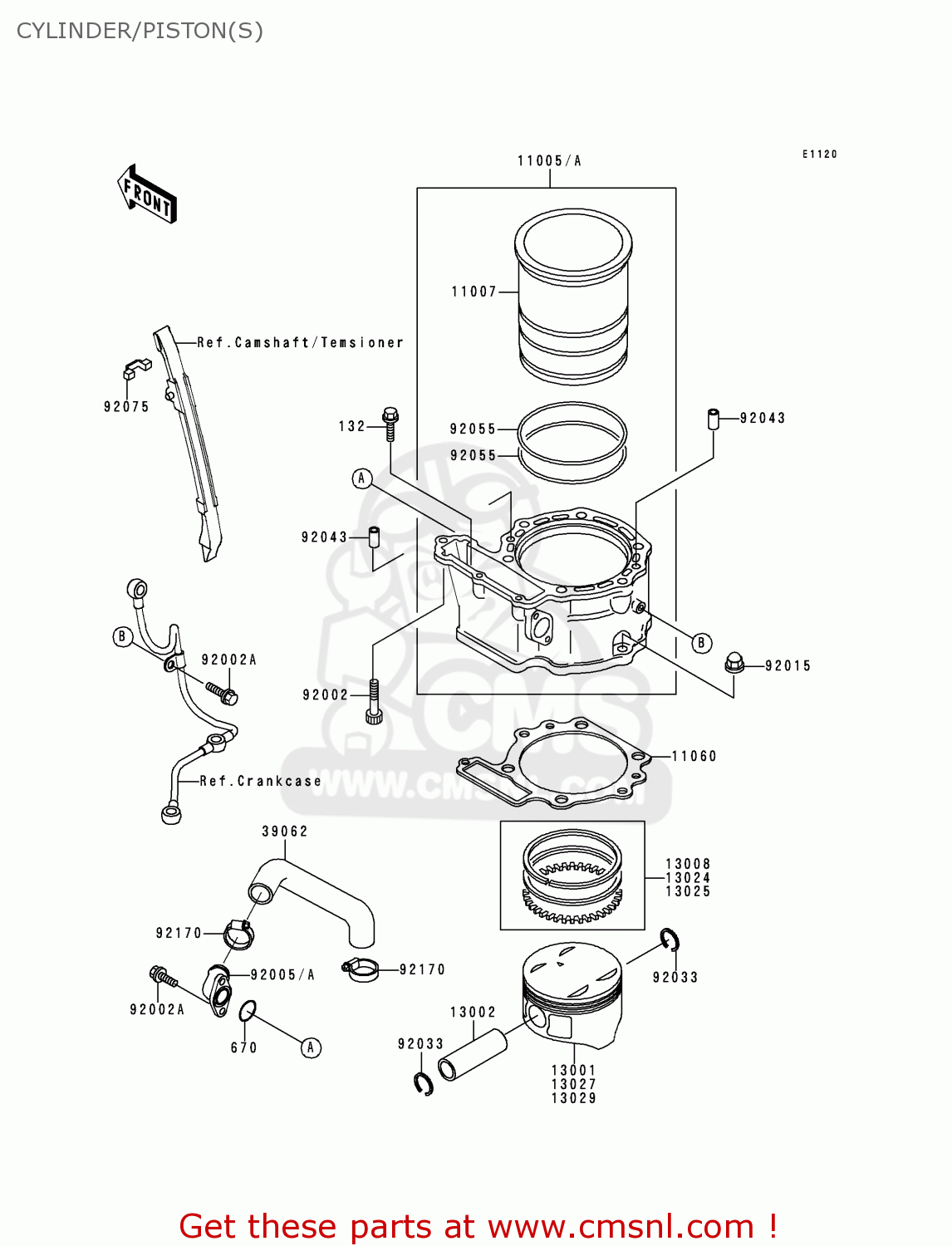

Cylinder/piston(s) diagram KL650A14 KLR650 2000 USA CALIFORNIA CANADA

CYLINDER/PISTON(S) KL650A14 KLR650 2000 USA CALIFORNIA CANADA
CYLINDER/PISTON(S) KL650A14 KLR650 2000 USA CALIFORNIA CANADA
CYLINDER/PISTON(S) KL650A14 KLR650 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
132G0625
€ 3.00
670
670B2018
ref: 670
O RING,18MM
670B2018
€ 1.00
11005
110051781
ref: 11005
CYLINDER-ENGINE
110051781
€ 915.50
11007
110071137
ref: 11007
LINER-CYLINDER
110071137
€ 151.50
11060
110601110
ref: 11060
GASKET,CYLINDER BASE (NAS)
110601110
€ 9.00
13001
130011284
ref: 13001
PISTON-ENGINE,STD
130011284
€ 113.50
13002
130021101
ref: 13002
PIN-PISTON
130021101
€ 22.00
13008
130081081
ref: 13008
RING-SET-PISTON,STD
130081081
€ 62.50
13024
130241071
ref: 13024
RING-SET-PISTON LL,O/
130241071
€ 74.00
13025
130251078
ref: 13025
RING-SET-PISTON L,O/S
130251078
€ 74.00
13027
130271153
ref: 13027
PISTON-ENGINE LL,O/S
130271153
€ 134.50
13029
130291176
ref: 13029
PISTON-ENGINE L,O/S
130291176
€ 134.50
39062
390621216
ref: 39062
HOSE-COOLING,PUMP-CYL
390621216
€ 16.00
92002
920021409
ref: 92002
BOLT,8X35
920021409
€ 3.50
92002A
920021569
ref: 92002A
BOLT,6X12
920021569
€ 2.50
92005A
920051279
ref: 92005A
FITTING
920051279
€ 15.00
92015
920151982
ref: 92015
NUT
920151982
€ 3.00
92033
920331226
ref: 92033
RING-SNAP
920331226
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551371
ref: 92055
RING-O,110.5X2.5
920551371
€ 7.00
92075
920751968
ref: 92075
DAMPER
920751968
€ 3.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
