METER(S)

KL600B8 KLR600 1993 GREECE

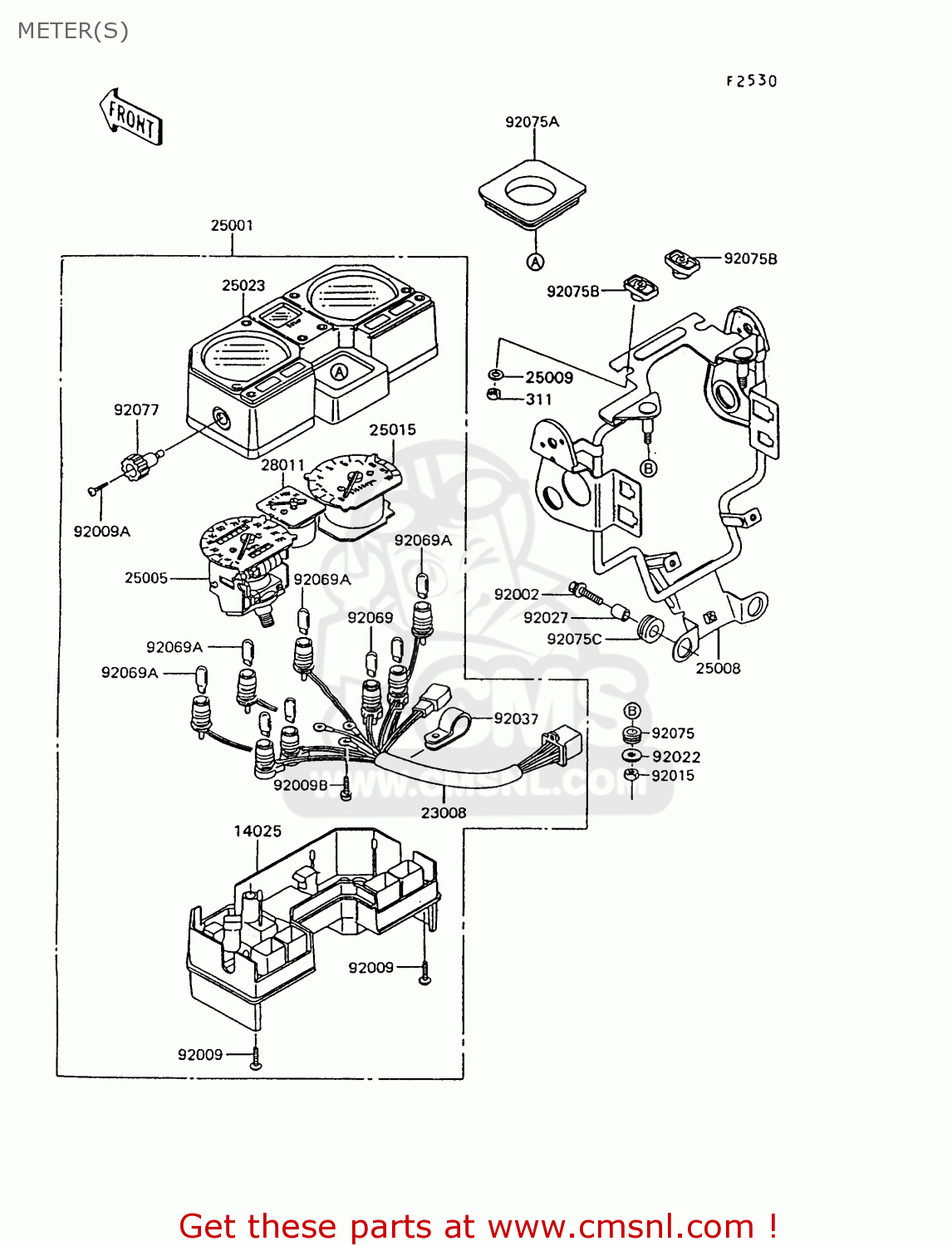

Meter(s) diagram KL600B8 KLR600 1993 GREECE

METER(S) KL600B8 KLR600 1993 GREECE
METER(S) KL600B8 KLR600 1993 GREECE
METER(S) KL600B8 KLR600 1993 GREECE
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
311C0500
€ 0.50
14025
140251818
ref: 14025
COVER,METER CASE,LWR
140251818
€ 59.50
23008
230081215
ref: 23008
SOCKET-ASSY,METER
230081215
€ 86.50
25001
250011516
ref: 25001
METER-ASSY,KPH
250011516
€ 769.00
25005
250051261
ref: 25005
SPEEDOMETER,KPH
250051261
€ 168.00
25008
250081114
ref: 25008
BRACKET-METER
250081114
€ 52.50
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
25009004
€ 2.50
25015
250151208
ref: 25015
TACHOMETER,X1000R/MIN
250151208
€ 208.50
25023
250231107
ref: 25023
COVER-METER CASE,UPP
250231107
€ 66.00
28011
280111058
ref: 28011
METER,TEMP
280111058
€ 115.00
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
920091172
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
920091293
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
920151391
€ 2.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92037
920371479
ref: 92037
CLAMP,METER,SOCKET AS
€ 6.00
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
920691059
€ 2.50
92075
92075024
ref: 92075
DAMPER
92075024
€ 2.50
92075A
920751578
ref: 92075A
DAMPER,IGNITION SWITC
920751578
€ 4.50
92075B
920751581
ref: 92075B
DAMPER,METER BRACKET
920751581
€ 4.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
92075209
€ 3.00
92077
920771054
ref: 92077
KNOB,METER
920771054
€ 6.00
