Genuine KL Kawasaki Parts delivered quickly!


FOOTRESTS

KL600B8 KLR600 1993 GREECE

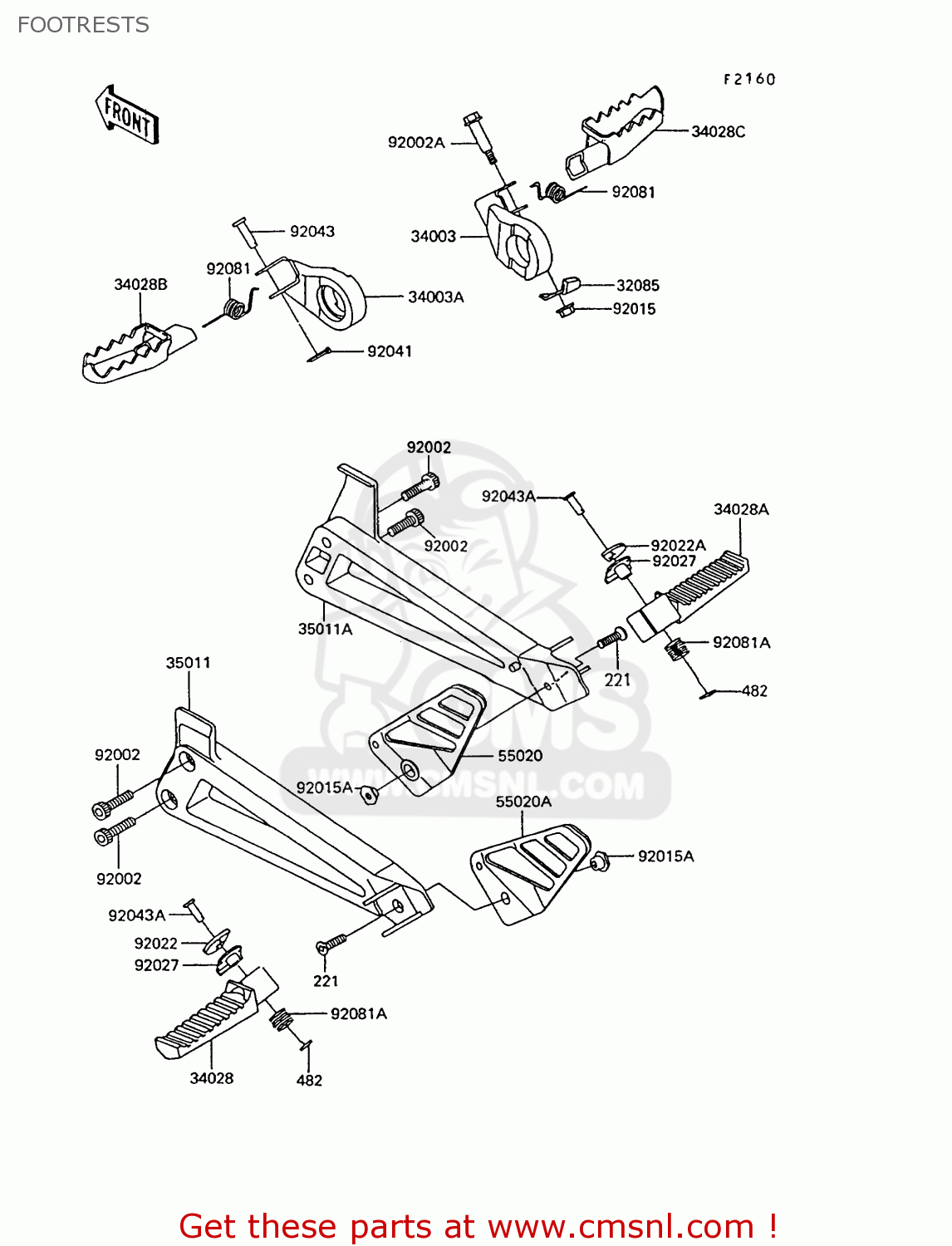

Footrests diagram KL600B8 KLR600 1993 GREECE

FOOTRESTS KL600B8 KLR600 1993 GREECE
FOOTRESTS KL600B8 KLR600 1993 GREECE
FOOTRESTS KL600B8 KLR600 1993 GREECE
prices are in EUR
ref
part #
description
quantity
221
221D0618
ref: 221
SCREW-CSK-CROS
221D0618
€ 2.00
482
482L5000
ref: 482
CIRCLIP-TYPE-E,5MM
482L5000
€ 1.00
32085
320851178
ref: 32085
STOPPER,KICK PEDAL
320851178
€ 14.50
34003
340031202
ref: 34003
HOLDER-STEP,FR,RH
340031202
€ 54.50
34003A
340031238
ref: 34003A
HOLDER-STEP,FR,LH
340031238
€ 51.50
34028
340281111
ref: 34028
STEP,RR,LH
340281111
€ 45.00
34028A
340281112
ref: 34028A
STEP,RR,RH
340281112
€ 37.00
34028B
340281145
ref: 34028B
STEP,FR,LH
340281145
€ 23.50
34028C
340281146
ref: 34028C
STEP,FR,RH
340281146
€ 23.50
35011
350111203
ref: 35011
STAY,RR STEP,LH
350111203
€ 134.50
35011A
350111204
ref: 35011A
STAY,RR STEP,RH
350111204
€ 98.00
55020
550201169
ref: 55020
GUARD,STEP,RR,RH
550201169
€ 7.00
55020A
550201170
ref: 55020A
GUARD,STEP,RR,LH
550201170
€ 7.00
92002
920021178
ref: 92002
BOLT,SOCKET,8X20
920021178
€ 3.00
92002A
920021193
ref: 92002A
BOLT
920021193
€ 4.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92015A
920151394
ref: 92015A
NUT,STAY,6MM
920151394
€ 2.50
92022
920221468
ref: 92022
WASHER,STEP,LH
920221468
€ 3.00
92022A
920221469
ref: 92022A
WASHER,STEP,RH
920221469
€ 3.50
92027
920271678
ref: 92027
COLLAR,STEP,RR
920271678
€ 12.00
92041
920411051
ref: 92041
COTTER
920411051
€ 3.00
92043
92043080
ref: 92043
PIN-FOOTREST BAR FIT
92043080
€ 3.50
92043A
920431238
ref: 92043A
PIN,6X38.5
920431238
€ 3.50
92081
920811133
ref: 92081
SPRING,FOOTREST STEP
920811133
€ 4.00
92081A
920811612
ref: 92081A
SPRING,STEP,RR
920811612
€ 2.50
