FRONT FORK
KL600B6 KLR600 1991 ITALY

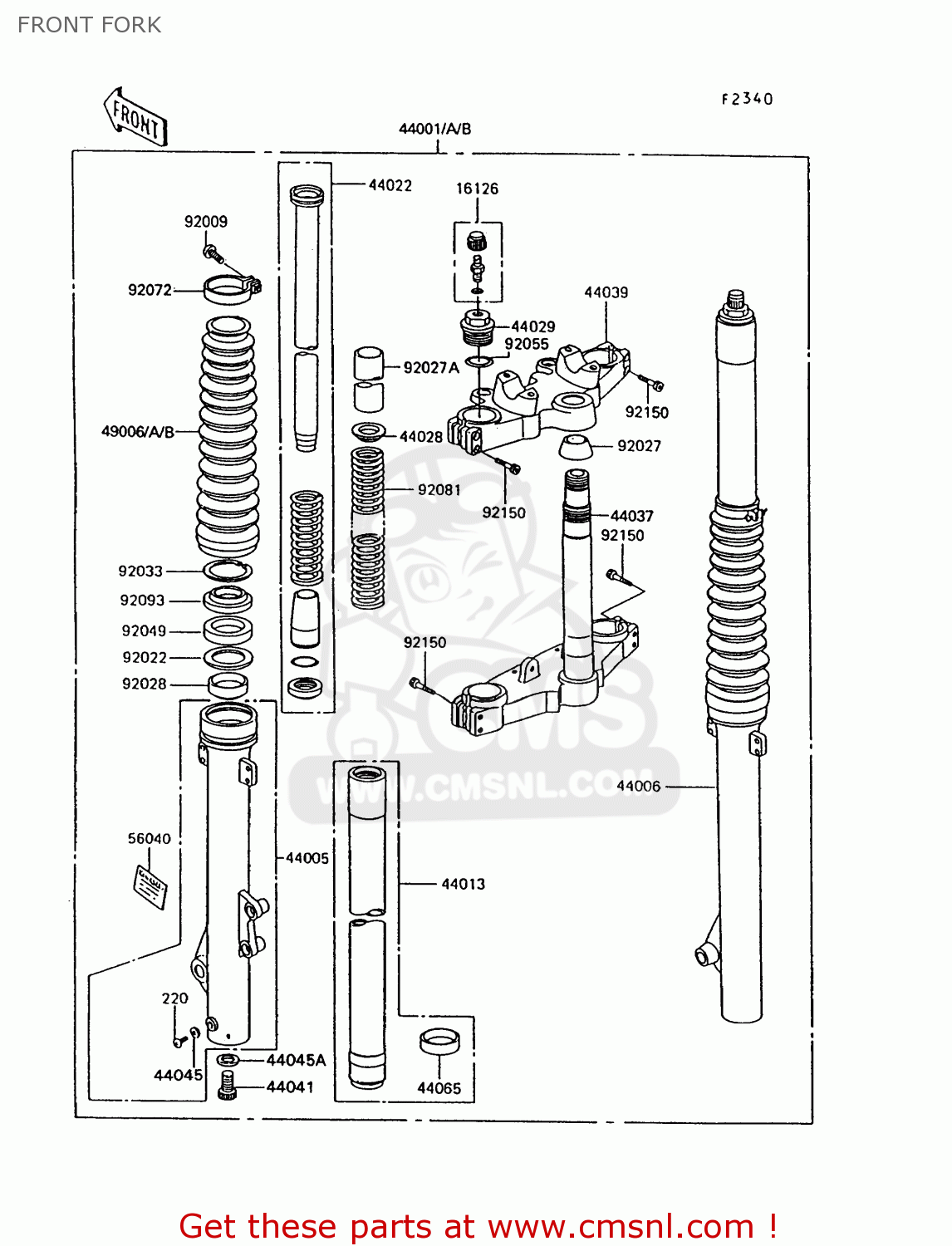

Front fork diagram KL600B6 KLR600 1991 ITALY
FRONT FORK KL600B6 KLR600 1991 ITALY
×
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001A
440011779GF
ref: 44001A
FORK-FRONT,BLUE NO.32
€ 1,488.50
44005
440051229
ref: 44005
PIPE-LEFT FORK OUTER
€ 177.50
44006
440061229
ref: 44006
PIPE-RIGHT FORK OUTER
€ 289.50
44013
440131227
ref: 44013
PIPE-FORK INNER
€ 165.50
44022
440221177
ref: 44022
CYLINDER-FORK
€ 77.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371275
ref: 44037
HOLDER-FORK UNDER
€ 307.00
44039
440391207
ref: 44039
HOLDER-FORK UPPER
€ 171.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
49006A
490061166GF
ref: 49006A
BOOT,FORK,BLUE NO.32
€ 40.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92027
920271791
ref: 92027
COLLAR,UPPER BRACKET
€ 46.00
92027A
920271872
ref: 92027A
COLLAR,L=165
€ 32.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92081
920811871
ref: 92081
SPRING
€ 57.50
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
92150
921501417
ref: 92150
BOLT
€ 3.00
