CRANKCASE

KL600B6 KLR600 1991 ITALY

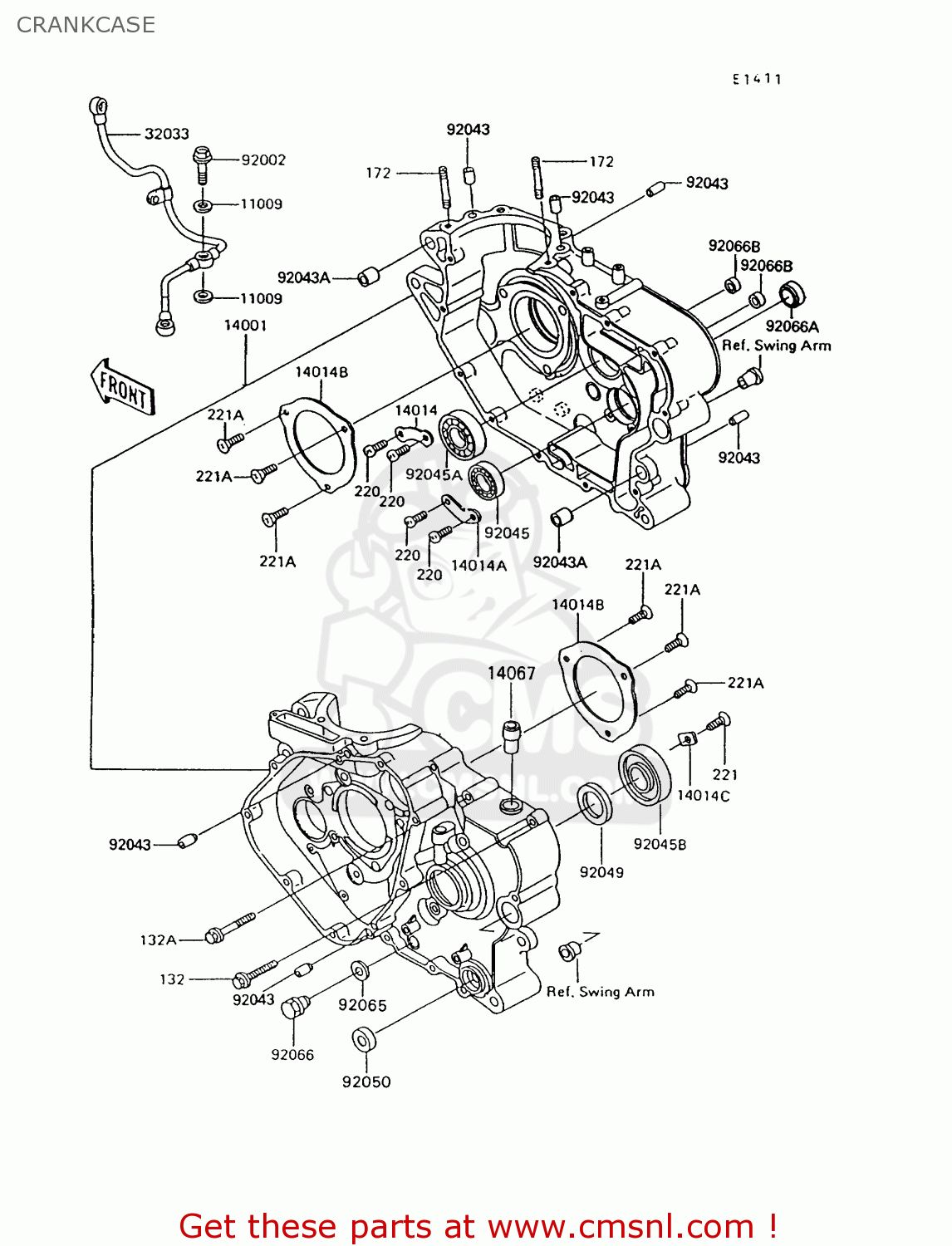

Crankcase diagram KL600B6 KLR600 1991 ITALY

CRANKCASE KL600B6 KLR600 1991 ITALY
CRANKCASE KL600B6 KLR600 1991 ITALY
CRANKCASE KL600B6 KLR600 1991 ITALY
prices are in EUR
ref
part #
description
quantity
132
132J0630
ref: 132
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
132J0650
€ 3.00
172
172G0822
ref: 172
BOLT-STUD,8X22
172G0822
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
221B0612
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
14001
140015283
ref: 14001
SET-CRANKCASE
€ 908.50
14014
14014037
ref: 14014
PLATE-POSITION
14014037
€ 2.50
14014A
140141015
ref: 14014A
PLATE-POSITION
140141015
€ 3.50
14014B
140141051
ref: 14014B
PLATE-POSITION
140141051
€ 26.00
14014C
140141057
ref: 14014C
PLATE-POSITION
140141057
€ 2.50
14067
14067006
ref: 14067
BREATHER JOINT
14067006
€ 14.00
32033
320331519
ref: 32033
PIPE
320331519
€ 63.50
92002
920021170
ref: 92002
BOLT,BANJO,10X25
920021170
€ 6.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431279
ref: 92043A
PIN,11.5X14X14
920431279
€ 3.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
920451105
ref: 92045A
BEARING-BALL,TMB205
920451105
€ 25.00
92045B
920451127
ref: 92045B
BEARING-BALL,TM-SX059
920451127
€ 47.00
92049
920491159
ref: 92049
SEAL-OIL,TC32457
920491159
€ 8.00
92050
92050082
ref: 92050
OIL SEAL,CHANGE SHAFT
92050082
€ 5.50
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
92066A
920661264
ref: 92066A
PLUG,RCA207
920661264
€ 5.50
92066B
920661282
ref: 92066B
PLUG
920661282
€ 4.00
