SIDE COVERS/CHAIN COVER

KL250G6 SUPER SHERPA 2002 USA CANADA

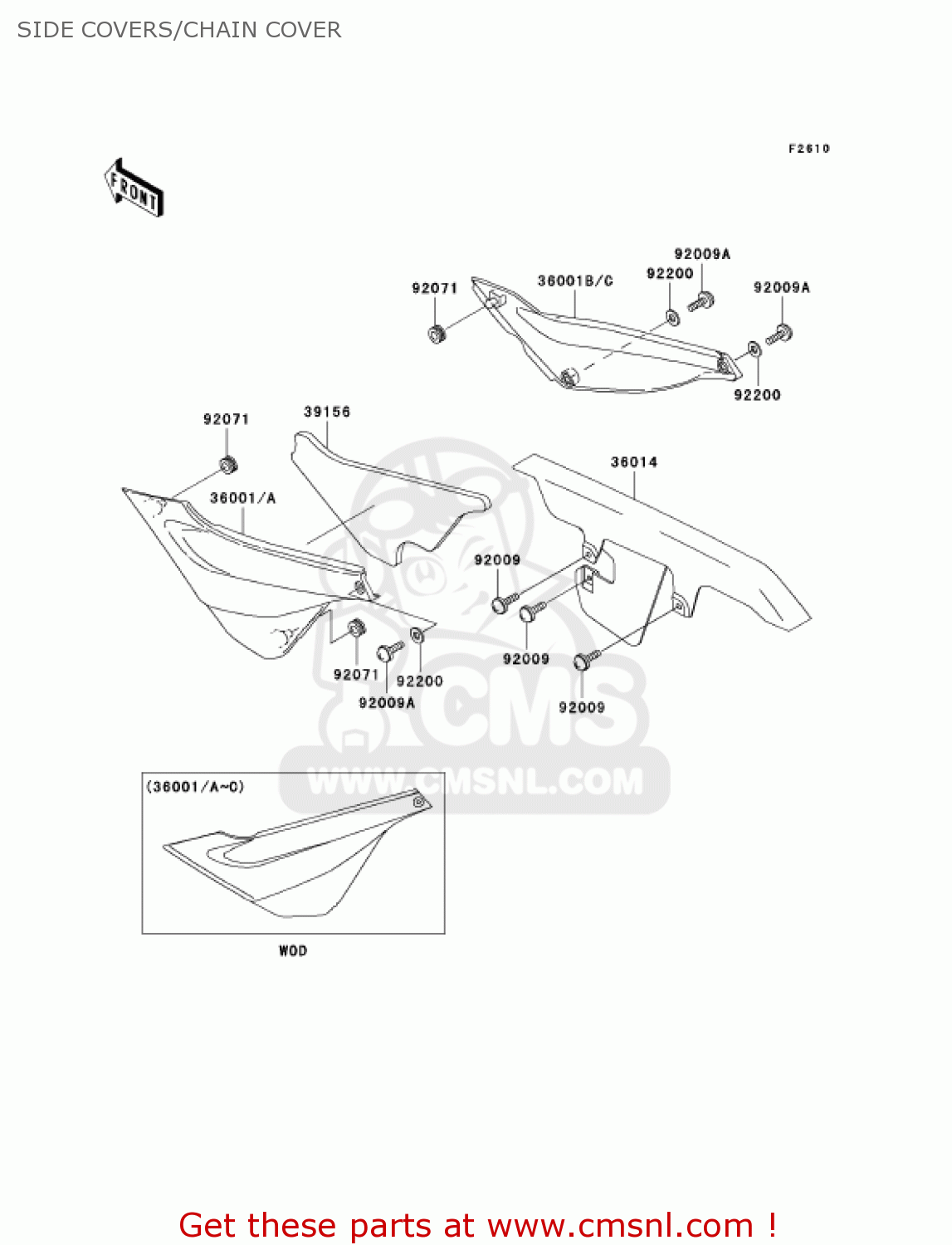

Side covers/chain cover diagram KL250G6 SUPER SHERPA 2002 USA CANADA

SIDE COVERS/CHAIN COVER KL250G6 SUPER SHERPA 2002 USA CANADA

SIDE COVERS/CHAIN COVER KL250G6 SUPER SHERPA 2002 USA CANADA

prices are in EUR

ref

part #

description

quantity

36001A

36001158068
ref: 36001A

COVER-SIDE,LH,O.GREEN

€ 59.50

36001C

36001158168
ref: 36001C

COVER-SIDE,RH,O.GREEN

€ 62.50

36014

360141209
ref: 36014

CASE-CHAIN

€ 65.00

39156

391561580
ref: 39156

PAD,SIDE COVER,LH

€ 17.00

92009

920091661
ref: 92009

SCREW

€ 2.50

92009A

920091806
ref: 92009A

SCREW

€ 2.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92200

922001388
ref: 92200

WASHER,6.5X14X1

€ 1.50
