GEAR CHANGE DRUM/SHIFT FORK(S)

KL250G6 SUPER SHERPA 2002 USA CANADA

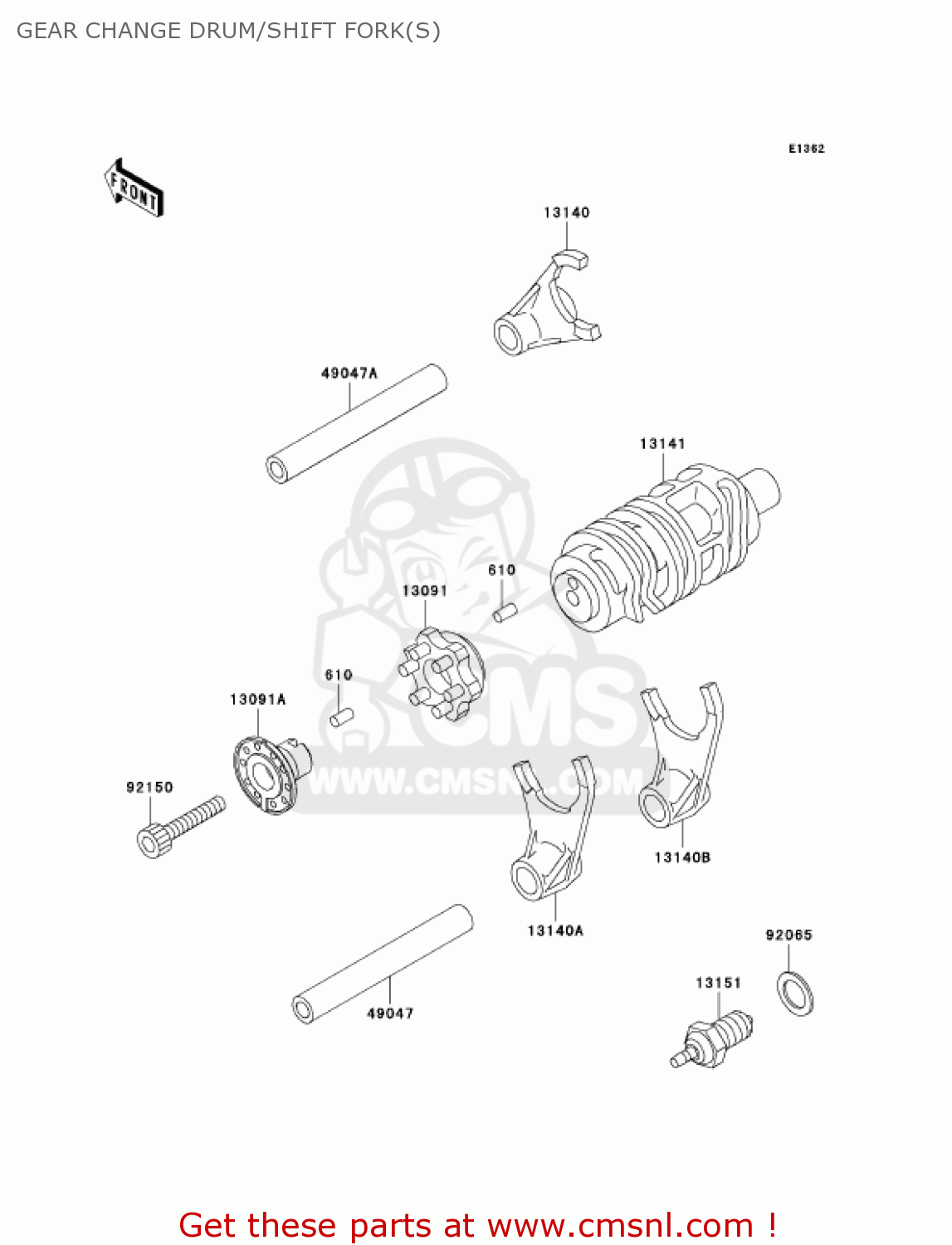

Gear change drum/shift fork(s) diagram KL250G6 SUPER SHERPA 2002 USA CANADA

prices are in EUR

ref

part #

description

quantity

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

13091

130911856
ref: 13091

HOLDER,CHANGE DRUM

€ 31.00

13091A

130911862
ref: 13091A

HOLDER,CHANGE DRUM

€ 23.50

13140

131401216
ref: 13140

FORK-SHIFT,5TH&TOP

€ 65.50

13140A

131401217
ref: 13140A

FORK-SHIFT,2ND&3RD

€ 65.50

13140B

131401218
ref: 13140B

FORK-SHIFT,LOW&4TH

€ 65.50

13141

131411198
ref: 13141

DRUM-CHANGE

€ 95.50

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

49047

490471056
ref: 49047

ROD-SHIFT,L=106.7

€ 16.00

49047A

490471057
ref: 49047A

ROD-SHIFT,L=71.7

€ 12.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92150

921501484
ref: 92150

BOLT,SOCKET,6X35

€ 4.00
