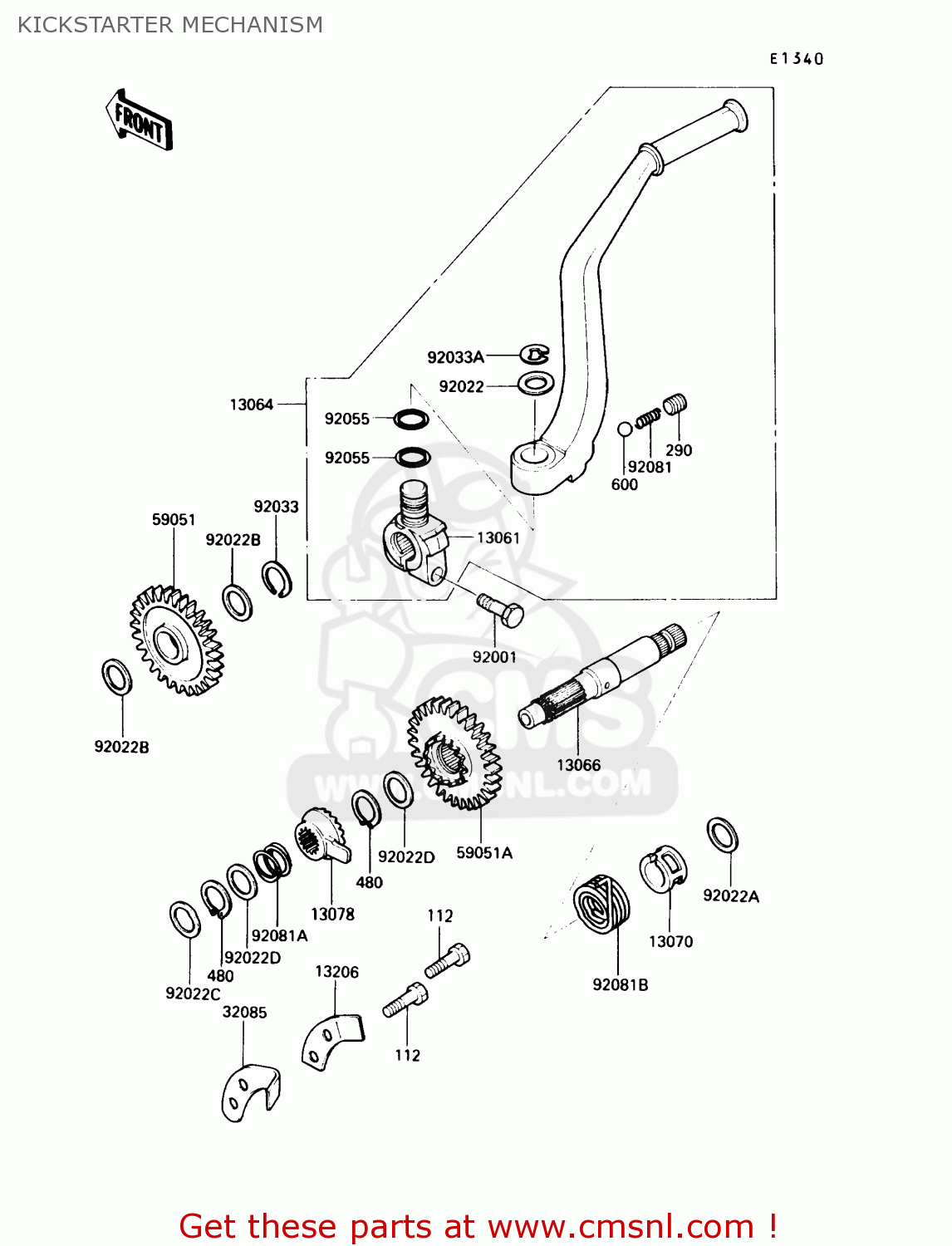

KICKSTARTER MECHANISM

ref

part #

description

quantity

112

112G0618
ref: 112

BOLT-UPSET

€ 0.50

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

13061

130611131
ref: 13061

BOSS,KICK PEDAL

€ 57.50

13064

130641121
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 153.50

13066

130661059
ref: 13066

SHAFT-KICK

€ 82.50

13070

13070011
ref: 13070

GUIDE,KICKSTARTER SPR

€ 6.50

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

132061054
ref: 13206

GUIDE-KICK

€ 7.50

32085

320851027
ref: 32085

STOPPER,KICKSTARTER

€ 5.50

59051

590511120
ref: 59051

GEAR-SPUR,IDLE,28T

€ 135.50

59051A

590511131
ref: 59051A

GEAR-SPUR,KICK,29T

€ 109.50

92001

920011042
ref: 92001

BOLT,HEX HEAD,8X28

€ 4.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

92022118
ref: 92022A

WASHER,18.5X23X1.2

€ 3.00

92022B

920221614
ref: 92022B

WASHER,17.3X25X0.5

€ 2.50

92022C

92022269
ref: 92022C

WASHER,PLAIN

€ 1.00

92022D

92022315
ref: 92022D

WASHER, 16.8X22X0.5

€ 4.00

92033

92033032
ref: 92033

CIRCLIP

€ 3.00

92033A

920331166
ref: 92033A

RING-SNAP,10MM

€ 2.50

92055

92055061
ref: 92055

RING-O,10X1.5

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

92082003
ref: 92081B

SPRING-KICKSTARTER

€ 19.00
