CLUTCH
KL250D9 KLR250 1992 USA CALIFORNIA CANADA

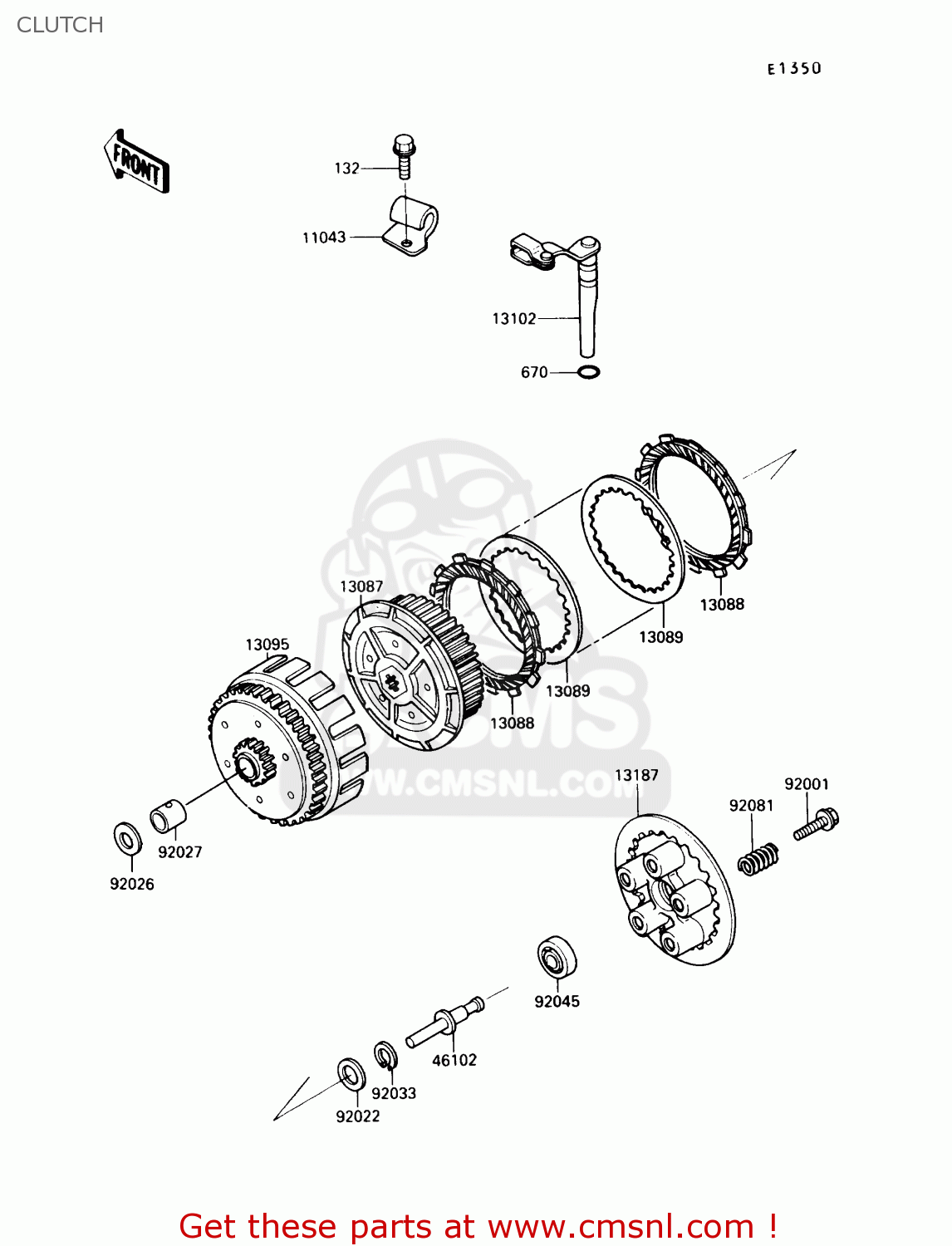

Clutch diagram KL250D9 KLR250 1992 USA CALIFORNIA CANADA
CLUTCH KL250D9 KLR250 1992 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
11043
110431931
ref: 11043
BRACKET,CLUTCH CABLE
€ 4.00
13087
130871063
ref: 13087
HUB-CLUTCH
€ 115.50
13088
130881057
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
130891073
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.50
13095
130951126
ref: 13095
HOUSING-COMP-CLUTCH
€ 403.50
13102
131021064
ref: 13102
RELEASE-COMP-CLUTCH
€ 47.00
13187
131871059
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 50.00
46102
461021033
ref: 46102
ROD,CLUTCH PUSH
€ 16.00
92001
920011576
ref: 92001
BOLT,CLUTCH SPRING,6X
€ 1.00
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92026
920261233
ref: 92026
SPACER,20.1X34X4
€ 7.50
92027
920271808
ref: 92027
COLLAR
€ 19.50
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92081
92081083
ref: 92081
SPRING-CLUTCH
€ 5.50
