FRONT HUB
KL250D9 KLR250 1992 NORWAY

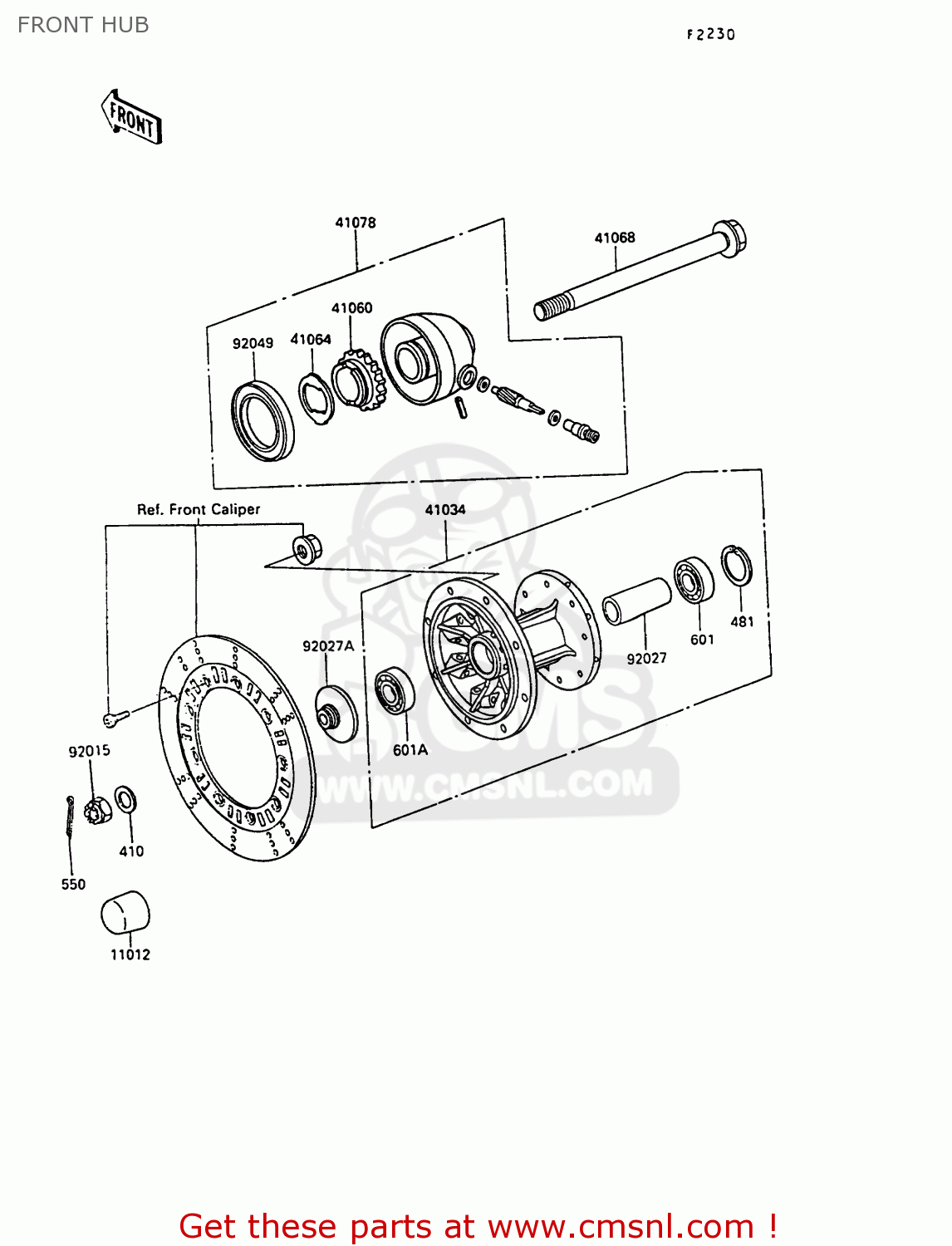

Front hub diagram KL250D9 KLR250 1992 NORWAY
FRONT HUB KL250D9 KLR250 1992 NORWAY
×
prices are in EUR
ref
part #
description
quantity
410
410B1400
ref: 410
410B1400
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
601A
601B6203UG
ref: 601A
BEARING-BALL,#6203UG
€ 35.50
41034
410341128
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 437.00
41060
410601101
ref: 41060
GEAR-METER SCREW,24T
€ 27.00
41064
410641051
ref: 41064
RECEIVER-SPEEDOMETER
€ 8.00
41068
410681236
ref: 41068
AXLE,FR
€ 55.00
41078
410781051
ref: 41078
CASE-ASSY-METER GEAR
€ 103.00
92015
42045020
ref: 92015
NUT,14MM
€ 6.50
92027
920271683
ref: 92027
COLLAR,FRONT BRAKE DR
€ 28.50
92027A
920271864
ref: 92027A
COLLAR
€ 21.50
92049
920491172
ref: 92049
SEAL-OIL,METER GEAR C
€ 12.00
