CAMSHAFT/TENSIONER
KL250D9 KLR250 1992 NORWAY

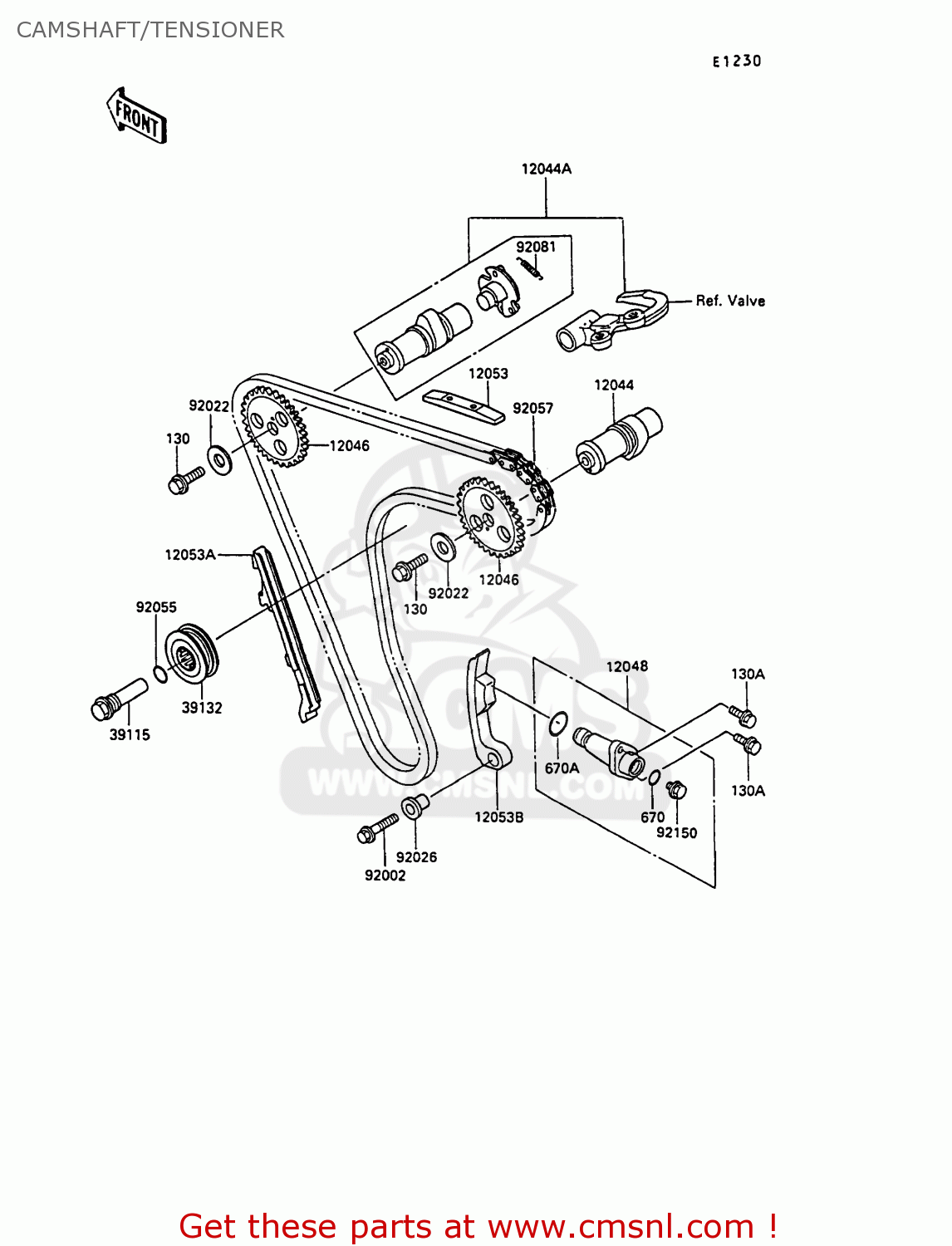

Camshaft/tensioner diagram KL250D9 KLR250 1992 NORWAY
CAMSHAFT/TENSIONER KL250D9 KLR250 1992 NORWAY
×
prices are in EUR
ref
part #
description
quantity
130
130G1025
ref: 130
BOLT-FLANGED 10X25
€ 3.00
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
670
670D2010
ref: 670
O RING,10MM
€ 1.00
670A
670D2021
ref: 670A
O RING,21MM
€ 5.00
12044
120441181
ref: 12044
CAMSHAFT-VALVE,INTAKE
€ 212.50
12044A
120445007
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
€ 212.50
12046
120461063
ref: 12046
SPROCKET,42T
€ 51.50
12048
120481066
ref: 12048
TENSIONER-ASSY,CAM CH
€ 116.00
12053
120531107
ref: 12053
GUIDE-CHAIN,UPP
€ 12.50
12053A
120531125
ref: 12053A
GUIDE-CHAIN,FR
€ 39.50
12053B
120531126
ref: 12053B
GUIDE-CHAIN,RR
€ 72.50
39115
391151051
ref: 39115
SHAFT-IDLER
€ 21.50
39132
391321052
ref: 39132
SPROCKET-ASSY-IDLER
€ 56.50
92002
920021478
ref: 92002
BOLT
€ 4.00
92022
920221365
ref: 92022
WASHER,10X22X3
€ 3.50
92026
920261231
ref: 92026
SPACER,L=28.3
€ 13.00
92055
920551141
ref: 92055
RING-O,ID=13.8
€ 2.50
92057
920571170
ref: 92057
CHAIN,CAMSHAFT,79RH20
€ 32.00
92081
920811626
ref: 92081
SPRING,DECOMPRESSOR
€ 3.00
92150
921501380
ref: 92150
BOLT TENSIONER
€ 4.50
