SUSPENSION

KL250D7 KLR250 1990 USA CALIFORNIA CANADA

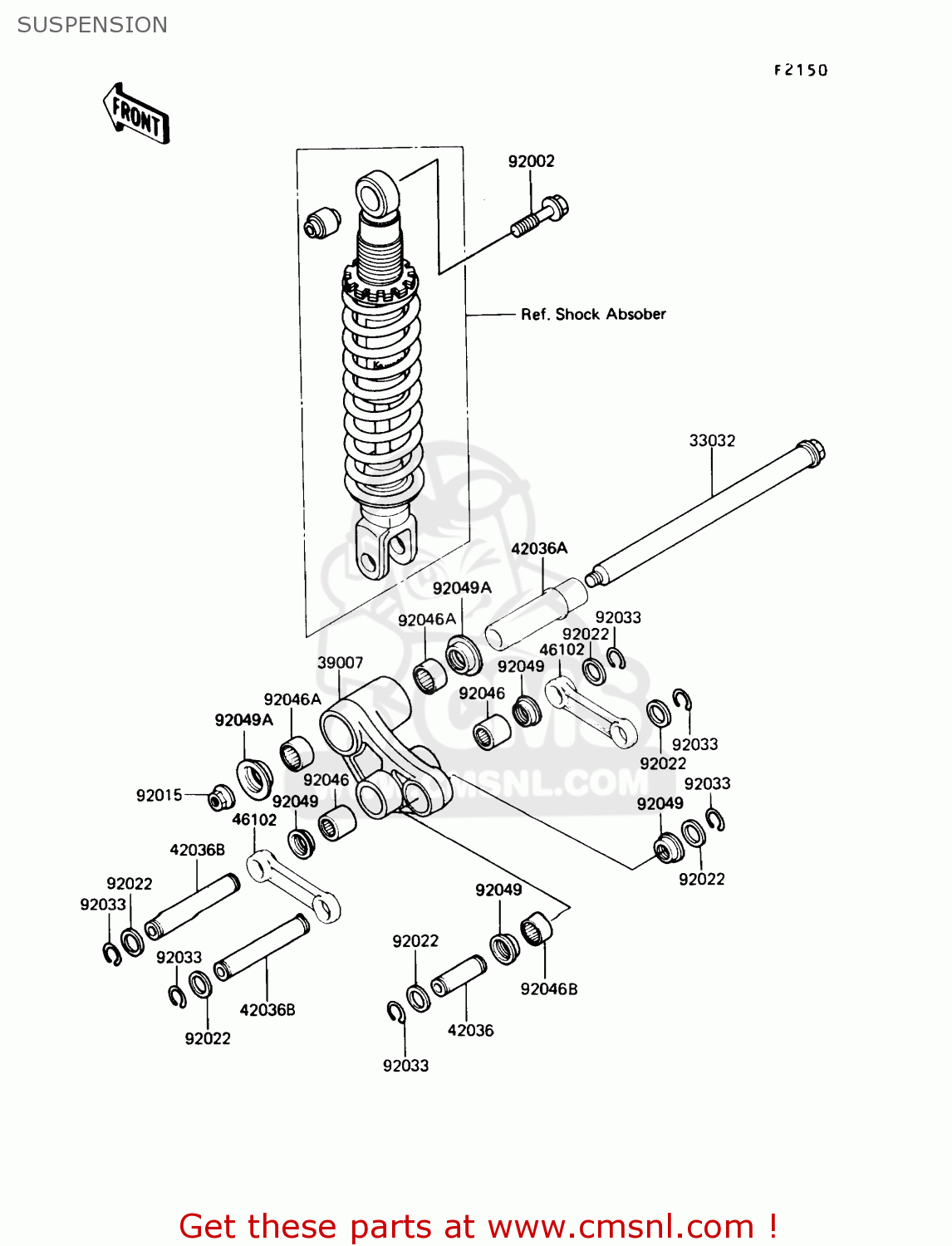

Suspension diagram KL250D7 KLR250 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

33032

330321111
ref: 33032

SHAFT-SWING ARM

€ 91.50

39007

390071059
ref: 39007

ARM-SUSP,UNI TRAK

€ 261.00

42036

420361133
ref: 42036

SLEEVE,L=59

€ 19.50

42036A

420361136
ref: 42036A

SLEEVE,L=100

€ 53.50

42036B

420361140
ref: 42036B

SLEEVE,L=121

€ 40.00

46102

461021129
ref: 46102

ROD,UNI TRAK

€ 80.50

92002

920021130
ref: 92002

BOLT,12X55

€ 7.00

92015

920151459
ref: 92015

NUT,14MM

€ 6.50

92022

920221547
ref: 92022

WASHER,20.1X28X1

€ 2.50

92033

920331168
ref: 92033

RING-SNAP,18.3MM

€ 3.00

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461111
ref: 92046A

BEARING-NEEDLE,BM2817

€ 21.50

92046B

920461112
ref: 92046B

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92049A

920491181
ref: 92049A

SEAL-OIL

€ 7.50

SUSPENSION

all assemblies
