OIL PUMP
KL250D7 KLR250 1990 USA CALIFORNIA CANADA

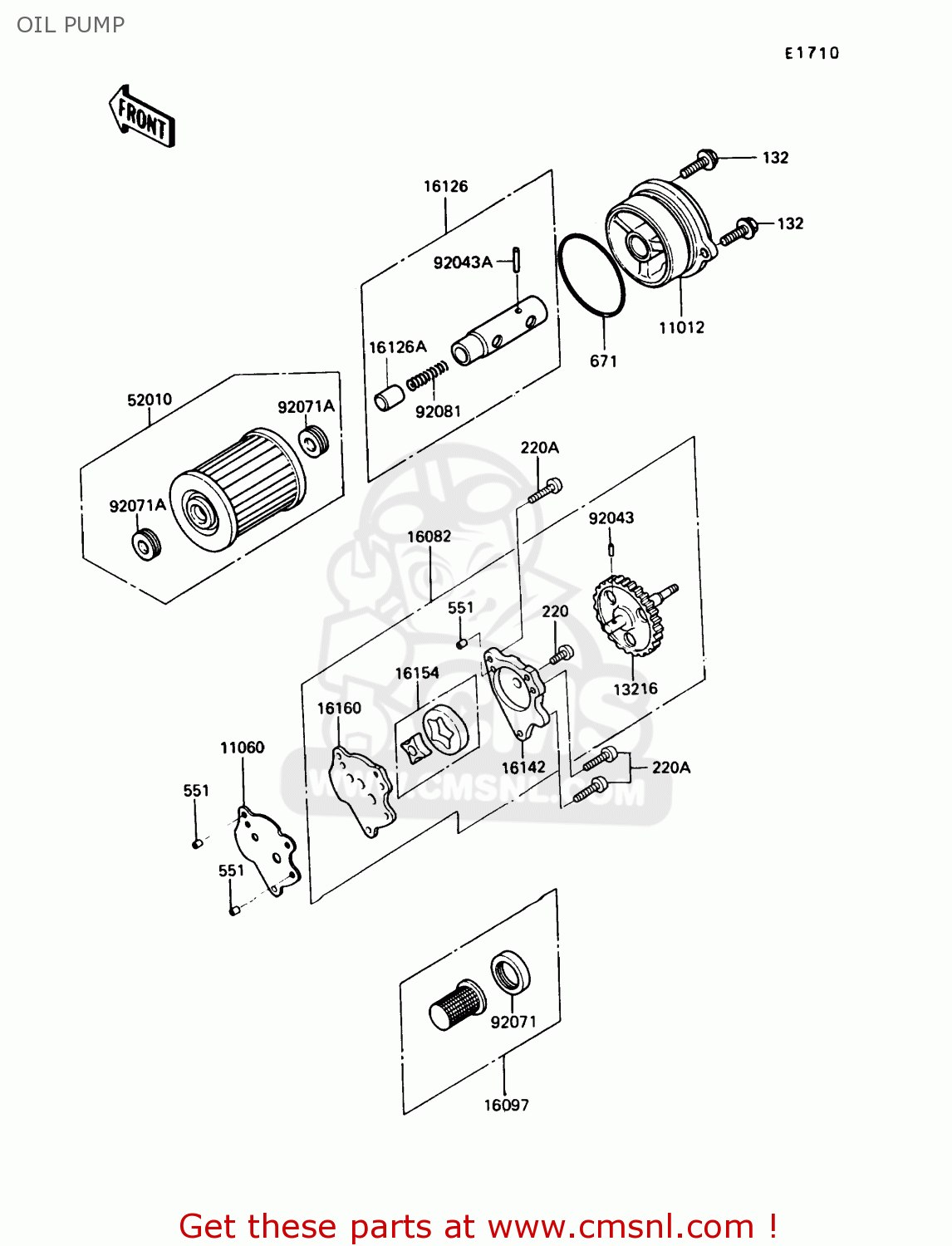

Oil pump diagram KL250D7 KLR250 1990 USA CALIFORNIA CANADA
OIL PUMP KL250D7 KLR250 1990 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
551
551A0608
ref: 551
PIN,DOWEL,6X8
€ 2.50
671
671B2555
ref: 671
O RING,55MM
€ 4.00
11012
110121538
ref: 11012
CAP,OIL FILTER
€ 40.00
11060
110601130
ref: 11060
GASKET,OIL PUMP (NAS)
€ 4.00
13216
132161092
ref: 13216
GEAR-COMP,OIL PUMP
€ 82.00
16082
160821080
ref: 16082
PUMP-ASSY-OIL
€ 144.50
16097
160971001
ref: 16097
STRAINER ASSY,OIL
€ 5.00
16126
16156002
ref: 16126
PISTON-ASSY,VALVE,BY-
€ 15.50
16126A
92136002
ref: 16126A
PISTON
€ 3.00
16142
161421056
ref: 16142
COVER-PUMP
€ 34.50
16154
161541008
ref: 16154
ROTOR-PUMP,OIL
€ 24.50
16160
161601069
ref: 16160
BODY,OIL PUMP
€ 22.00
52010
16099004
ref: 52010
FILTER, OIL
€ 5.50
92043
92042041
ref: 92043
PIN,DOWEL
€ 4.50
92043A
92043123
ref: 92043A
SPRING PIN
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
€ 3.50
92071A
92071101
ref: 92071A
GROMMET, OIL FILTER
€ 3.50
92081
92081043
ref: 92081
SPRING, PISTON
€ 3.50
