FUEL TANK(KL250-D7)
KL250D7 KLR250 1990 EUROPE UK FG GR

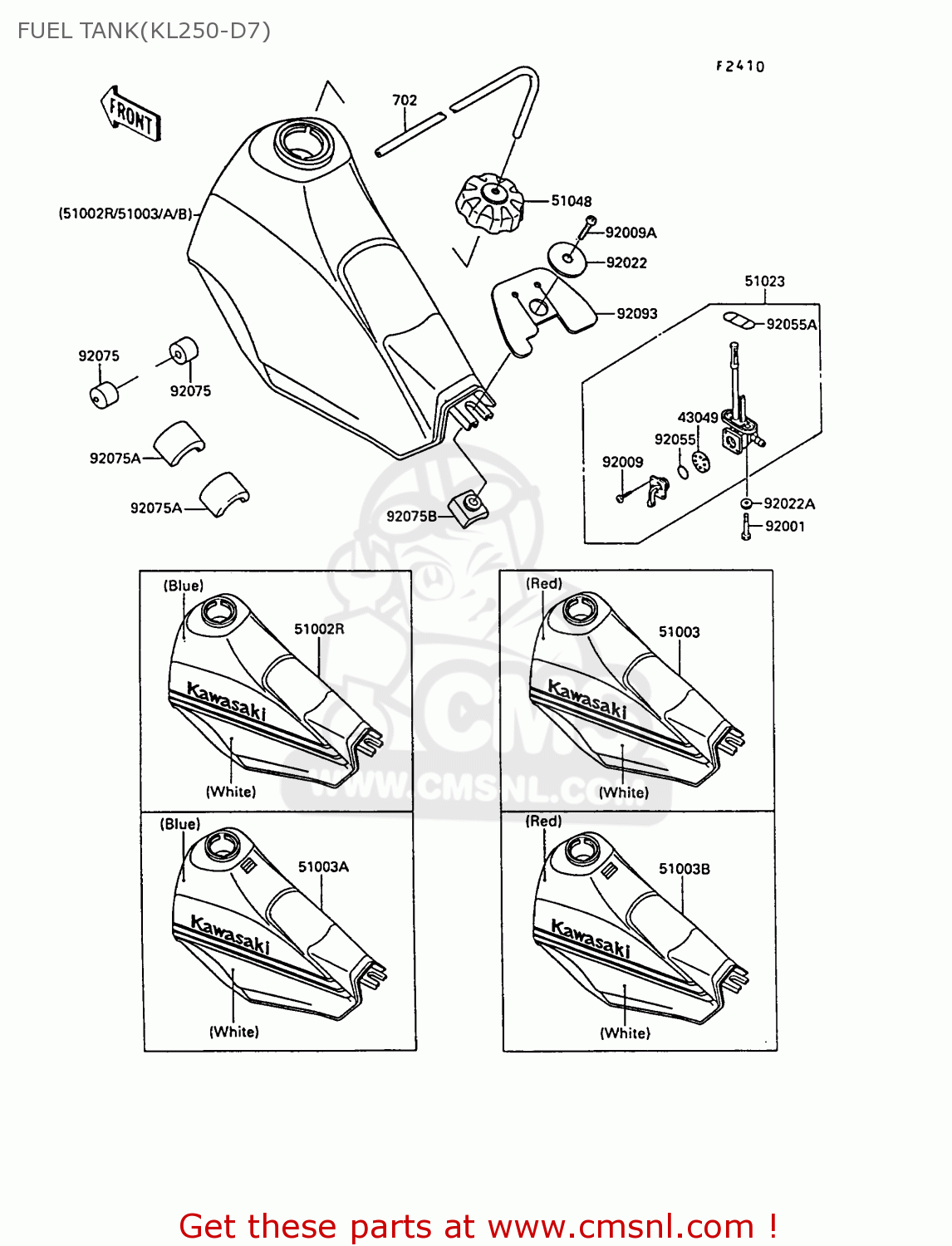

Fuel tank(kl250-d7) diagram KL250D7 KLR250 1990 EUROPE UK FG GR
FUEL TANK(KL250-D7) KL250D7 KLR250 1990 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51002R
510025473CT
ref: 51002R
EUGRUK
TANK-COMP-FUEL(SUB)
€ 388.50
51003
510035042P6
ref: 51003
EUGR
TANK-COMP-FUEL,RED/WH
€ 388.50
51003A
510035049CT
ref: 51003A
FG
TANK-COMP-FUEL(SUB)
€ 388.50
51003B
510035050P6
ref: 51003B
FG
TANK-COMP-FUEL(SUB)
€ 388.50
51023
510231112
ref: 51023
TAP-ASSY,FUEL
€ 117.50
51048
510481063
ref: 51048
CAP-ASSY-TANK,FUEL
€ 51.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92009A
920091294
ref: 92009A
SCREW,6X8
€ 2.50
92022
920221659
ref: 92022
WASHER,6.2X38X1.2
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
€ 3.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
702
702A05400
ref: 702
TUBE,RUBBER,5X400
€ 7.50
92075A
920751382
ref: 92075A
DAMPER,FUEL TANK
€ 20.50
92075B
920751638
ref: 92075B
DAMPER,FUEL TANK
€ 6.50
92093
920931182
ref: 92093
SEAL,FUEL TANK
€ 20.00
