FRAME FITTING
KL250D7 KLR250 1990 EUROPE UK FG GR

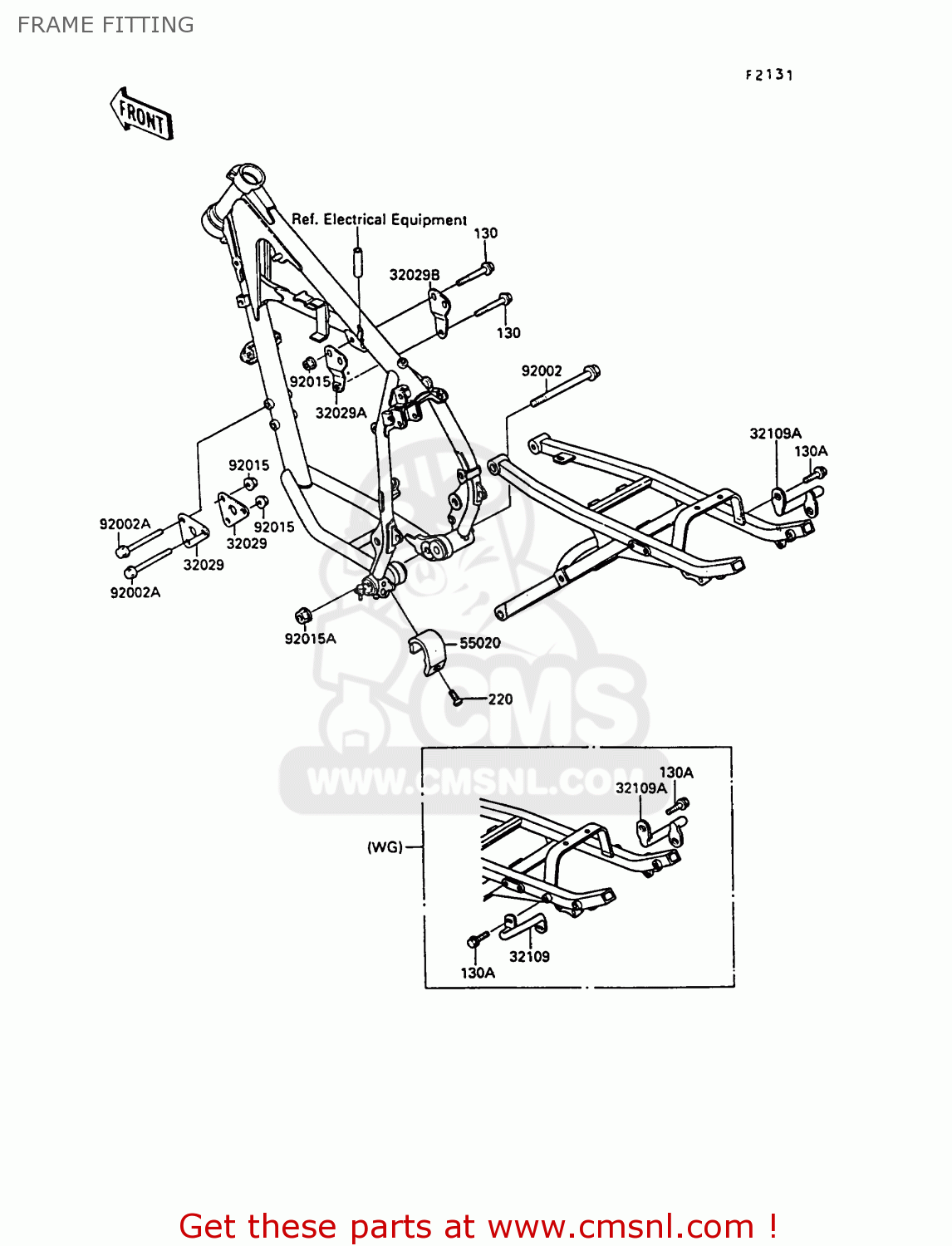

Frame fitting diagram KL250D7 KLR250 1990 EUROPE UK FG GR
FRAME FITTING KL250D7 KLR250 1990 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
130
130H0845
ref: 130
BOLT-FLANGED
€ 1.00
130A
130N0812
ref: 130A
EUGRUK
BOLT-FLANGED
€ 3.00
130A
130N0812
ref: 130A
FG
BOLT-FLANGED
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
32029
320291352
ref: 32029
BRACKET-ENGINE,FR
€ 13.50
32029A
320291353
ref: 32029A
BRACKET-ENGINE,LH
€ 22.00
32029B
320291354
ref: 32029B
BRACKET-ENGINE,RH
€ 14.50
32109
321091120
ref: 32109
FG
GRIP-FRAME,LH
€ 20.50
32109A
321091121
ref: 32109A
GRIP-FRAME,RH
€ 20.50
55020
550201174
ref: 55020
GUARD,CHAIN
€ 25.00
92002
920021347
ref: 92002
BOLT,FLANGED,12X135
€ 13.50
92002A
920021349
ref: 92002A
BOLT,FLANGED,8X70
€ 3.50
92015
920151406
ref: 92015
NUT,8MM
€ 3.00
92015A
920151426
ref: 92015A
NUT,12MM
€ 4.50
