GEAR CHANGE MECHANISM

KL250D18 KLR250 2001 USA CALIFORNIA

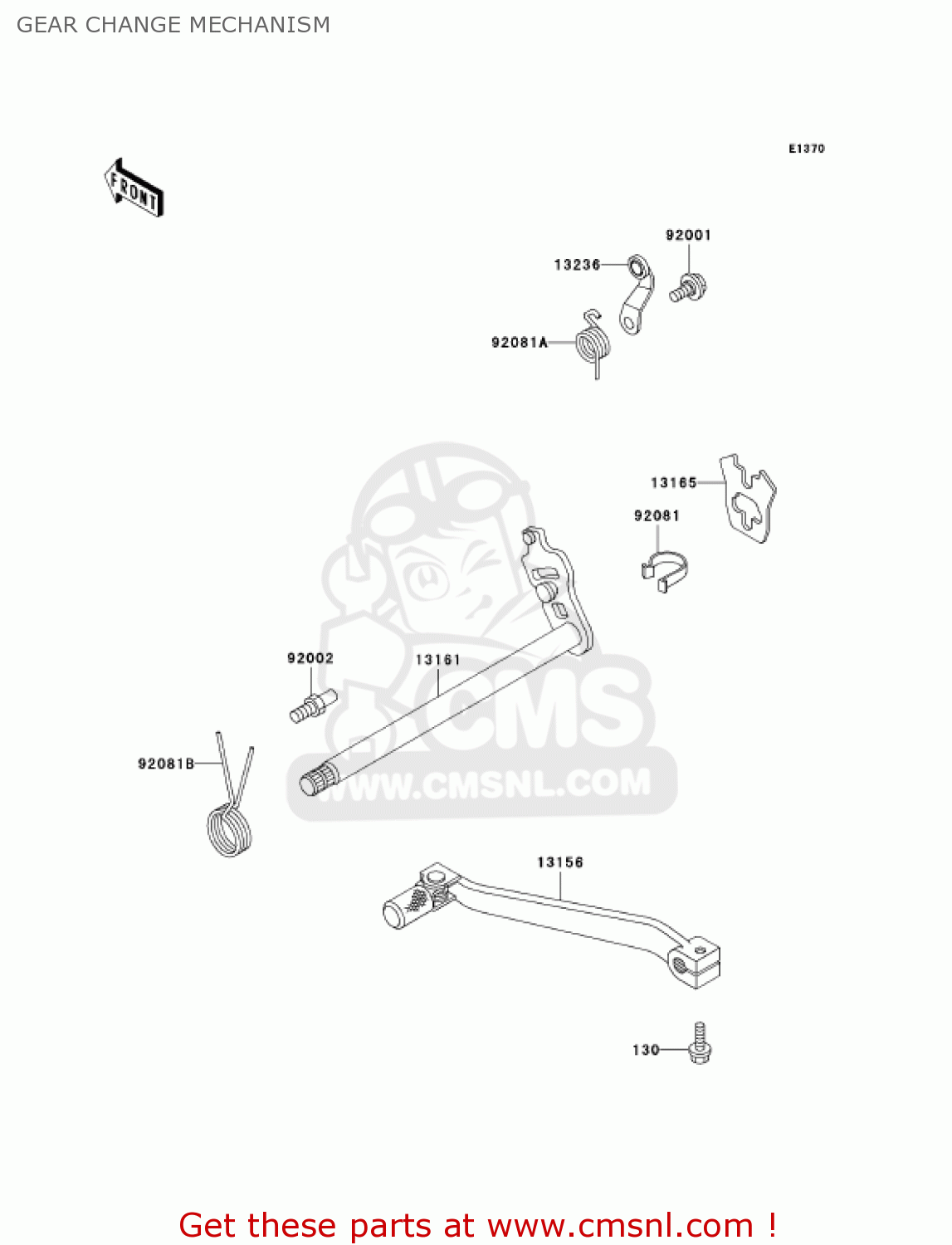

Gear change mechanism diagram KL250D18 KLR250 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

13156

131561178
ref: 13156

LEVER-CHANGE,PEDAL

€ 59.00

13161

131611115
ref: 13161

LEVER-COMP-CHANGE SHA

€ 59.50

13165

131651034
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13236

132361117
ref: 13236

LEVER-COMP,CHANGE DRU

€ 5.50

92001

920011715
ref: 92001

BOLT

€ 7.00

92002

920021355
ref: 92002

BOLT,RETURN SPRING

€ 7.50

92081

920811493
ref: 92081

SPRING,CHANGE LEVER

€ 4.50

92081A

920811496
ref: 92081A

SPRING

€ 6.00

92081B

920811750
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.50

GEAR CHANGE MECHANISM

all assemblies
