CHASSIS ELECTRICAL EQUIPMENT

KL250D18 KLR250 2001 USA CALIFORNIA

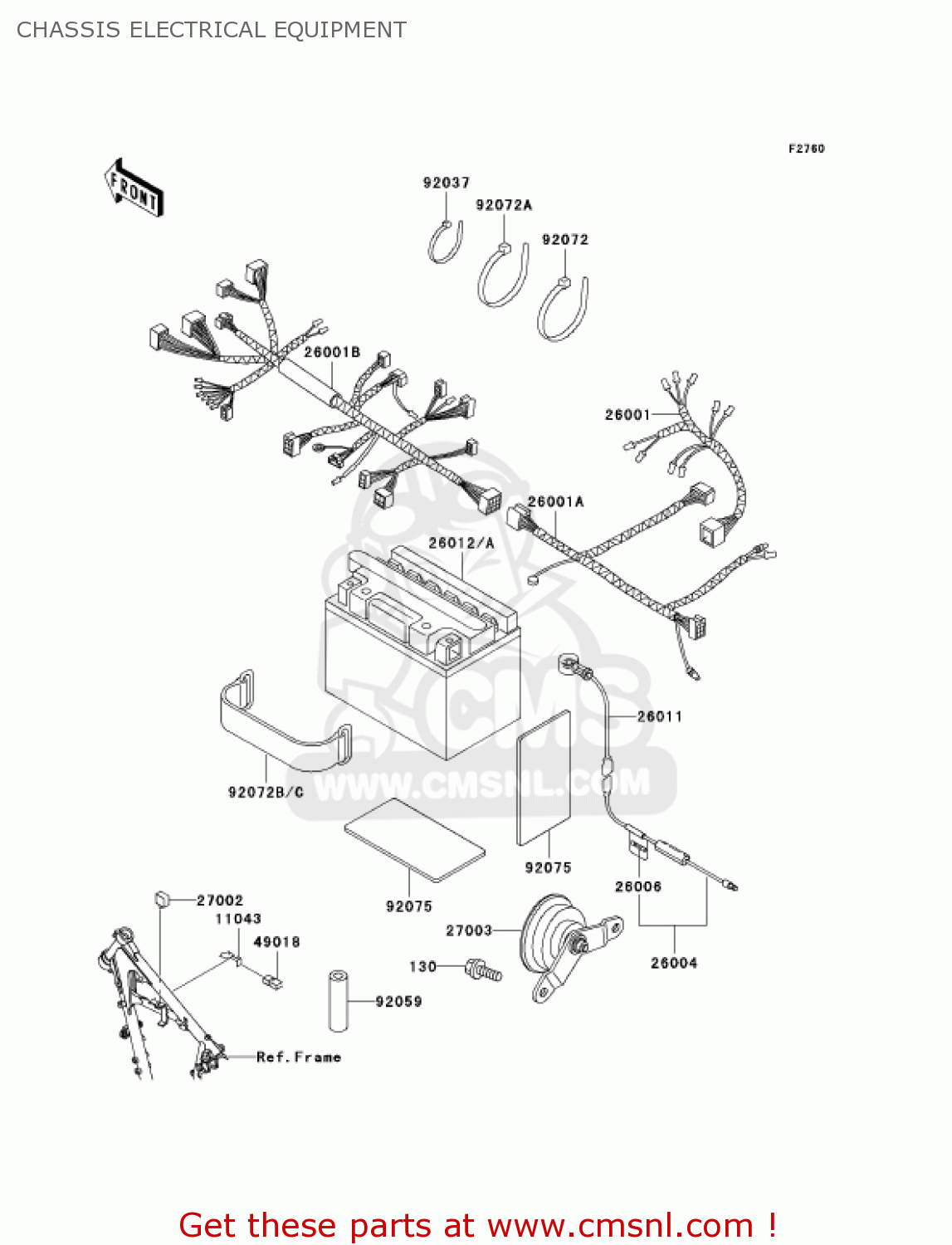

Chassis electrical equipment diagram KL250D18 KLR250 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

11043

110431376
ref: 11043

BRACKET,DIODE

€ 10.00

26001

260011586
ref: 26001

HARNESS,RR

€ 29.00

26001A

260011677
ref: 26001A

HARNESS,CNT

€ 47.50

26001B

260011698
ref: 26001B

HARNESS,FR(MAIN)

€ 173.50

26004

260041055
ref: 26004

FUSE-ASSY

€ 10.50

26006

260061056
ref: 26006

FUSE,20A,L=30

€ 3.00

26011

260111264
ref: 26011

WIRE-LEAD,BATTERY

€ 7.50

26012A

260121363
ref: 26012A

BATTERY,FB4L-A,12V 4A

€ 99.50

27002

270021053
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031306
ref: 27003

HORN

€ 50.00

49018

490181052
ref: 49018

DIODE

€ 35.50

92037

920371483
ref: 92037

CLAMP,BAND,L=120

€ 8.50

92059

920591799
ref: 92059

TUBE,8X9X38

€ 2.00

92072

92072032
ref: 92072

BAND,LONG

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92072B

920721173
ref: 92072B

BAND,BATTERY,L=105

€ 9.50

92075

920751582
ref: 92075

DAMPER,MAT

€ 5.50
