TURN SIGNALS

KL250D16 KLR250 1999 USA CALIFORNIA CANADA

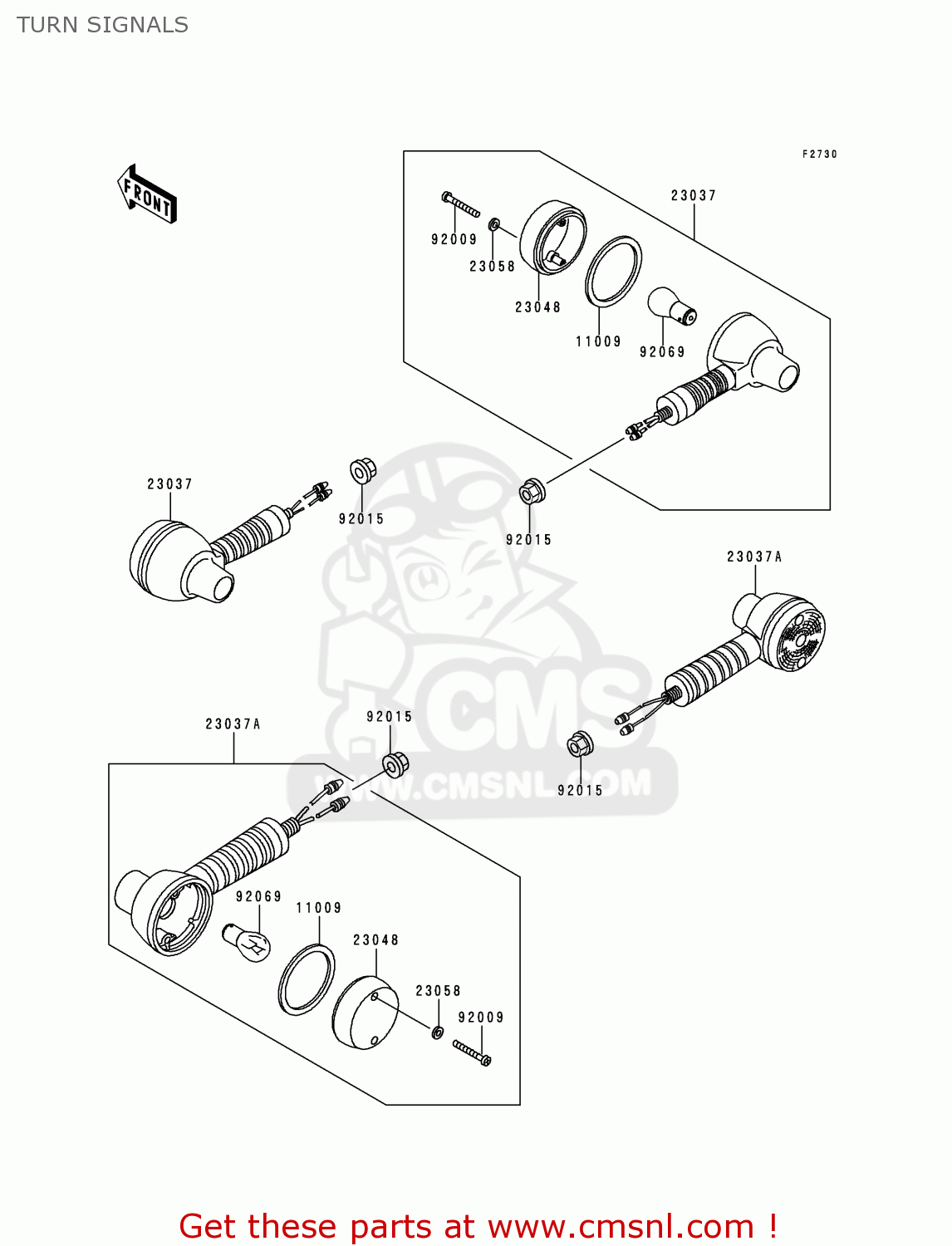

Turn signals diagram KL250D16 KLR250 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091128
ref: 11009

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

23037

230371201
ref: 23037

LAMP-ASSY-SIGNAL,FR

€ 49.50

23037A

230371213
ref: 23037A

SIGNAL LAMP ASSEMBLY

€ 48.00

23048

230481076
ref: 23048

LENS-SIGNAL LAMP

€ 10.50

23058

23058002
ref: 23058

WASHER,PLAIN,4MM

€ 2.00

92009

920091056
ref: 92009

SCREW,TAPPING

€ 2.50

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92069

92069055
ref: 92069

BULB 12V 32CP

€ 4.50
