FRONT HUB

KL250D16 KLR250 1999 USA CALIFORNIA CANADA

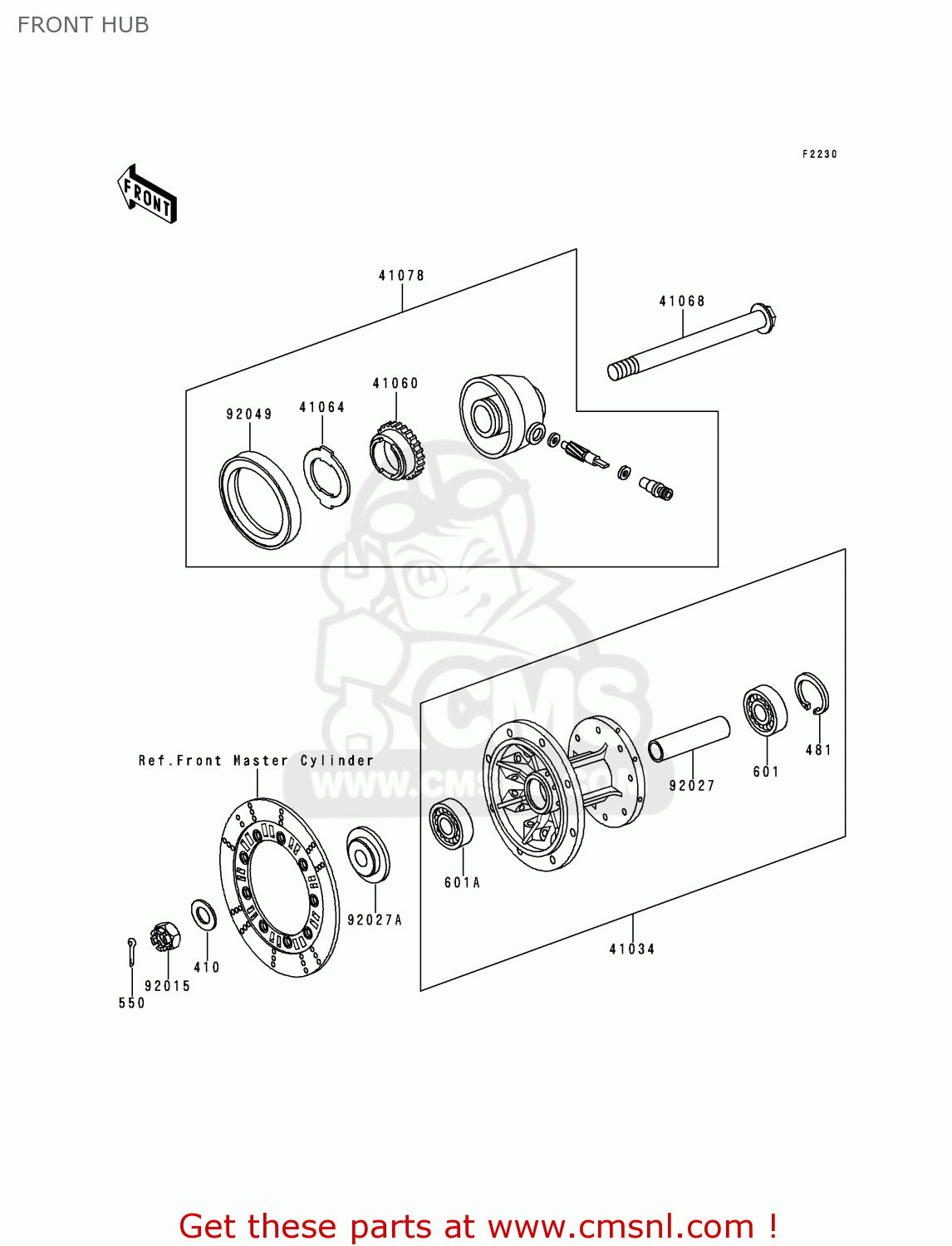

Front hub diagram KL250D16 KLR250 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410B1400
ref: 410

410B1400

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6202UG
ref: 601

BEARING BALL

€ 19.50

601A

601B6203UG
ref: 601A

BEARING-BALL,#6203UG

€ 35.50

41034

410341128
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 437.00

41060

410601101
ref: 41060

GEAR-METER SCREW,24T

€ 27.00

41064

410641051
ref: 41064

RECEIVER-SPEEDOMETER

€ 8.00

41068

410681236
ref: 41068

AXLE,FR

€ 55.00

41078

410781051
ref: 41078

CASE-ASSY-METER GEAR

€ 103.00

92015

920151765
ref: 92015

NUT,CASTLE,14MM

€ 6.50

92027

920271683
ref: 92027

COLLAR,FRONT BRAKE DR

€ 28.50

92027A

920271864
ref: 92027A

COLLAR

€ 21.50

92049

920491172
ref: 92049

SEAL-OIL,METER GEAR C

€ 12.00

FRONT HUB
