HEADLIGHT(S)

KH125M9 2004 CANADA

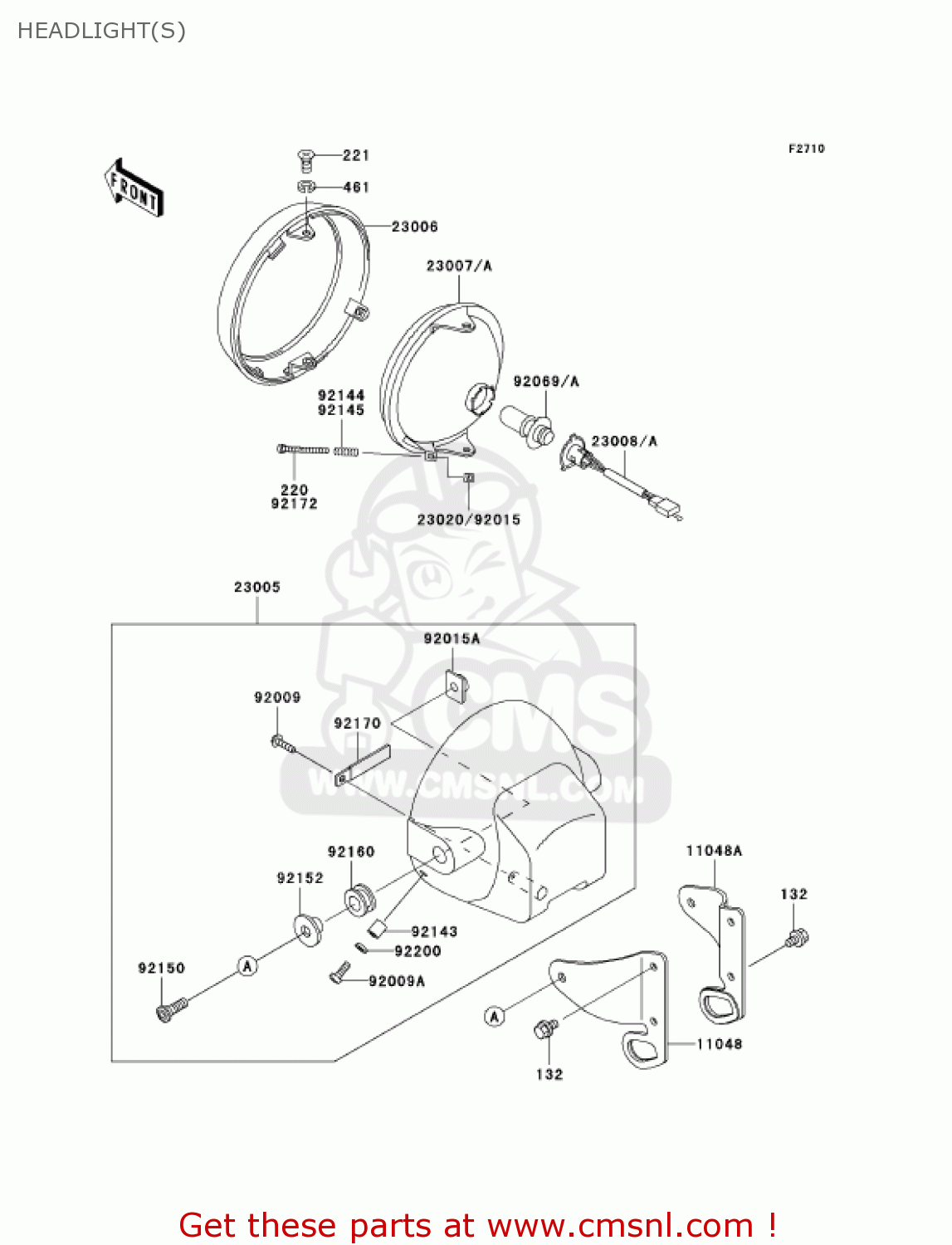

Headlight(s) diagram KH125M9 2004 CANADA

HEADLIGHT(S) KH125M9 2004 CANADA
HEADLIGHT(S) KH125M9 2004 CANADA
HEADLIGHT(S) KH125M9 2004 CANADA
prices are in EUR
ref
part #
description
quantity
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
221
221B0510
ref: 221
SCREW-CNTSNK HD,5X10
221B0510
€ 2.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11048
110481301
ref: 11048
HEADLAMP BRACKET,LH
€ 5.50
11048A
110481302
ref: 11048A
HEADLAMP BRACKET,RH
€ 5.50
23005
2300511828X
ref: 23005
BODY-COMP-HEAD LAMP,S.SILVER
€ 21.00
23006
230061067
ref: 23006
LAMP RIM
€ 20.00
23007
230070005
ref: 23007
LENS-COMP,HEAD LAMP
€ 27.00
23008
230080002
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 5.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
920091158
€ 2.50
92009A
920091464
ref: 92009A
SCREW
920091464
€ 2.50
92015A
920151922
ref: 92015A
NUT
€ 1.00
92069A
920691123
ref: 92069A
BULB,12V 32/32W
€ 6.50
92143
921431674
ref: 92143
COLLAR
€ 1.00
92145
921450011
ref: 92145
SPRING,FOCUS ADJUST
€ 0.50
92150
921501890
ref: 92150
BOLT,SOCKET
€ 1.00
92152
921521270
ref: 92152
COLLAR
€ 1.50
92160
921601464
ref: 92160
HEADLAMP GROMMET
€ 1.00
92170
921701688
ref: 92170
PLATE
€ 0.50
92172
921720014
ref: 92172
SCREW
€ 0.50
92200
922001335
ref: 92200
WASHER
€ 0.50
