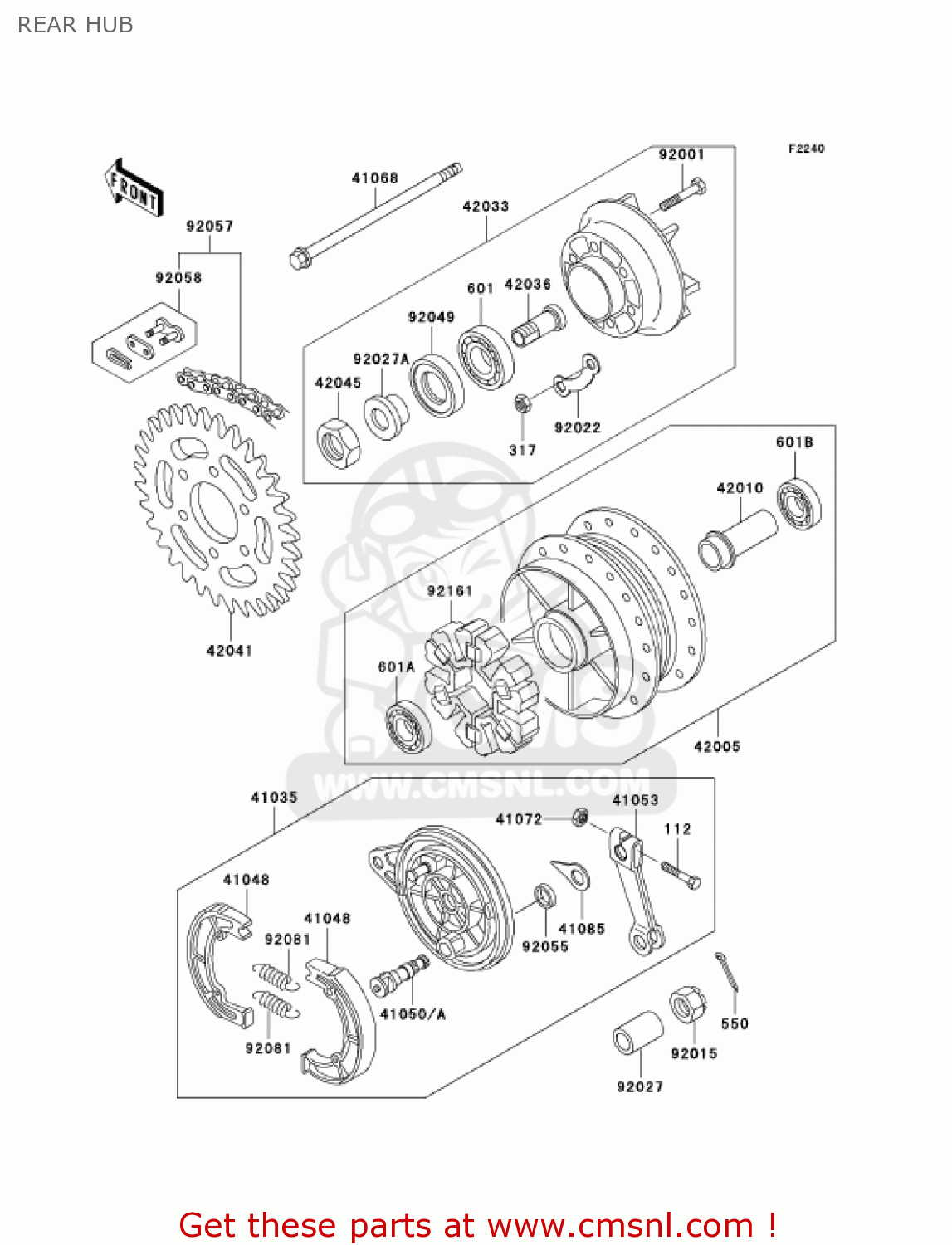

REAR HUB

ref

part #

description

quantity

112

112V0630
ref: 112

BOLT-UPSET,6X30

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004G
ref: 601

BALL,BEARING

€ 10.50

601A

601B6202G
ref: 601A

BRG,BALL,#6202C3

€ 14.50

601B

601B6302UG
ref: 601B

BEARING BALL

€ 29.00

41035

410351320
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 67.00

41048

410481087
ref: 41048

SHOE-BRAKE (NAS)

€ 15.00

41050A

410501096
ref: 41050A

CAM-BRAKE

€ 21.00

41053

410531024
ref: 41053

LEVER-BRAKE CAM

€ 23.50

41068

410681369
ref: 41068

AXLE-REAR

€ 7.50

41072

41072007
ref: 41072

NUT,6MM

€ 2.50

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42005

42005057
ref: 42005

DRUM-ASSY,RR

€ 454.00

42010

42010037
ref: 42010

COLLAR,L=57

€ 9.00

42033

420331104
ref: 42033

COUPLING-ASSY,RR

€ 39.50

42036

420361043
ref: 42036

SLEEVE,L=635

€ 23.50

42041

420411452
ref: 42041

SPROCKET-HUB,38T

€ 9.50

42045

42045015
ref: 42045

NUT,20MM

€ 4.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

920151765
ref: 92015

NUT,CASTLE,14MM

€ 6.50

92022

920221269
ref: 92022

WASHER,LOCK

€ 6.00

92027

920271482
ref: 92027

COLLAR,RR AXLE

€ 13.00

92027A

920271729
ref: 92027A

COLLAR,20X26X15.5

€ 13.00

92049

920491487
ref: 92049

SEAL-OIL,KCY26X42X8

€ 5.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571476
ref: 92057

CHAIN,DRIVE

€ 34.00

92058

920581078
ref: 92058

JOINT-CHAIN,DRIVE

€ 1.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92161

921611327
ref: 92161

DAMPER,REAR HUB SHOCK

€ 7.50
