Genuine KH Kawasaki Parts delivered quickly!


HEADLIGHT(S)

KH125M8 2003 CANADA

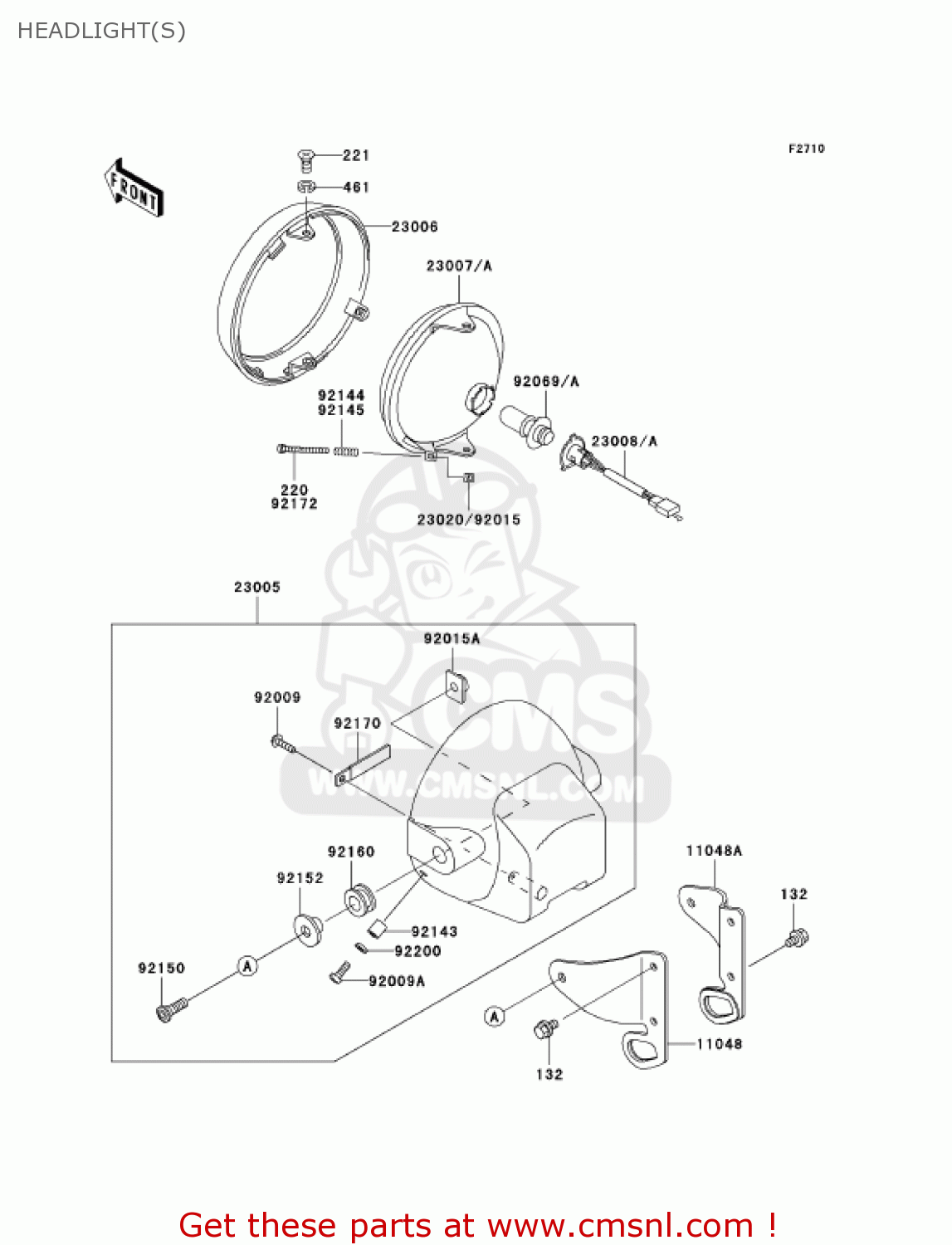

Headlight(s) diagram KH125M8 2003 CANADA

HEADLIGHT(S) KH125M8 2003 CANADA
HEADLIGHT(S) KH125M8 2003 CANADA
HEADLIGHT(S) KH125M8 2003 CANADA
prices are in EUR
ref
part #
description
quantity
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
221
221B0510
ref: 221
SCREW-CNTSNK HD,5X10
221B0510
€ 2.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11048
110481301
ref: 11048
HEADLAMP BRACKET,LH
€ 5.50
11048A
110481302
ref: 11048A
HEADLAMP BRACKET,RH
€ 5.50
23005
2300511828X
ref: 23005
BODY-COMP-HEAD LAMP,S.SILVER
€ 21.00
23006
230061067
ref: 23006
LAMP RIM
€ 20.00
23007
230070005
ref: 23007
LENS-COMP,HEAD LAMP
€ 27.00
23008
230080002
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 5.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
920091158
€ 2.50
92009A
920091464
ref: 92009A
SCREW
920091464
€ 2.50
92015A
920151922
ref: 92015A
NUT
€ 1.00
92069A
920691123
ref: 92069A
BULB,12V 32/32W
€ 6.50
92143
921431674
ref: 92143
COLLAR
€ 1.00
92145
921450011
ref: 92145
SPRING,FOCUS ADJUST
€ 0.50
92150
921501890
ref: 92150
BOLT,SOCKET
€ 1.00
92152
921521270
ref: 92152
COLLAR
€ 1.50
92160
921601464
ref: 92160
HEADLAMP GROMMET
€ 1.00
92170
921701688
ref: 92170
PLATE
€ 0.50
92172
921720014
ref: 92172
SCREW
€ 0.50
92200
922001335
ref: 92200
WASHER
€ 0.50
