CHASSIS ELECTRICAL EQUIPMENT

KH125K9 1994 UNITED KINGDOM

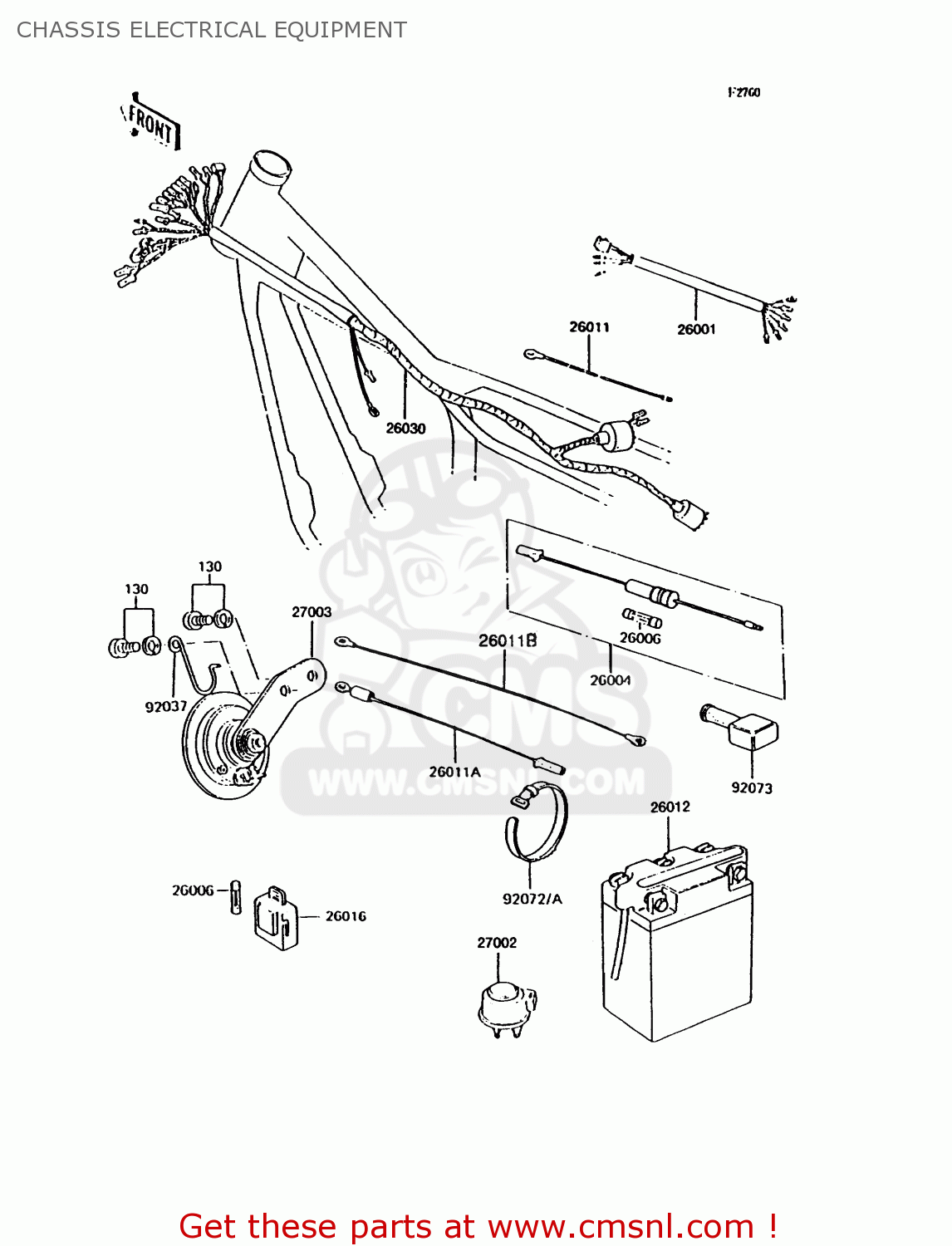

Chassis electrical equipment diagram KH125K9 1994 UNITED KINGDOM

CHASSIS ELECTRICAL EQUIPMENT KH125K9 1994 UNITED KINGDOM
CHASSIS ELECTRICAL EQUIPMENT KH125K9 1994 UNITED KINGDOM
CHASSIS ELECTRICAL EQUIPMENT KH125K9 1994 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
130
130D0612
ref: 130
BOLT,FLANGED
€ 0.50
26001
260011428
ref: 26001
HARNESS,RR
€ 14.00
26004
26004017
ref: 26004
FUSE-ASSY
€ 10.00
26006
26006003
ref: 26006
FUSE 10A
26006003
€ 3.00
26011
26011063
ref: 26011
WIRE-LEAD,L=185
26011063
€ 5.00
26011A
260111527
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 5.50
26011B
260111528
ref: 26011B
WIRE-LEAD,BATTERY(-)
€ 7.50
26012
260121276
ref: 26012
BATTERY,YB3L-B,12V 3A
€ 51.00
26016
26016004
ref: 26016
HOLDER,SPARE FUSE
26016004
€ 7.50
26030
260301145
ref: 26030
HARNESS,MAIN
€ 107.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031358
ref: 27003
HORN
€ 39.00
92037
920371371
ref: 92037
CLAMP,HARNESS
€ 3.50
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
92072031
€ 3.00
92073
92073019
ref: 92073
CAP,BATTERY
€ 4.50
