CARBURETOR
KH125K9 1994 UNITED KINGDOM

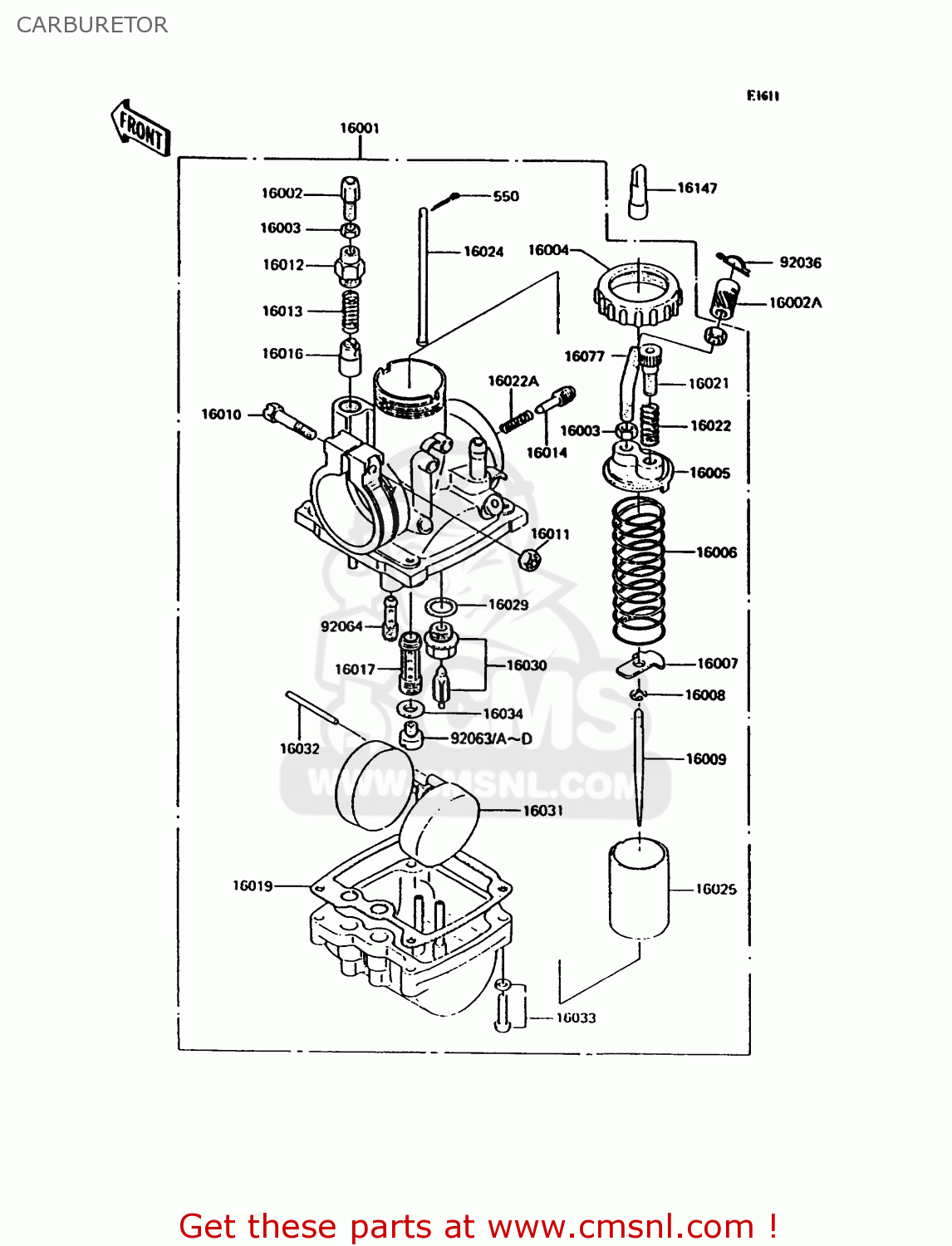

Carburetor diagram KH125K9 1994 UNITED KINGDOM
CARBURETOR KH125K9 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
16001
160011633
ref: 16001
CARBURETOR
€ 418.50
16002
16002002
ref: 16002
ADJUSTER-CABLE,STARTE
€ 8.00
16002A
16002007
ref: 16002A
ADJUSTER-CABLE,THROTT
€ 7.50
16003
16003006
ref: 16003
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004010
ref: 16004
CAP-CHAMBER,MIXING
€ 13.50
16005
16005005
ref: 16005
TOP-CHAMBER,MIXING
€ 12.50
16006
16006013
ref: 16006
SPRING-THROTTLE VALVE
€ 10.00
16007
16007020
ref: 16007
SEAT-SPRING,THROTTLE
€ 7.00
16008
16008010
ref: 16008
CLAMP,E-TYPE
€ 5.00
16009
160091127
ref: 16009
NEEDLE-JET,4DJ45
€ 20.00
16010
16010004
ref: 16010
SCREW-CLAMP
€ 3.50
16011
16011002
ref: 16011
NUT 6MM
€ 0.50
16012
16012004
ref: 16012
CAP-STARTER PLUNGER
€ 7.50
16013
16013003
ref: 16013
SPRING-STARTER PLUNG
€ 4.00
16014
16014002
ref: 16014
SCREW-PILOT AIR
€ 11.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 20.00
16017
160171118
ref: 16017
JET-NEEDLE,P-3
€ 25.50
16019
16019021
ref: 16019
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
16021
16021002
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16022
16022005
ref: 16022
SPRING-THR STOP SCREW
€ 5.50
16022A
16022007
ref: 16022A
SPRING-THR STOP SCREW
€ 5.50
16024
16024006
ref: 16024
ROD-THROTTLE VLV STOP
€ 5.50
16025
16025057
ref: 16025
VALVE-THROTTLE,CA2.0
€ 80.50
16029
16029002
ref: 16029
WASHER-VALVE SEAT
€ 2.50
16030
16030001
ref: 16030
VALVE-FLOAT,#2.0
€ 40.50
16031
16031015
ref: 16031
FLOAT
€ 40.50
16032
16032003
ref: 16032
FLOAT PIN
€ 4.00
16033
16033012
ref: 16033
SCREW-FLOAT CHAMBER
€ 1.00
16034
16034001
ref: 16034
WASHER-MAIN JET
€ 2.50
16077
16077008
ref: 16077
GUIDE,CABLE
€ 6.50
16147
16147001
ref: 16147
PLUG,12X40
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92063
92063068
ref: 92063
MAIN JET,#92.5R
€ 15.50
92063A
92063069
ref: 92063A
MAIN JET,#95R
€ 10.00
92063B
92063093
ref: 92063B
MAIN JET,#85R
€ 10.50
92063C
92063094
ref: 92063C
JET-MAIN,#87.5R
€ 11.00
550
550D1210
ref: 550
PIN-COTTER,1.2X10
€ 1.50
92063D
92063095
ref: 92063D
MAIN JET,#90R
€ 10.50
92064
92064021
ref: 92064
PILOT JET #20 ISO
€ 12.00
