TAIL LAMP
KH125K3 1984 USA

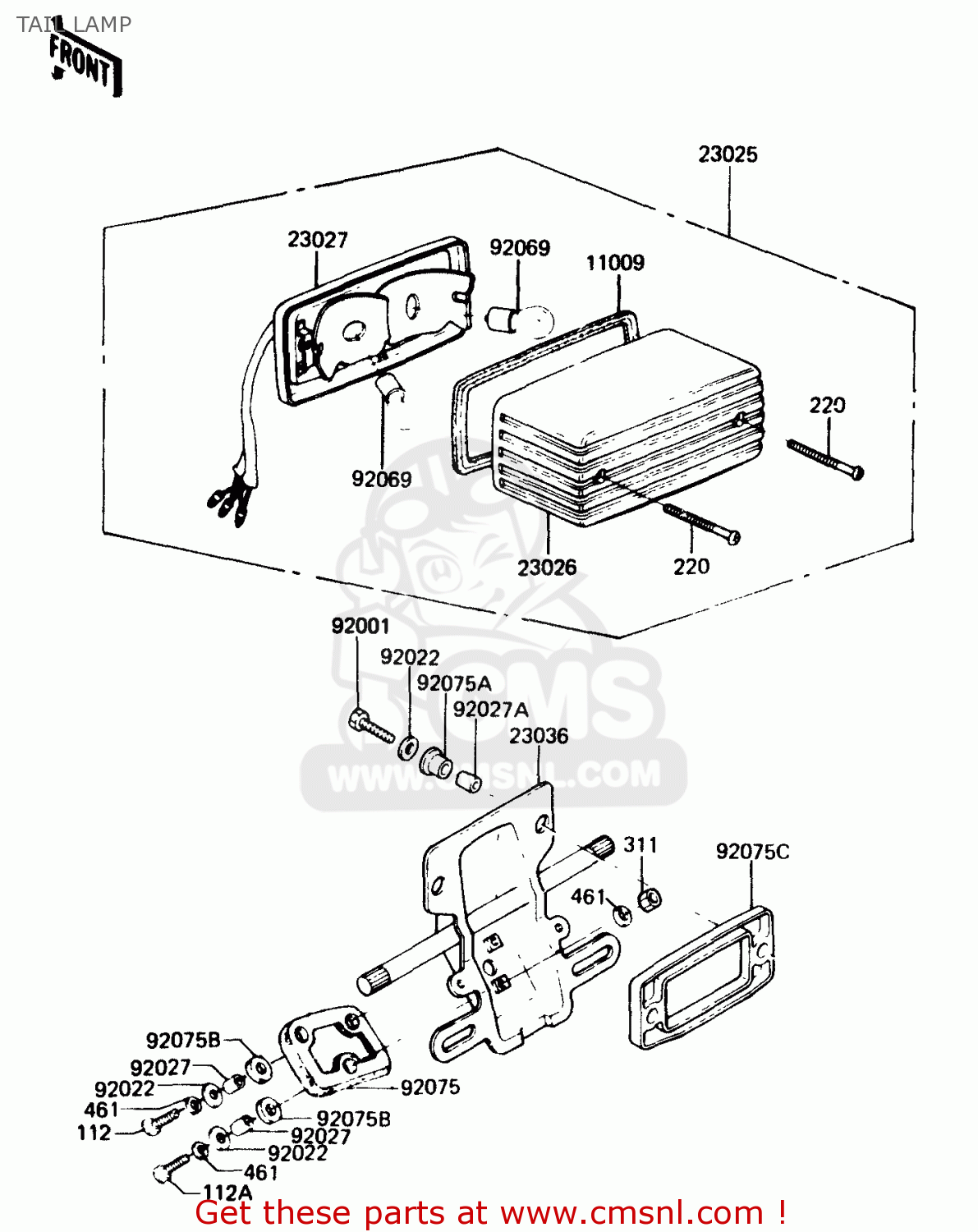

Tail lamp diagram KH125K3 1984 USA
TAIL LAMP KH125K3 1984 USA
×
prices are in EUR
ref
part #
description
quantity
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
23025
230251045
ref: 23025
LAMP-TAIL
€ 151.50
23026
230261017
ref: 23026
LENS,TAIL LAMP
€ 126.00
23027
230271014
ref: 23027
BODY-COMP-TAIL LAMP
€ 92.50
23036
230361050
ref: 23036
BRACKET-TAIL LAMP
€ 160.50
92001
92132001
ref: 92001
BOLT
€ 2.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92027A
92027169
ref: 92027A
COLLAR,6.8X10X16
€ 4.00
92069
92069062
ref: 92069
BULB,6V 21/5W
€ 12.50
92075
35039004
ref: 92075
DAMPER,TAIL LAMP
€ 12.00
92075A
920751092
ref: 92075A
DAMPER
€ 7.50
92075B
92075121
ref: 92075B
DAMPER,FENDER
€ 2.50
92075C
920751282
ref: 92075C
DAMPER,TAIL LAMP
€ 13.00
112
112B0625
ref: 112
BOLT-UPSET,6X25
€ 4.00
112A
112B0630
ref: 112A
AOLT-HEX,HEAD,6X30
€ 1.00
220
220C0465
ref: 220
SCREW-PAN-CROS
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
