SWING ARM/SHOCK ABSORBER
KH125K3 1984 USA

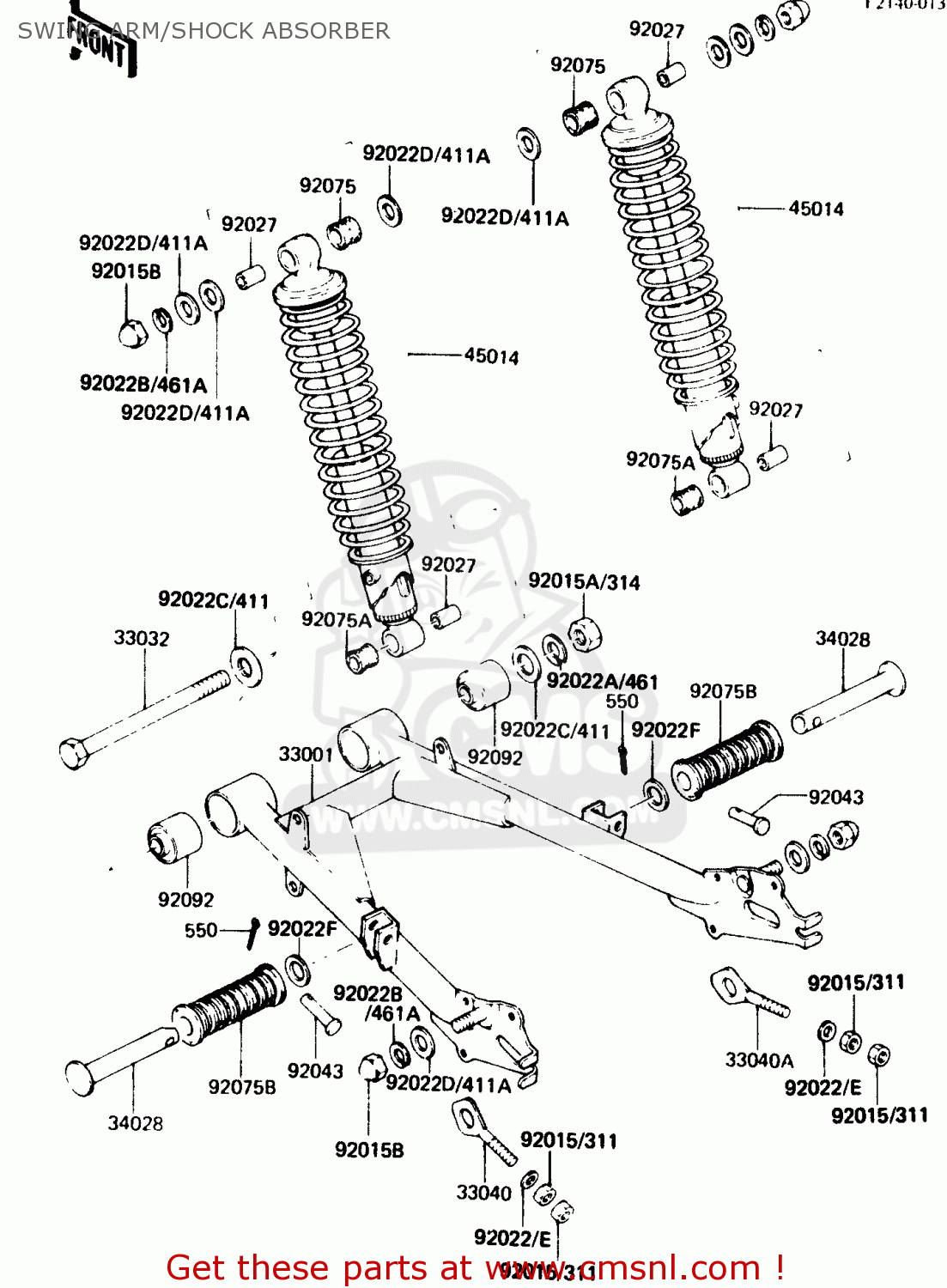

Swing arm/shock absorber diagram KH125K3 1984 USA
SWING ARM/SHOCK ABSORBER KH125K3 1984 USA
×
prices are in EUR
ref
part #
description
quantity
33001
330011110
ref: 33001
ARM-COMP-SWING
€ 262.00
33032
33032039
ref: 33032
SHAFT-SWING ARM
€ 25.50
33040
330401017
ref: 33040
ADJUSTER-CHAIN,LH
€ 6.00
33040A
330401018
ref: 33040A
ADJUSTER-CHAIN,RH
€ 6.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
45014
450141189
ref: 45014
SHOCKABSORBER
€ 193.00
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92015A
920151416
ref: 92015A
NUT,10MM
€ 3.00
92015B
92020014
ref: 92015B
NUT,CAP,12MM
€ 6.50
92022A
920221540
ref: 92022A
WASHER,SPRING,10MM
€ 2.50
92022B
920221541
ref: 92022B
WASHER,SPRING,12MM
€ 0.50
92022C
920221558
ref: 92022C
WASHER,10.5X22X1.6
€ 2.00
92022D
920221563
ref: 92022D
WASHER
€ 0.50
92022E
920221565
ref: 92022E
WASHER,6.5X16X2
€ 2.50
92022F
92022199
ref: 92022F
WASHER,20X30X2.3
€ 5.00
92027
920271031
ref: 92027
COLLAR,SHOCKABSORBER
€ 3.00
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92075
920751019
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751020
ref: 92075A
DAMPER,SHOCKABSORBER
€ 3.00
92075B
92076020
ref: 92075B
DAMPER
€ 7.50
92092
92092006
ref: 92092
BUSHING-RUBBER,SWING
€ 11.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
