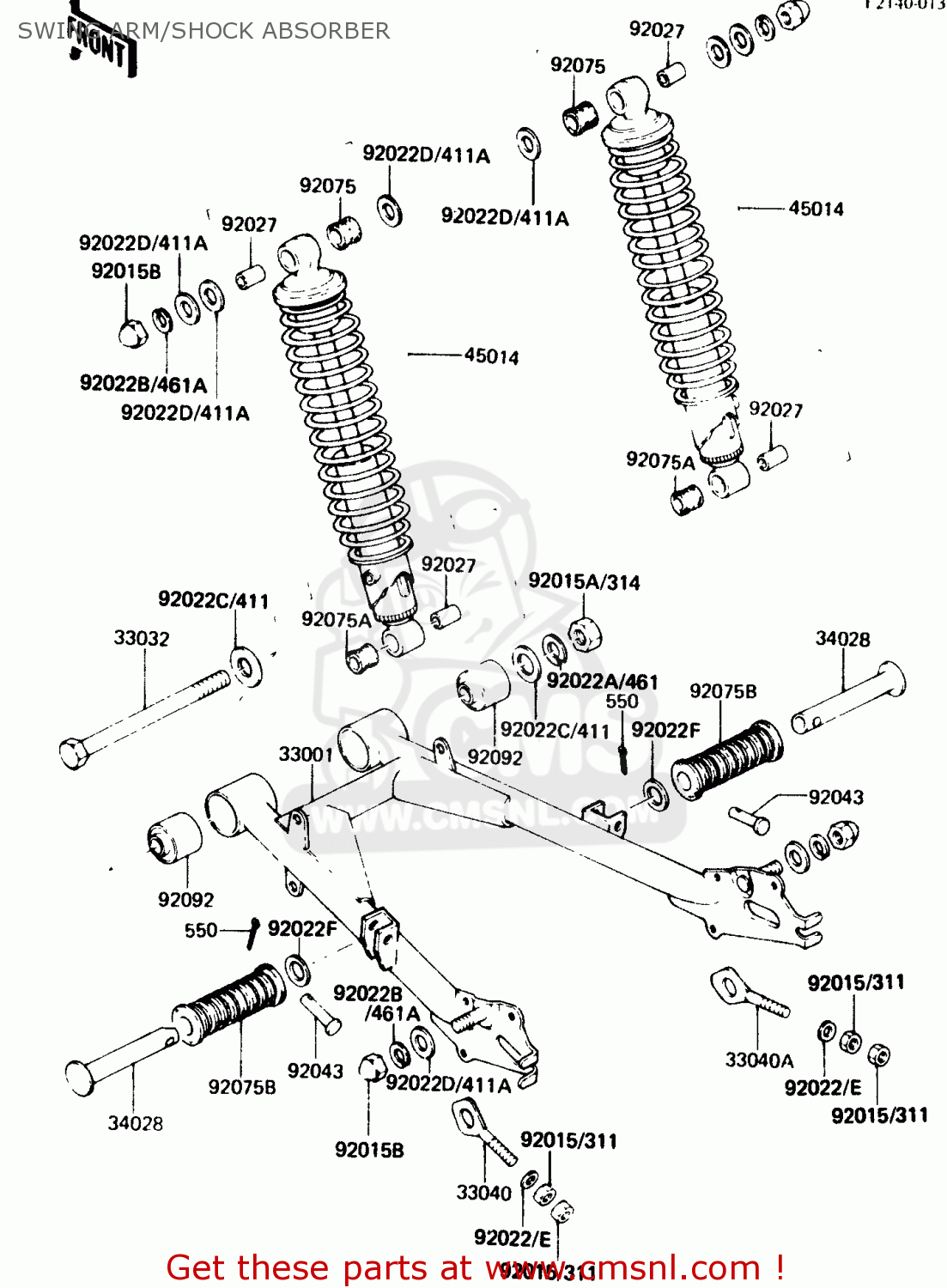

SWING ARM/SHOCK ABSORBER

ref

part #

description

quantity

33001

330011110
ref: 33001

ARM-COMP-SWING

€ 262.00

33032

33032039
ref: 33032

SHAFT-SWING ARM

€ 25.50

33040

330401017
ref: 33040

ADJUSTER-CHAIN,LH

€ 6.00

33040A

330401018
ref: 33040A

ADJUSTER-CHAIN,RH

€ 6.00

34028

34028009
ref: 34028

BAR-REAR FOOTREST

€ 24.00

45014

450141189
ref: 45014

SHOCKABSORBER

€ 193.00

92015B

92020014
ref: 92015B

NUT,CAP,12MM

€ 6.50

92022

92022116
ref: 92022

WASHER-PLAIN

€ 2.50

92022F

92022199
ref: 92022F

WASHER,20X30X2.3

€ 5.00

92027

920271031
ref: 92027

COLLAR,SHOCKABSORBER

€ 3.00

92043

92043079
ref: 92043

PIN-REAR FOOTREST FIT

€ 5.50

92075

920751019
ref: 92075

DAMPER,RUBBER

€ 3.00

92075A

920751020
ref: 92075A

DAMPER,SHOCKABSORBER

€ 3.00

92075B

92076020
ref: 92075B

DAMPER

€ 7.50

92092

92092006
ref: 92092

BUSHING-RUBBER,SWING

€ 11.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

411

411B1000
ref: 411

WASHER-PLAIN,10MM

€ 0.50

411A

411B1200
ref: 411A

WASHER-PLAIN,12MM

€ 0.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

461A

461F1200
ref: 461A

WASHER-SPRING,12MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

all assemblies
