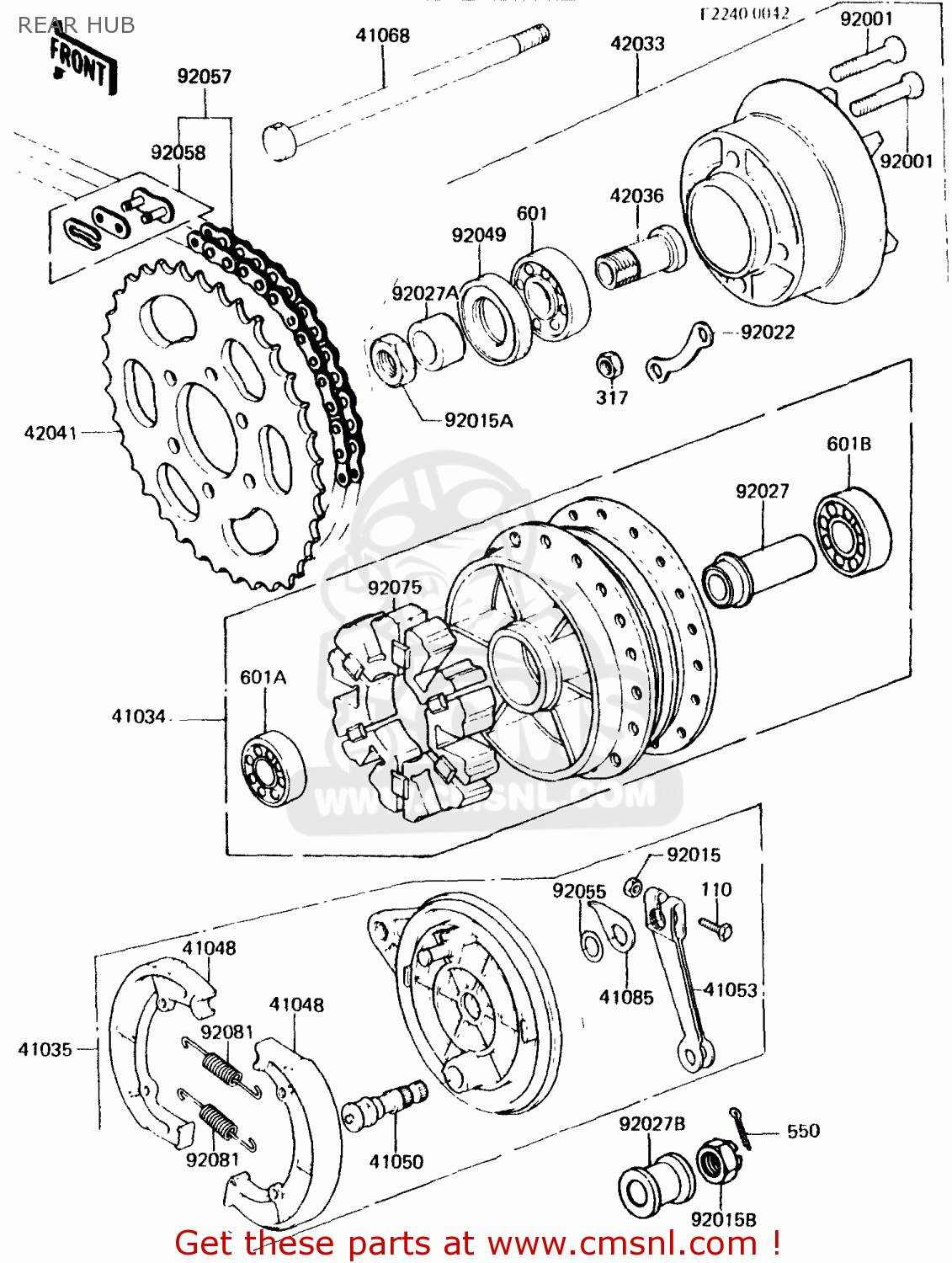

REAR HUB

ref

part #

description

quantity

41034

42005057
ref: 41034

DRUM-ASSY,RR

€ 454.00

41035

410351114
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 189.00

41048

410481007
ref: 41048

SHOE, BRAKE (MCA)

€ 15.00

41050

42026026
ref: 41050

CAM-BRAKE

€ 16.00

41053

410531024
ref: 41053

LEVER-BRAKE CAM

€ 23.50

41068

410681097
ref: 41068

AXLE,15X219.5

€ 44.50

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331035
ref: 42033

COUPLING-ASSY

€ 141.00

42036

420361045
ref: 42036

SLEEVE,L=58

€ 32.50

42041

420411110
ref: 42041

SPROCKET-HUB,36T

€ 21.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

42045015
ref: 92015A

NUT,20MM

€ 4.50

92015B

42045020
ref: 92015B

NUT,14MM

€ 6.50

92022

920221269
ref: 92022

WASHER,LOCK

€ 6.00

92027

42010037
ref: 92027

COLLAR,L=57

€ 9.00

92027A

42037025
ref: 92027A

COLLAR,L=12.5

€ 15.50

92027B

920271343
ref: 92027B

COLLAR,L=37.5

€ 9.50

92049

92050060
ref: 92049

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571103
ref: 92057

CHAIN,DRIVE,EK4285H-G

€ 36.00

92058

920581015
ref: 92058

JOINT-CHAIN,EK428SH

€ 3.50

92075

42014030
ref: 92075

DAMPER,REAR HUB SHOCK

€ 7.50

92081

41049002
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6202
ref: 601A

BEARING-BALL,#6202C3

€ 14.50

601B

601B6302Z
ref: 601B

BEARING-BALL,#6302ZC3

€ 22.50
