CARBURETOR
KH125K1 1982 USA

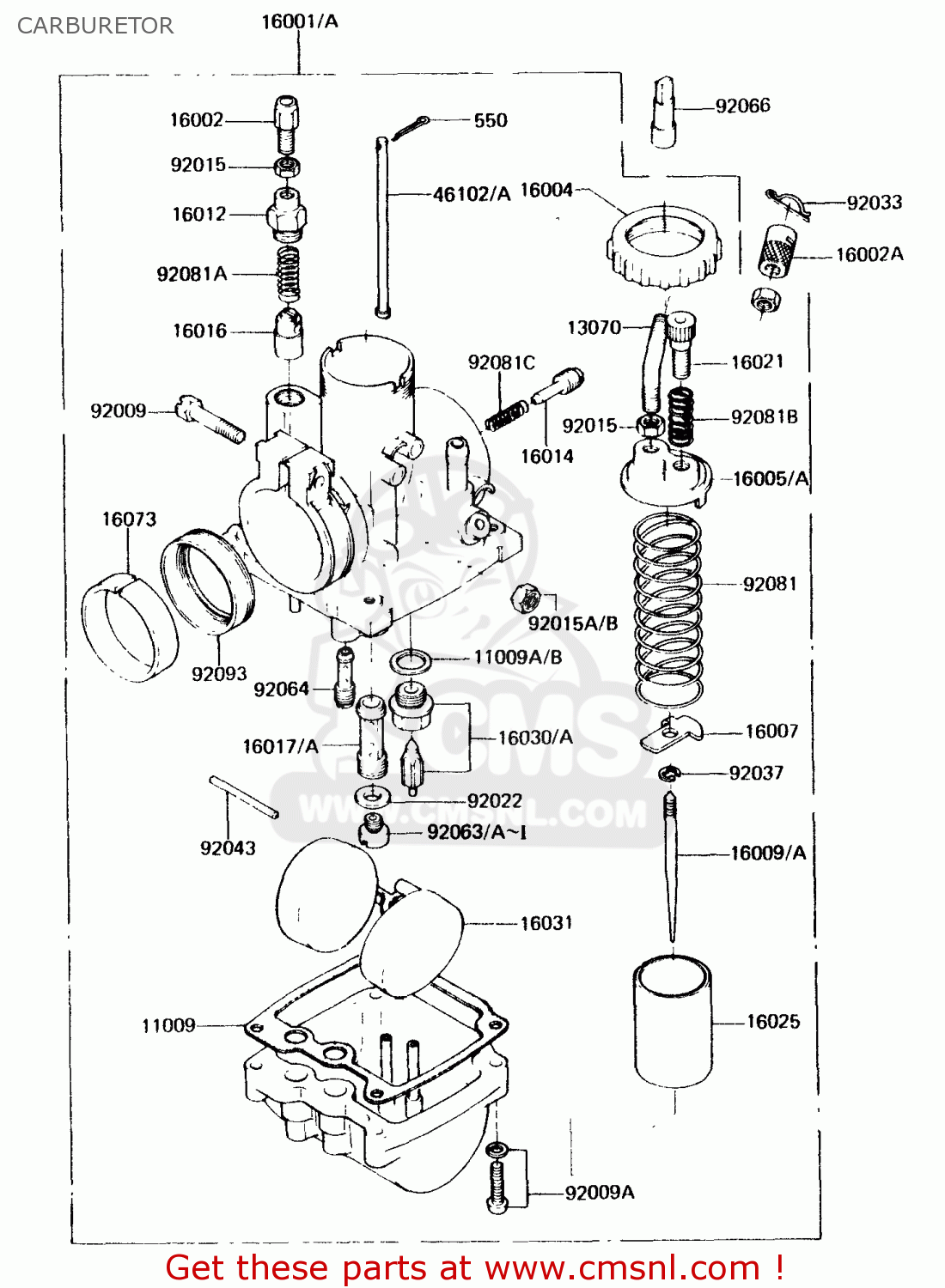

Carburetor diagram KH125K1 1982 USA
CARBURETOR KH125K1 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11009
16019021
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
11009A
16029002
ref: 11009A
WASHER-VALVE SEAT
€ 2.50
13070
16077008
ref: 13070
GUIDE,CABLE
€ 6.50
16001
160011633
ref: 16001
CARBURETOR
€ 418.50
16002
16002002
ref: 16002
ADJUSTER-CABLE,STARTE
€ 8.00
16002A
16002007
ref: 16002A
ADJUSTER-CABLE,THROTT
€ 7.50
16004
16004010
ref: 16004
CAP-CHAMBER,MIXING
€ 13.50
16005
16005005
ref: 16005
TOP-CHAMBER,MIXING
€ 12.50
16007
16007020
ref: 16007
SEAT-SPRING,THROTTLE
€ 7.00
16009
160091127
ref: 16009
NEEDLE-JET,4DJ45
€ 20.00
16012
16012004
ref: 16012
CAP-STARTER PLUNGER
€ 7.50
16014
16014002
ref: 16014
SCREW-PILOT AIR
€ 11.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 20.00
16017
160171118
ref: 16017
JET-NEEDLE,P-3
€ 25.50
16021
16021002
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16025
16025057
ref: 16025
VALVE-THROTTLE,CA2.0
€ 80.50
16030
16030001
ref: 16030
VALVE-FLOAT,#2.0
€ 40.50
16031
16031015
ref: 16031
FLOAT
€ 40.50
46102
16024006
ref: 46102
ROD-THROTTLE VLV STOP
€ 5.50
46102
16024006
ref: 46102
ROD-THROTTLE VLV STOP
€ 5.50
92009
16010004
ref: 92009
SCREW-CLAMP
€ 3.50
92009A
16033012
ref: 92009A
SCREW-FLOAT CHAMBER
€ 1.00
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16011002
ref: 92015A
NUT 6MM
€ 0.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92063A
92063068
ref: 92063A
MAIN JET,#92.5R
€ 15.50
92063B
92063069
ref: 92063B
MAIN JET,#95R
€ 10.00
92063F
92063093
ref: 92063F
MAIN JET,#85R
€ 10.50
92063G
92063094
ref: 92063G
JET-MAIN,#87.5R
€ 11.00
92064
92064021
ref: 92064
PILOT JET #20 ISO
€ 12.00
92066
16147001
ref: 92066
PLUG,12X40
€ 3.00
92081
16006013
ref: 92081
SPRING-THROTTLE VALVE
€ 10.00
92081A
16013003
ref: 92081A
SPRING-STARTER PLUNG
€ 4.00
92081B
16022005
ref: 92081B
SPRING-THR STOP SCREW
€ 5.50
92081C
16022007
ref: 92081C
SPRING-THR STOP SCREW
€ 5.50
550
550D1210
ref: 550
PIN-COTTER,1.2X10
€ 1.50
