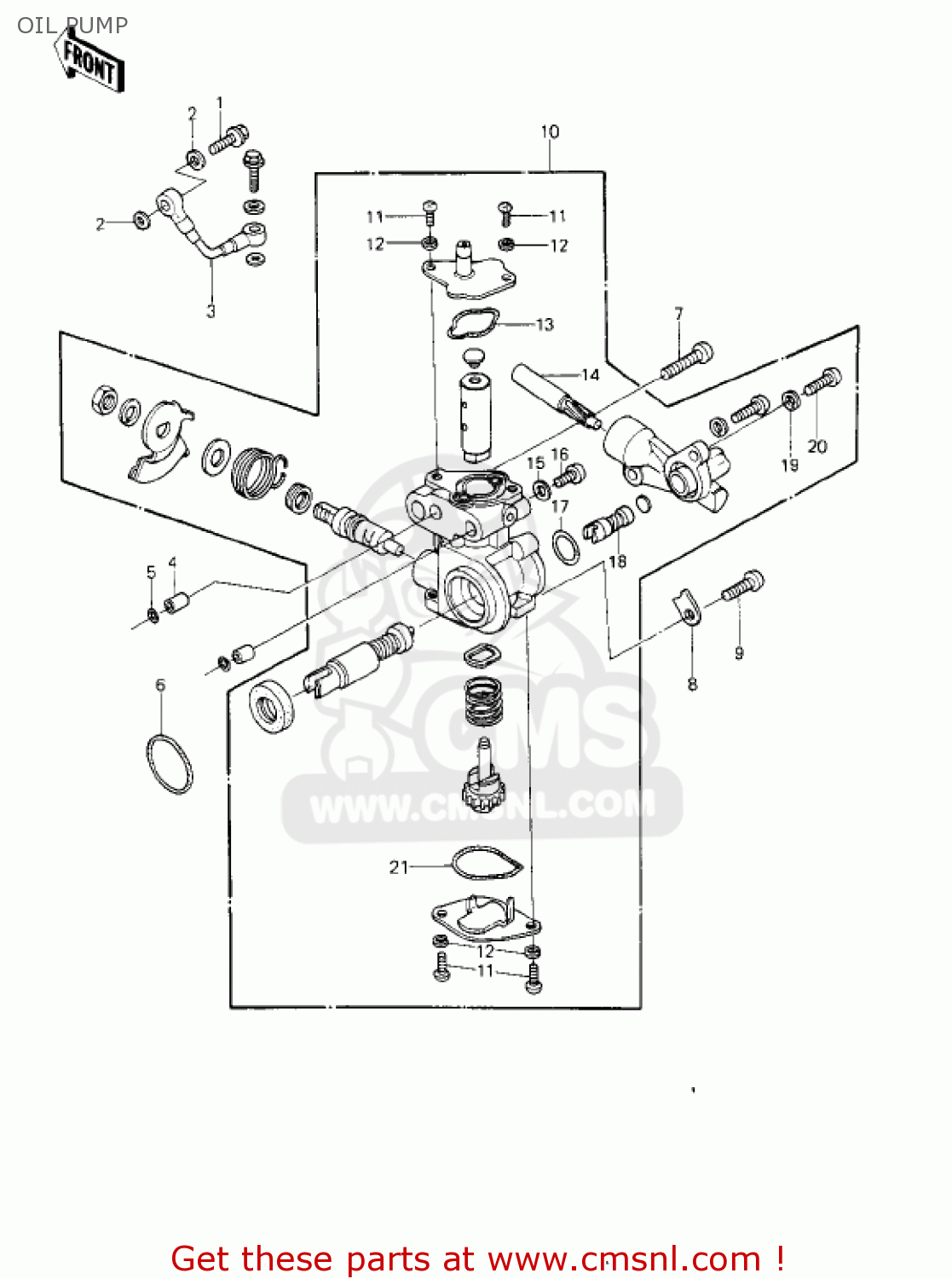

OIL PUMP

ref

part #

description

quantity

1

92060013
ref: 1

BOLT-BANJO,6MM

€ 4.00

2

92022077
ref: 2

WASHER,6.1X12X1

€ 0.50

3

16134030
ref: 3

OIL PIPE

€ 93.50

4

92027256
ref: 4

COLLAR,2.5X5X9.8

€ 2.50

5

670B1505
ref: 5

O RING,5MM

€ 1.00

6

92055055
ref: 6

'0'RING

€ 2.50

7

220B0520
ref: 7

SCREW-PAN-CROS

€ 0.50

8

92037187
ref: 8

CLAMP

€ 4.00

9

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

10

160821008
ref: 10
KE250-B1/B2

OIL PUMP ASSEMBLY

€ 221.50

10

160821008
ref: 10
KE250-B3

OIL PUMP ASSEMBLY

€ 221.50

11

220B0308
ref: 11

SCREW-PAN-CROS

€ 0.50

12

461F0300
ref: 12

WASHER-SPRING,3MM

€ 0.50

13

920551016
ref: 13

RING-O,OIL PUMP,UPP C

€ 6.50

14

410601008
ref: 14

GEAR,TACHOMETER

€ 51.50

15

920221025
ref: 15

AIR VENT WASHER

€ 3.50

17

920551017
ref: 17

O RING,TACHOMETR CSE

€ 4.50

18

410601007
ref: 18

GEAR,WORM,TACHOMETER

€ 43.00

19

461F0400
ref: 19

WASHER-SPRING,4MM

€ 0.50

20

220B0410
ref: 20

SCREW-PAN-CROS

€ 2.00

21

920551015
ref: 21

RING-O,OIL PUMP,LWR C

€ 8.00
