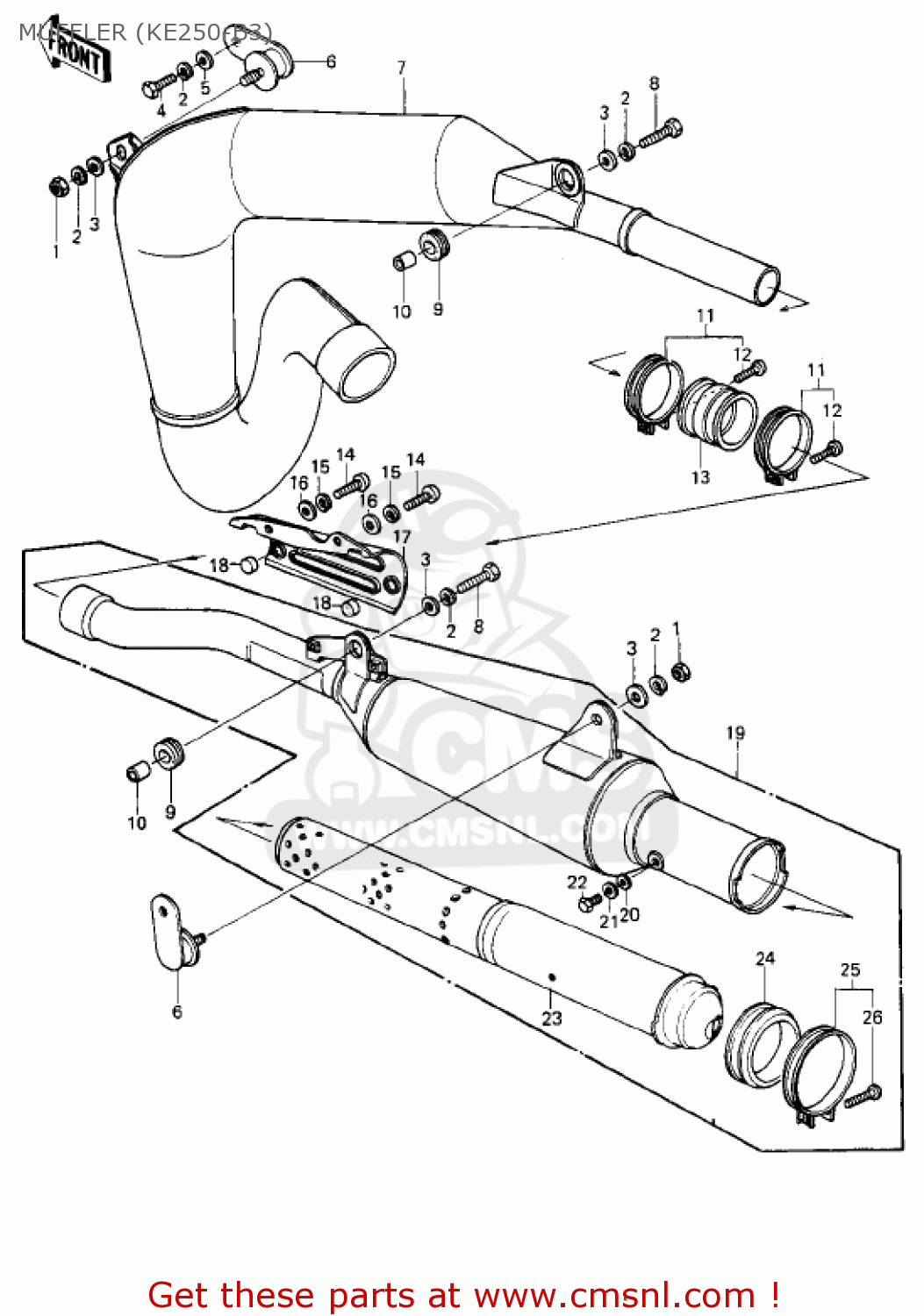

MUFFLER (KE250-B3)

ref

part #

description

quantity

1

311B0800
ref: 1

NUT,8MM

€ 0.50

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

920221561
ref: 3

WASHER,8.5X20X1.6

€ 2.50

4

115G0816
ref: 4

BOLT-HEX,HEAD 8X16

€ 0.50

5

410B0800
ref: 5

WASHER-PLAIN-SMALL,8M

€ 0.50

6

18061060
ref: 6

BRACKET,MUFFLER

€ 16.50

7

180061019
ref: 7

MUFFLER BODY,FLAT BLACK

€ 196.00

8

115G0825
ref: 8

BOLT-HEX,HEAD,8X25

€ 3.00

9

18063005
ref: 9

DAMPER,MUFFLER

€ 3.00

10

92027102
ref: 10

COLLAR

€ 1.00

11

92037177
ref: 11

CLAMP

€ 7.50

12

220B0525
ref: 12

SCREW-PAN-CROS,5X25

€ 2.50

13

920931014
ref: 13

SEAL,MUFFLER

€ 19.50

14

220B0612
ref: 14

SCREW-PAN HEAD,6X12

€ 1.00

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

140251061
ref: 17

MUFFLER COVER,FLAT BLACK

€ 15.00

18

920751089
ref: 18

DAMPER

€ 4.50

19

180011046
ref: 19

MUFFLER ASSEMBLY,FLAT BLACK

€ 234.50

20

92022077
ref: 20

WASHER,6.1X12X1

€ 0.50

21

411B0600
ref: 21

WASHER-PLAIN,6MM

€ 0.50

22

110B0608
ref: 22

BOLT-HEX HEAD,6X8

€ 0.50

23

49099100721
ref: 23

MUFFLER PIPE BAFFLE,FLAT BLACK

€ 67.00

24

920931013
ref: 24

SEAL,MUFFLER

€ 7.50

25

92037171
ref: 25

CLAMP

€ 9.00

26

220B0535
ref: 26

SCREW-PAN-CROS

€ 2.00
