ENGINE COVER
KE125A12 1985 UNITED KINGDOM FR GR

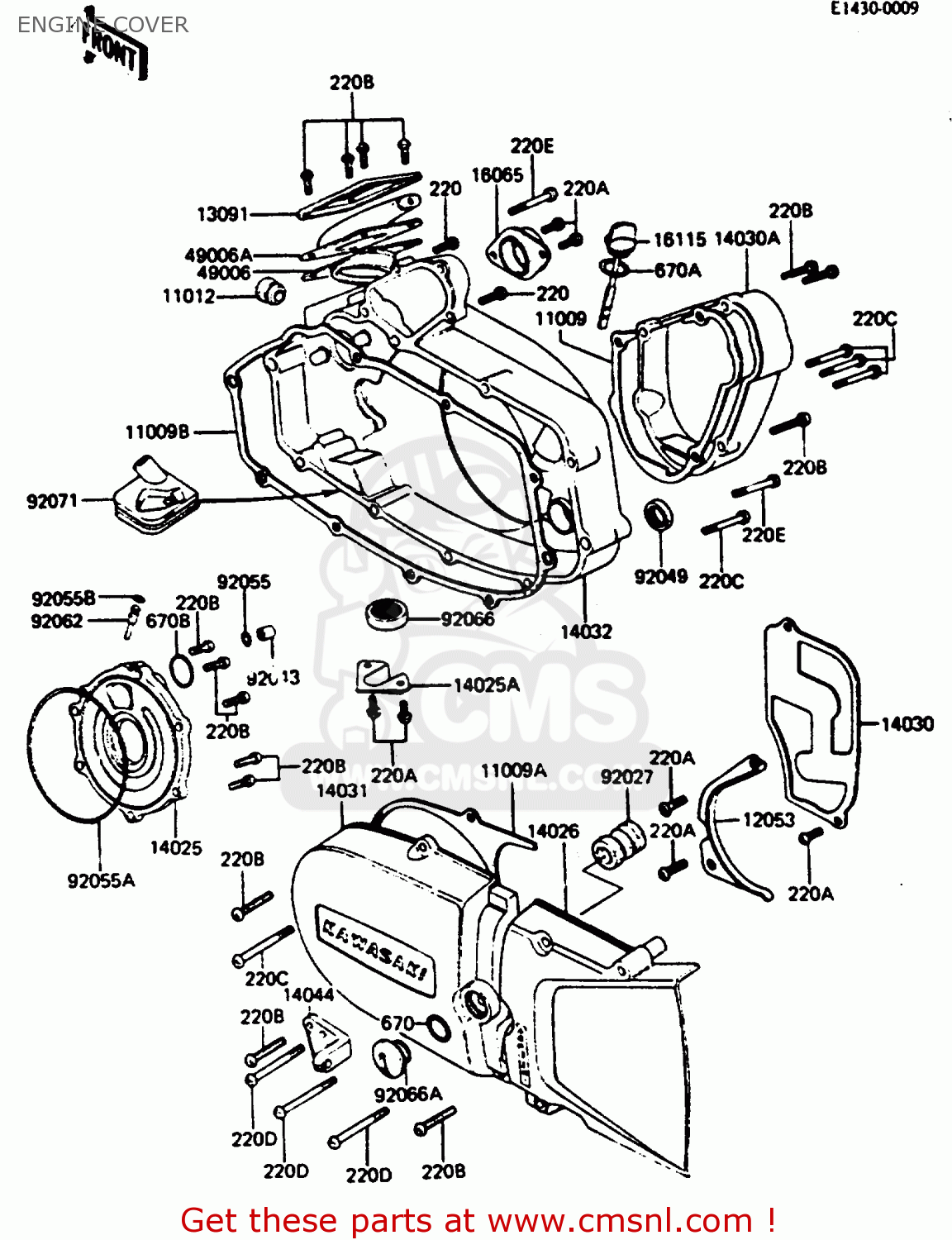

Engine cover diagram KE125A12 1985 UNITED KINGDOM FR GR
ENGINE COVER KE125A12 1985 UNITED KINGDOM FR GR
×
prices are in EUR
ref
part #
description
quantity
11009
110091277
ref: 11009
GASKET,CARBURETOR COV (MCA)
€ 8.50
11009A
14045017
ref: 11009A
GASKET,L.H ENG COVER (MCA)
€ 8.00
11009B
14046029
ref: 11009B
GASKET,R.H ENG COVER (MCA)
€ 19.50
11012
14039001
ref: 11012
CAP,RUBBER
€ 2.50
12053
14077003
ref: 12053
GUIDE-CHAIN
€ 7.50
13091
14065007
ref: 13091
HOLDER,CARBURETOR BOO
€ 10.50
14025
14019055
ref: 14025
COVER,ROTARY DISC
€ 48.50
14025A
14076006
ref: 14025A
COVER,FUEL DRAIN
€ 4.50
14026
140261030
ref: 14026
COVER-CHAIN,F.BLACK
€ 49.00
14030
14030060
ref: 14030
COVER,OIL PUMP
€ 8.50
14030A
140301013
ref: 14030A
COVER-CARBURETOR,F.BL
€ 51.00
14031
140311053
ref: 14031
COVER-GENERATOR,F.BLA
€ 104.50
14032
140321035
ref: 14032
COVER,CLUTCH
€ 110.00
14044
14044012
ref: 14044
HOLDER-CABLE,CLUTCH
€ 8.00
16065
16065033
ref: 16065
HOLDER-CARBURETOR
€ 13.50
16115
16115020
ref: 16115
PLUG,OIL FILLER
€ 7.50
49006
14038039
ref: 49006
BOOT,CARBURETOR
€ 30.50
49006A
14038040
ref: 49006A
BOOT,CARBURETOR
€ 12.50
92027
92027207
ref: 92027
COLLAR,11X15,RUBBER
€ 2.50
92043
92042017
ref: 92043
PIN,DOWEL,8X16
€ 3.50
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 5.50
92055
92055029
ref: 92055
RING-O,7.8X3.5
€ 2.50
92055A
92055057
ref: 92055A
RING-O,107.4X1.9
€ 5.50
92055B
92055080
ref: 92055B
RING-O,2.5X1.5
€ 3.00
92062
92062012
ref: 92062
NOZZLE
€ 8.50
92066
16116006
ref: 92066
PLUG,25X12
€ 10.00
92066A
92067017
ref: 92066A
PLUG,ENGINE COVER,LH,
€ 10.50
92071
16136009
ref: 92071
GROMMET,OVERFLOW
€ 6.00
220
220X0516
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220X0612
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220X0620
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0630
ref: 220C
SCREW-PAN-CROS
€ 2.00
220D
220X0635
ref: 220D
SCREW-PAN-CROS
€ 2.50
220E
220X0645
ref: 220E
SCREW-PAN-CROS
€ 2.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
€ 1.00
670B
670B3028
ref: 670B
O RING,28MM
€ 2.50
