CARBURETOR
KE125A12 1985 UNITED KINGDOM FR GR

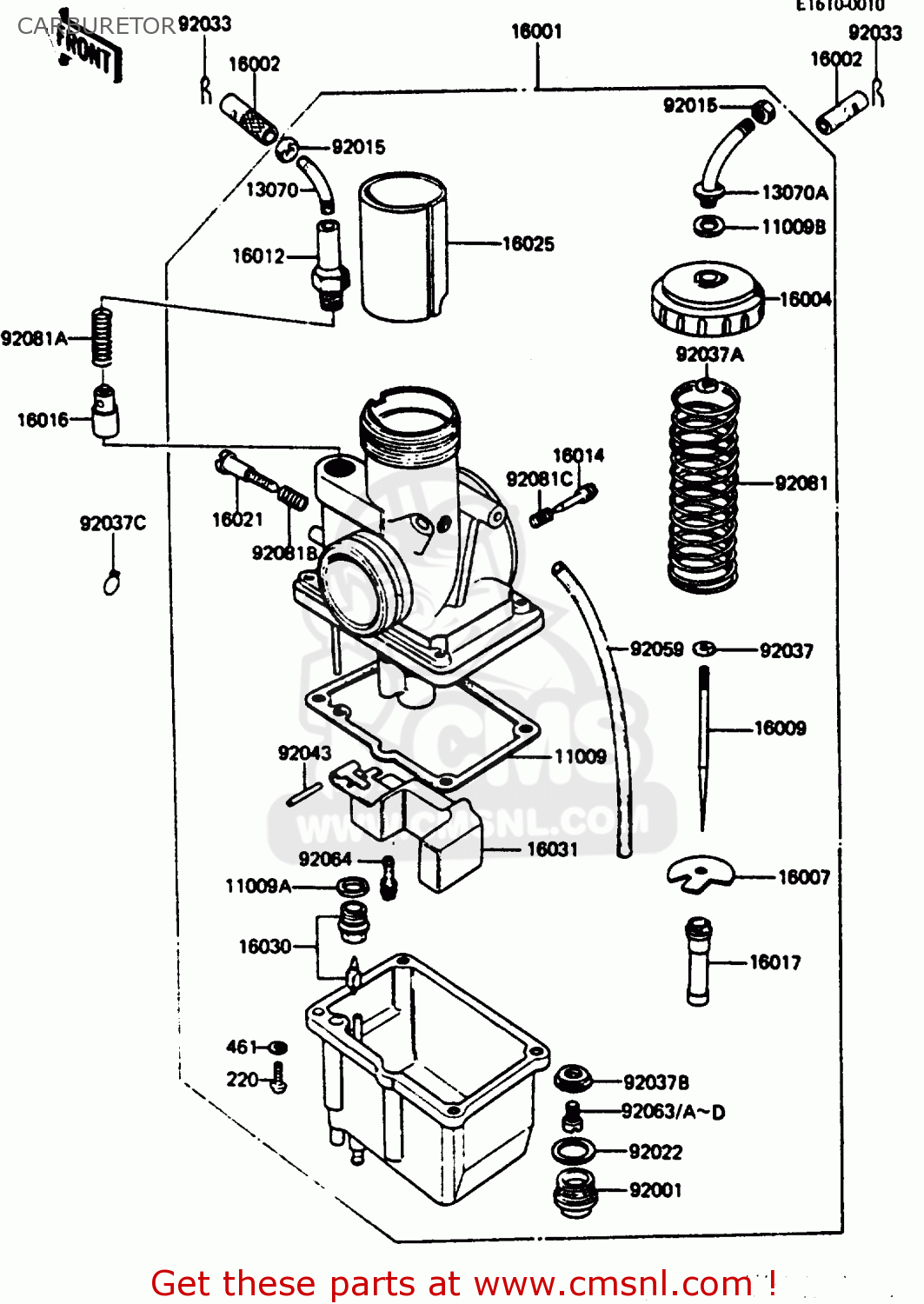

Carburetor diagram KE125A12 1985 UNITED KINGDOM FR GR
CARBURETOR KE125A12 1985 UNITED KINGDOM FR GR
×
prices are in EUR
ref
part #
description
quantity
11009
16019023
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
€ 2.50
11009B
16029007
ref: 11009B
GASKET,CABLE GUIDE (NAS)
€ 5.50
13070
16077010
ref: 13070
GUIDE,CABLE
€ 13.00
13070A
16077011
ref: 13070A
GUIDE,CABLE
€ 13.50
16001
160011272
ref: 16001
CARBURETOR ASSY
€ 281.50
16002
16002007
ref: 16002
ADJUSTER-CABLE,THROTT
€ 7.50
16004
16004024
ref: 16004
CAP,MIXING CHAMBER
€ 13.50
16007
160071022
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091069
ref: 16009
NEEDLE-JET,4EJ20-3
€ 21.00
16012
16012017
ref: 16012
CAP-STARTER PLUNGER
€ 11.50
16014
16014002
ref: 16014
SCREW-PILOT AIR
€ 11.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 19.00
16017
160171065
ref: 16017
JET-NEEDLE,O-2
€ 26.50
16021
16021023
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251049
ref: 16025
VALVE,THROTTLE,CA2.5
€ 29.50
16030
16030024
ref: 16030
VALVE-FLOAT
€ 30.50
16031
16031026
ref: 16031
FLOAT
€ 40.00
92001
92001146
ref: 92001
BOLT,BANJO
€ 12.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.00
92022
16034008
ref: 92022
WASHER,MAIN JET COVER (NAS)
€ 4.00
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
€ 4.50
92037B
16008012
ref: 92037B
RING,MAIN JET HOLD
€ 13.50
92037C
92037010
ref: 92037C
CLAMP-FUEL PIPE
€ 2.50
92043
16032006
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591011
ref: 92059
TUBE, CARB. BREATHER
€ 6.50
92063
92063068
ref: 92063
MAIN JET,#92.5R
€ 15.50
90263A
92063093
ref: 90263A
MAIN JET,#85R
€ 10.00
92063B
92063094
ref: 92063B
JET-MAIN,#87.5R
€ 10.50
92063C
92063095
ref: 92063C
(RACING USE ONLY)
MAIN JET,#90R
€ 10.00
92063D
92063124
ref: 92063D
(RACING USE ONLY)
MAIN JET,#82.5R
€ 10.50
92064
92064022
ref: 92064
PILOT JET #30 ISO
€ 10.50
92081
16006024
ref: 92081
SPRING,THROTTLE VALV
€ 7.50
92081A
16013003
ref: 92081A
SPRING-STARTER PLUNG
€ 3.50
92081B
16022005
ref: 92081B
SPRING-THR STOP SCREW
€ 5.50
92081C
16022007
ref: 92081C
SPRING-THR STOP SCREW
€ 5.00
220
220B0414
ref: 220
SCREW-PAN-CROS
€ 2.00
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
