FENDER
KE125A11 1984 UNITED KINGDOM FR SD

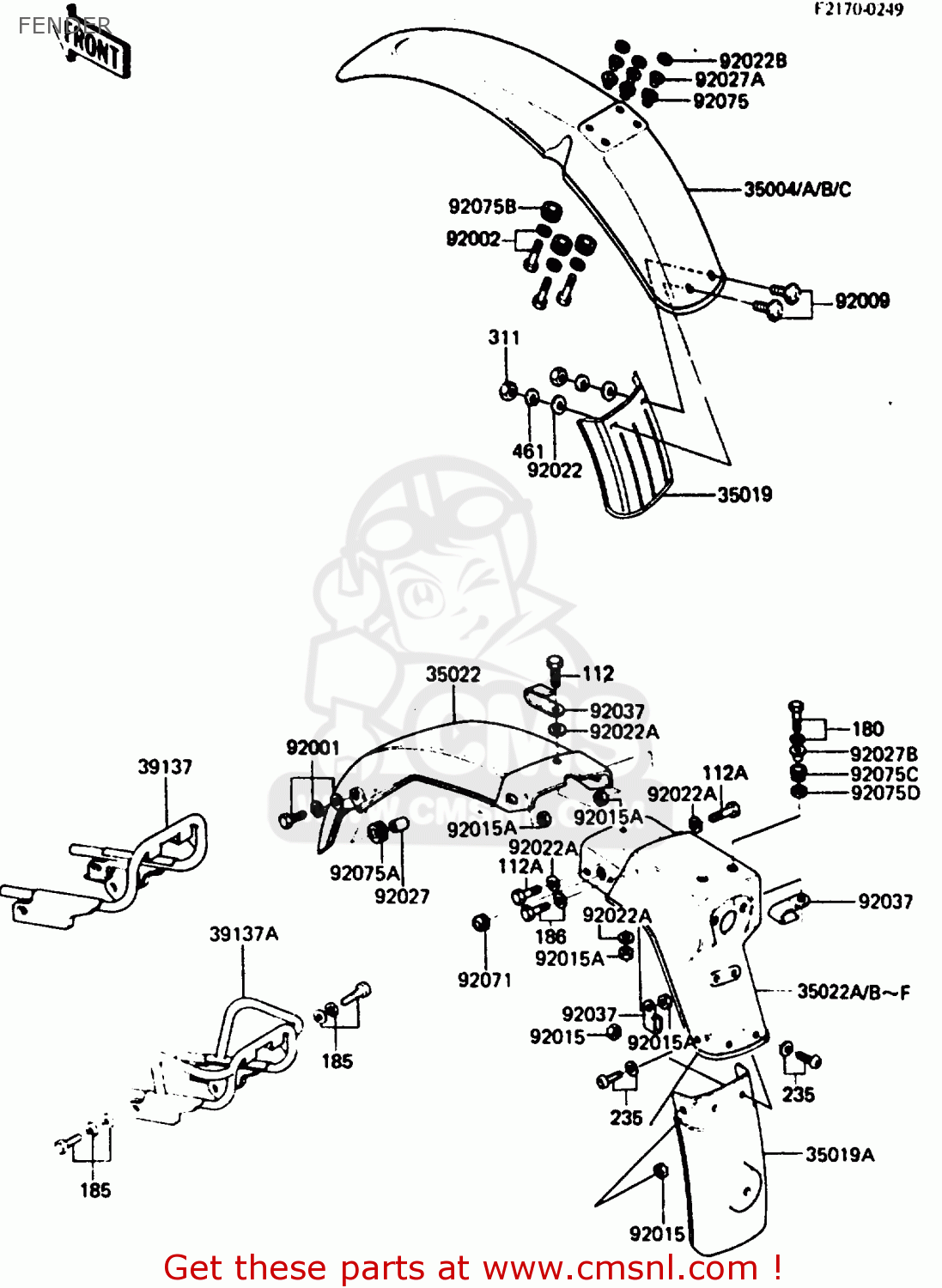

Fender diagram KE125A11 1984 UNITED KINGDOM FR SD
FENDER KE125A11 1984 UNITED KINGDOM FR SD
×
prices are in EUR
ref
part #
description
quantity
35004
3500410536B
ref: 35004
FR, 5D
FENDER-FRONT,S.RED
€ 40.50
35004A
3500410536C
ref: 35004A
UK
FENDER-FRONT,EBONY
€ 54.50
35004C
3500410536W
ref: 35004C
FENDER-FRONT,L.GREEN
€ 75.50
35019
35019004
ref: 35019
FLAP,FLONT FENDER,GMN
€ 7.00
35019A
350191006
ref: 35019A
SD
FLAP,REAR FENDER
€ 24.50
35022
35022100
ref: 35022
FENDER-COMP-REAR,FR
€ 33.50
35022A
3502210546B
ref: 35022A
FR
FENDER-COMP-RR,RR,RED
€ 26.00
35022B
3502210546C
ref: 35022B
UK
FENDER-COMP-REAR,RR,E
€ 37.00
35022D
3502210546W
ref: 35022D
FR, UK
FENDER-COMP-REAR,L.GR
€ 52.50
35022E
3502210556B
ref: 35022E
SD
FENDER-COMP-REAR,RR,S
€ 31.50
35022F
3502210556W
ref: 35022F
SD
FENDER,RR(RR),GRN,SWI
€ 32.50
39137
391371009
ref: 39137
FR, UK
STAY,REAR
€ 64.50
39137A
391371010
ref: 39137A
SD
STAY,REAR,SWIT
€ 61.50
92001
920011763
ref: 92001
BOLT,W/SP,6X16
€ 3.00
92002
920021096
ref: 92002
BOLT,6X25
€ 2.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92015
92017014
ref: 92015
SD
NUT,LOCK,6MM
€ 4.00
92015A
92019008
ref: 92015A
NUT-LOCK,6MM
€ 3.00
92022
92022024
ref: 92022
WASHER,7X16X1.2
€ 2.50
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92022B
92022223
ref: 92022B
WASHER,20.5X30X1.4
€ 8.50
92027
92027103
ref: 92027
COLLAR
€ 2.50
92027A
92027194
ref: 92027A
COLLAR
€ 3.50
92027B
92027251
ref: 92027B
COLLAR,L=13.1
€ 1.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92071
92071019
ref: 92071
GROMMET,10MM
€ 2.50
92075
92075103
ref: 92075
DAMPER
€ 2.50
92075A
92075105
ref: 92075A
DAMPER
€ 2.50
92075B
92075121
ref: 92075B
DAMPER,FENDER
€ 2.50
92075C
92075174
ref: 92075C
DAMPER,MALE
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
112
112B0616
ref: 112
BOLT-UPSET
€ 1.00
112A
112B0620
ref: 112A
BOLT-UPSET
€ 1.00
180
180B0625
ref: 180
BOLT-UPSET-WS
€ 2.50
185
185C0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 3.00
186
186B0614
ref: 186
BOLT-UPSET-WP
€ 0.50
235
235X0616
ref: 235
SD
SCREW-PAN-WP-CROS
€ 1.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
