SWING ARM/SHOCK ABSORBERS ('82-'

KE125-A8 KE125 1981 USA CANADA

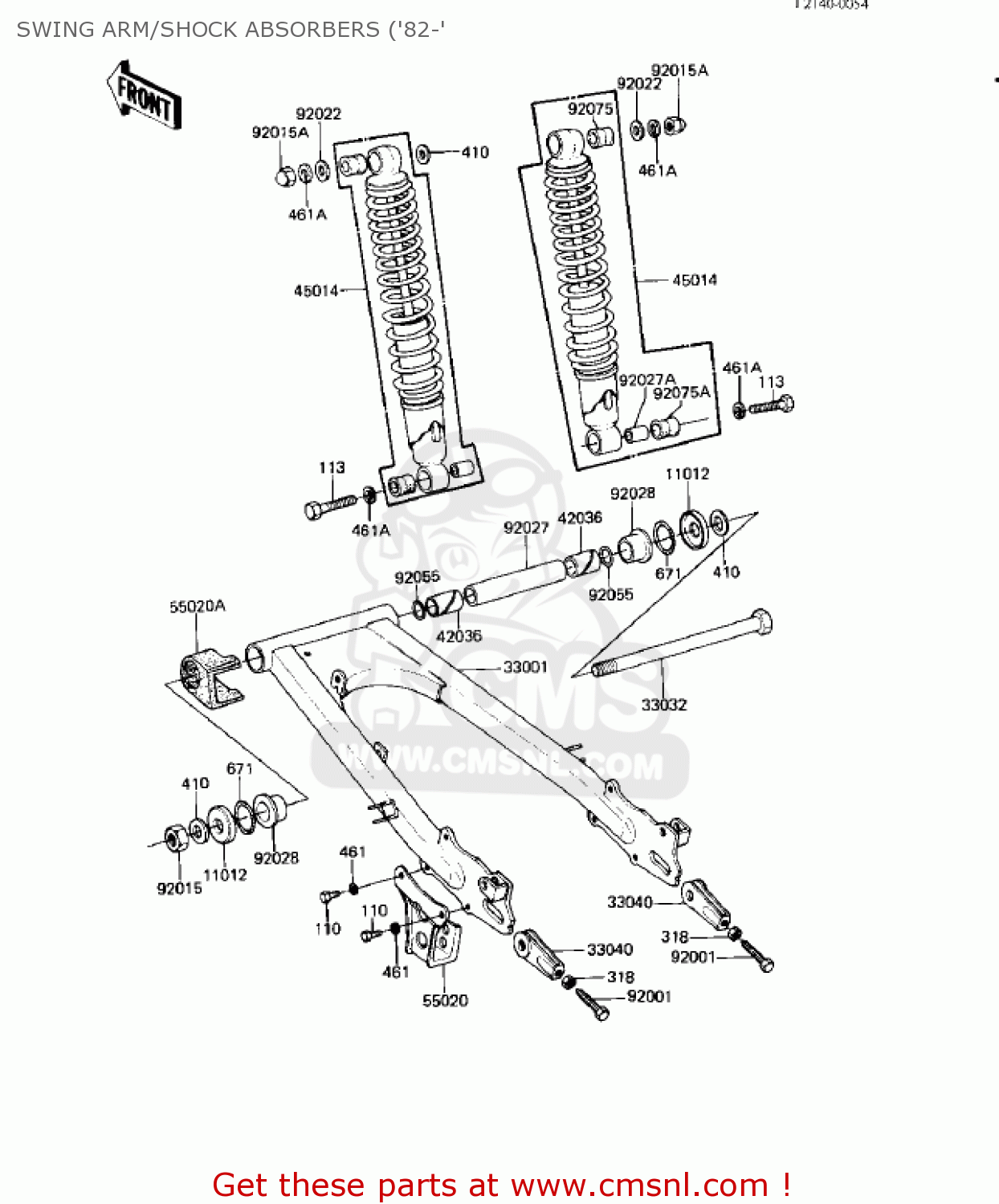

Swing arm/shock absorbers ('82-' diagram KE125-A8 KE125 1981 USA CANADA

SWING ARM/SHOCK ABSORBERS ('82-' KE125-A8 KE125 1981 USA CANADA

SWING ARM/SHOCK ABSORBERS ('82-' KE125-A8 KE125 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

33035005
ref: 11012

CAP,SWING ARM

€ 5.50

33001

330011060
ref: 33001

SWING ARM

€ 205.50

33032

33032034
ref: 33032

SHAFT-SWING ARM

€ 22.50

33040

330401010
ref: 33040

ADJUSTER-CHAIN

€ 14.00

42036

33034016
ref: 42036

SLEEVE,12.1X22X39

€ 14.50

45014

450141142
ref: 45014

SHOCKABSORBER,RR

€ 188.50

55020

550201026
ref: 55020

GUARD,CHAIN,RR

€ 15.50

55020A

550201063
ref: 55020A

GUARD,CHAIN,FR

€ 8.00

92001

920011399
ref: 92001

BOLT,8X50

€ 6.00

92015

92019009
ref: 92015

NUT,LOCK,12MM

€ 5.00

92015A

92020003
ref: 92015A

NUT-SHOCK ABSORBER

€ 4.00

92022

92022044
ref: 92022

WASHER,10.5X26X2.3

€ 2.50

92027

33036007
ref: 92027

COLLAR,12.7X17.3X106

€ 6.00

92027A

45016003
ref: 92027A

COLLAR,SHOCKABSORBER

€ 12.50

9202

33033009
ref: 9202

BUSHING,SWING ARM

€ 57.00

92055

92055001
ref: 92055

RING-O,16MM

€ 2.00

92075

45017010
ref: 92075

BUSH A-SHCK ABS RUBER

€ 9.00

92075A

920751020
ref: 92075A

DAMPER,SHOCKABSORBER

€ 3.00

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

113

113N1035
ref: 113

BOLT-HEX HEAD,10X35

€ 6.00

318

318B0800
ref: 318

NUT,8MM

€ 0.50

41

410B1200
ref: 41

WASHER-PLAIN-SMALL,12

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

671

671B2530
ref: 671

O RING,30MM

€ 3.00
