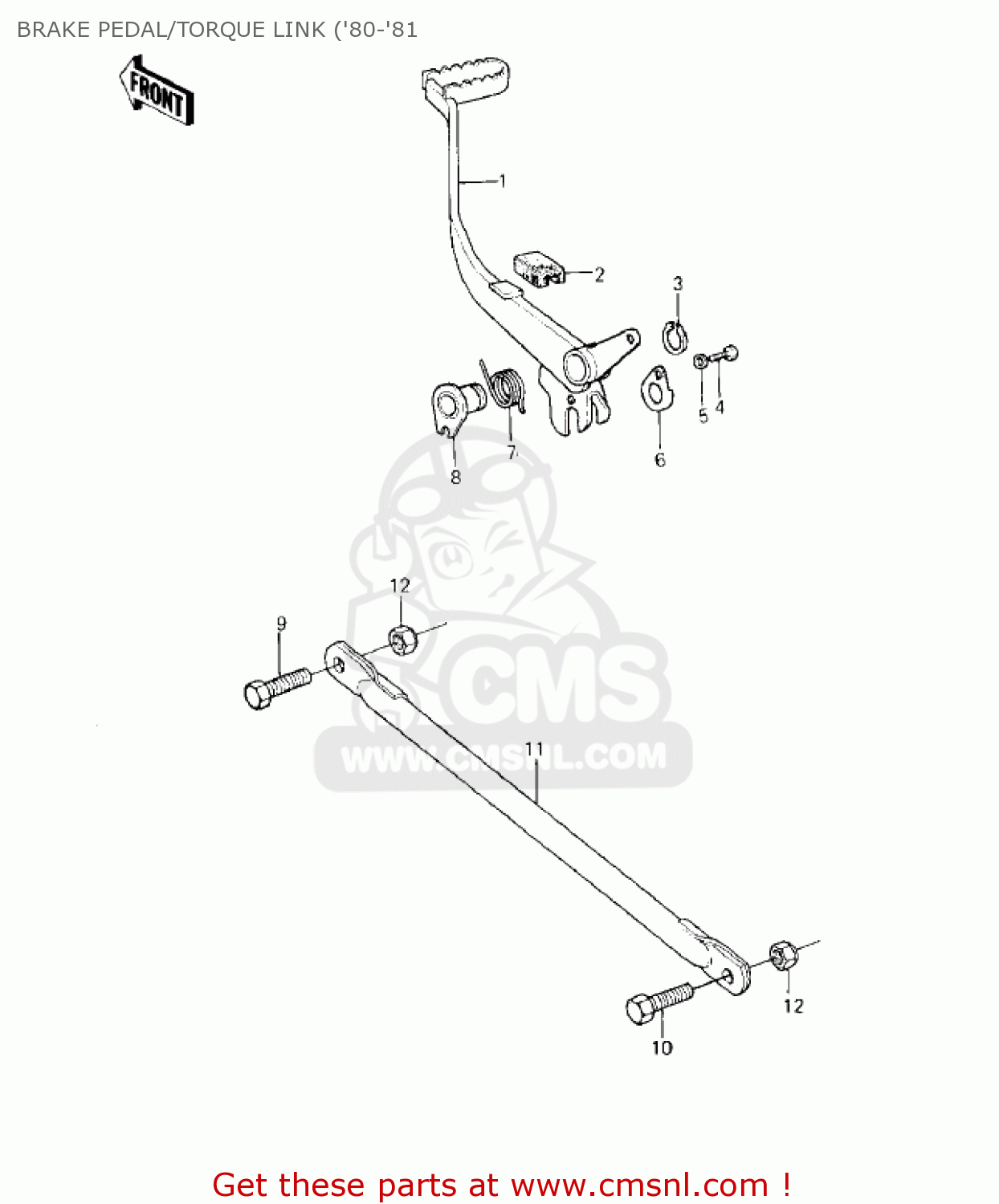

BRAKE PEDAL/TORQUE LINK ('80-'81

KE125-A8 KE125 1981 USA CANADA

Brake pedal/torque link ('80-'81 diagram KE125-A8 KE125 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

43001058
ref: 1

LEVER-BRAKE,PEDAL

€ 30.50

92075220
ref: 2

DAMPER,BRAKE PEDAL

€ 2.50

480J2200
ref: 3

CIRCLIP-TYPE-C,22MM

€ 3.00

220B0508
ref: 4

SCREW-PAN-CROS,5X8

€ 0.50

461F0500
ref: 5

WASHER-SPRING,5MM

€ 0.50

43081002
ref: 6

BRACKET,BRAKE PEDAL

€ 2.50

43005032
ref: 7

SPRING,BRAKE PEDAL

€ 4.00

92027210
ref: 8

COLLAR,BRAKE PEDAL

€ 21.00

113G1022
ref: 9

BOLT,HEX HEAD,10X22

€ 2.50

113G1028
ref: 10

BOLT,HEX HEAD,10X28

€ 4.50

43007048
ref: 11

ROD-TORQUE,RR

€ 15.50

92019016
ref: 12

NUT,10MM

€ 3.00
