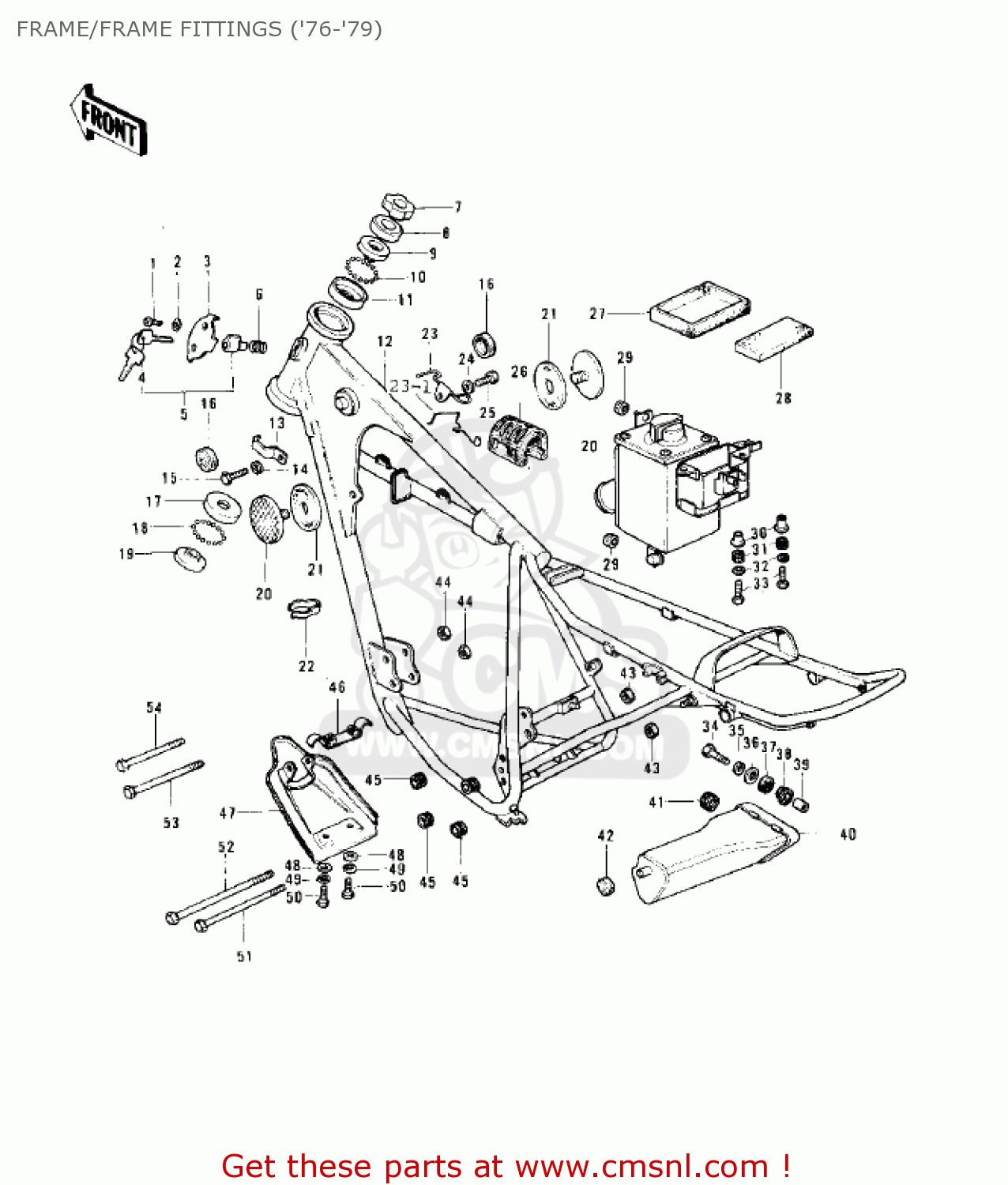

FRAME/FRAME FITTINGS ('76-'79)

ref

part #

description

quantity

1

92008007
ref: 1

SCREW-TAPPING

€ 2.50

2

92097003
ref: 2

WASHER

€ 2.50

3

110121134
ref: 3

CAP,STEERING LOCK

€ 4.50

4

2700805431
ref: 4
KE125-A3/A4/A5, REF.

KEY SET,#431

€ 14.00

4

2700805432
ref: 4
FOR KE125-A6

KEY SET,#432

€ 9.50

4

2700805433
ref: 4

KEY SET,#433

€ 9.50

4

2700805434
ref: 4

KEY SET,#434

€ 14.00

4

2700805435
ref: 4

KEY SET,#435

€ 14.00

4

2700805436
ref: 4

KEY SET,#436

€ 14.00

4

2700805437
ref: 4

KEY SET,#437

€ 9.50

4

2700805438
ref: 4

KEY SET,#438

€ 14.00

4

2700805439
ref: 4

KEY SET,#439

€ 9.00

4

2700805440
ref: 4

KEY SET,#440

€ 9.50

5

27016042
ref: 5

LOCK-ASSY,STEERING

€ 36.00

6

27032001
ref: 6

SPRING-STEERING LOCK

€ 3.50

7

92090022
ref: 7

NUT,STEERING LOCK,25M

€ 18.50

8

46098012
ref: 8

CAP,STEERING STEM

€ 4.50

9

92047014
ref: 9

RACE,STEERING STEM BE

€ 12.50

10

600A0600
ref: 10

BALL-STEEL,3/16

€ 0.50

11

92048009
ref: 11

RACE,STRG STM

€ 14.00

12

32002074
ref: 12

FRAME

€ 276.50

12

320021065
ref: 12
KE125-A6

FRAME

€ 276.50

13

92037150
ref: 13

CLAMP,WIRE HARNESS

€ 4.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

112B0614
ref: 15

BOLT-UPSET 6X14

€ 2.50

16

92075101
ref: 16

DAMPER RUBBER-FL TANK

€ 4.00

17

92048005
ref: 17

RACE-STEERING BEARING

€ 11.50

18

600A0800
ref: 18

BALL-STEEL,1/4

€ 0.50

19

92047010
ref: 19

CONE-STERNG BERG LOW

€ 10.00

20

28012009
ref: 20

REFLECTOR-REFLEX,RR

€ 17.50

21

92094011
ref: 21

DAMPER,REFLECTOR

€ 3.00

22

92037093
ref: 22

CLAMP

€ 7.50

23

92037176
ref: 23

CLAMP,CABLE

€ 5.50

23-1

92037176
ref: 23-1
KE125-A4~

CLAMP,CABLE

€ 5.50

24

411B0600
ref: 24

WASHER-PLAIN,6MM

€ 0.50

25

112G0610
ref: 25

BOLT,6X10

€ 0.50

25

112G0612
ref: 25
KE125-A4~

BOLT-UPSET

€ 2.50

26

92075284
ref: 26

DAMPER,FUEL TANK

€ 12.50

27

32103023
ref: 27

DAMPER,BATTERY BOTTOM

€ 2.50

28

32103027
ref: 28

DAMPER,BATTERY

€ 7.50

29

92075217
ref: 29

DAMPER,AIR FILTER

€ 2.50

30

92027153
ref: 30

COLLAR

€ 4.00

31

92075051
ref: 31

DAMPER RUBBER

€ 2.50

32

461F0600
ref: 32

WASHER-SPRING,6MM

€ 0.50

33

112G0616
ref: 33

BOLT UPSET,6X16

€ 1.00

34

112G0625
ref: 34

BOLT-UPSET,6X25

€ 4.00

35

461F0600
ref: 35

WASHER-SPRING,6MM

€ 0.50

36

92022228
ref: 36

WASHER-PLAIN,7MM

€ 2.50

37

92075175
ref: 37

DAMPER,FEMALE

€ 2.50

38

92075174
ref: 38

DAMPER,MALE

€ 3.00

39

92027162
ref: 39

COLLAR-REAR FENDER

€ 4.50

40

32098022
ref: 40

CASE,TOOL

€ 26.00

41

92075150
ref: 41

DAMPER,OIL TANK

€ 2.50

42

92075107
ref: 42

DAMPER

€ 2.00

43

920151429
ref: 43

NUT,10MM

€ 4.50

44

920151124
ref: 44

NUT,LOCK,8MM

€ 3.50

45

92071056
ref: 45

GROMMET

€ 2.50

46

55016008
ref: 46

BRACKET,ENGINE GUARD

€ 5.50

47

55011020
ref: 47

GUARD,ENGINE

€ 30.50

48

92022125
ref: 48

WASHER,6.5X20X1.6

€ 1.00

49

461F0600
ref: 49

WASHER-SPRING,6MM

€ 0.50

50

112G0616
ref: 50

BOLT UPSET,6X16

€ 1.00

51

920011246
ref: 51

BOLT,HEX HEAD,10X117

€ 7.00

51

920011603
ref: 51
KE125-A4~

BOLT,FLANGED,10X115

€ 7.00

52

920011249
ref: 52

BOLT,HEX HEAD,10X130

€ 5.50

53

110B0871
ref: 53

BOLT-HEX HEAD,8X71

€ 6.00

54

110B0865
ref: 54

BOLT,HEX HEAD,8X65

€ 1.00
