CLUTCH ('76-'79)
KE125-A4 KE125 1977 USA CANADA

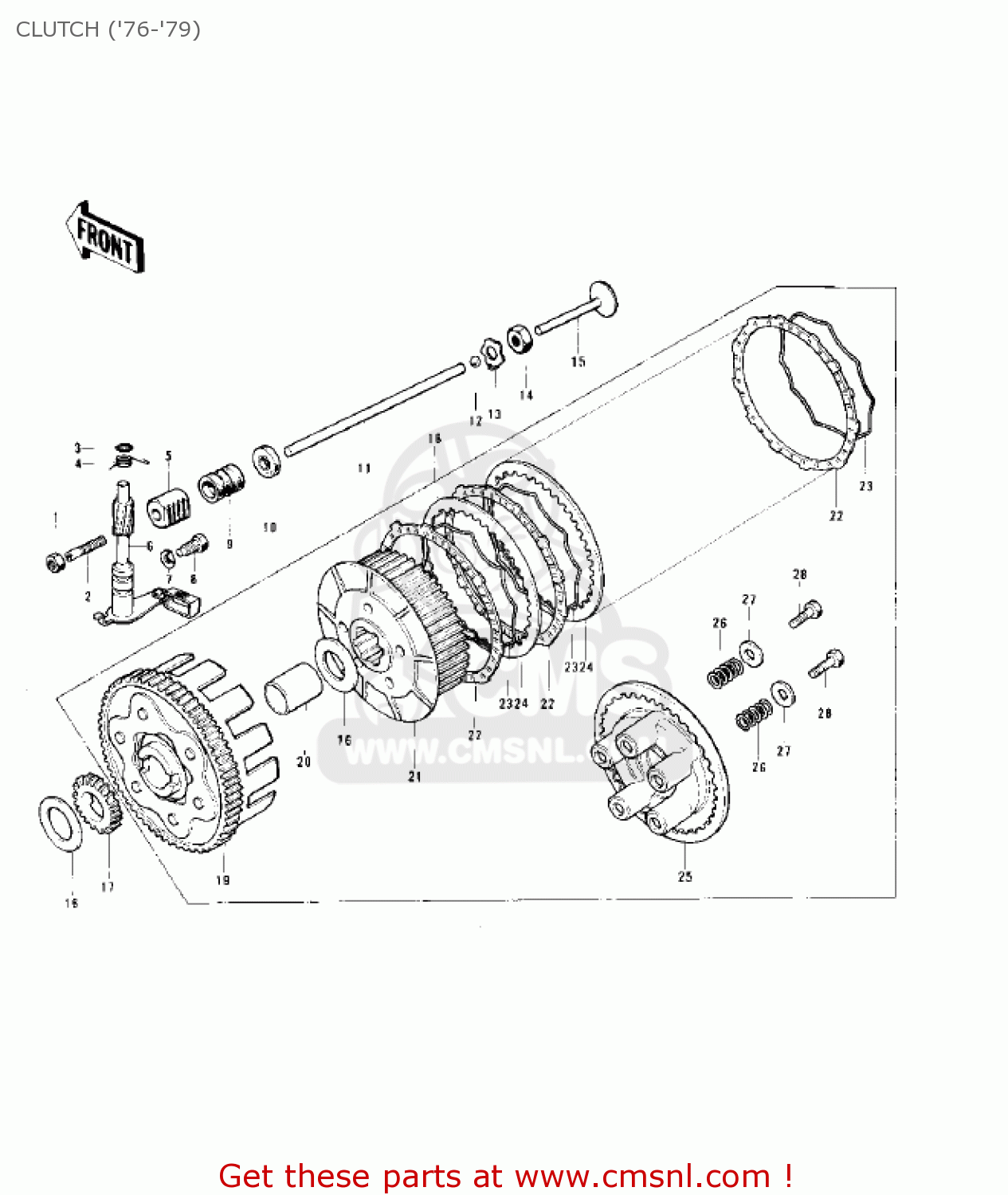

Clutch ('76-'79) diagram KE125-A4 KE125 1977 USA CANADA
CLUTCH ('76-'79) KE125-A4 KE125 1977 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
92014015
ref: 2
SCREW,SET,6X26
€ 6.50
3
670B2010
ref: 3
O RING,10MM
€ 1.00
4
92083024
ref: 4
KE125-A4
SPRING,CLUTCH RELESE
€ 3.50
5
13116026
ref: 5
ROD-PUSH,CLUTCH RELEA
€ 19.50
6
13234003
ref: 6
SHAFT-COMP,CLUTCH REL
€ 59.00
7
92031009
ref: 7
WASHER,LOCK
€ 2.00
8
92003130
ref: 8
BOLT,CLUTCH RELEASE
€ 3.50
9
92027207
ref: 9
COLLAR,11X15,RUBBER
€ 2.50
10
92050058
ref: 10
OIL SEAL,PUSH ROD
€ 5.50
11
13116027
ref: 11
ROD-PUSH,CLUTCH
€ 10.50
12
600A0700
ref: 12
BALL-STEEL,7/32
€ 2.50
13
92024046
ref: 13
WASHER,LOCK,14MM
€ 2.00
14
315B1400
ref: 14
NUT,14MM
€ 1.00
15
13116016
ref: 15
ROD-PUSH,CLUTCH SPRIN
€ 11.50
16
92022270
ref: 16
WASHER,PLAIN
€ 7.00
17
13075010
ref: 17
GEAR-SPUR,KICKSTARTER
€ 33.50
18
130811053
ref: 18
CLUTCH ASSY
€ 187.50
19
130951034
ref: 19
HOUSING-COMP-CLUTCH
€ 271.00
20
92028138
ref: 20
BUSHING,17X22X33.5
€ 23.50
21
13087038
ref: 21
HUB-CLUTCH
€ 52.00
22
130881015
ref: 22
PLATE-FRICTION (NAS)
€ 11.50
23
13229002
ref: 23
SPRING,CLUTCH STEEL
€ 7.50
24
13089003
ref: 24
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
25
13187004
ref: 25
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
26
92081123
ref: 26
SPRING,CLUTCH
€ 4.50
27
92022167
ref: 27
WASHER-PLAIN,5MM
€ 1.50
28
92003078
ref: 28
BOLT,5X18
€ 2.00
