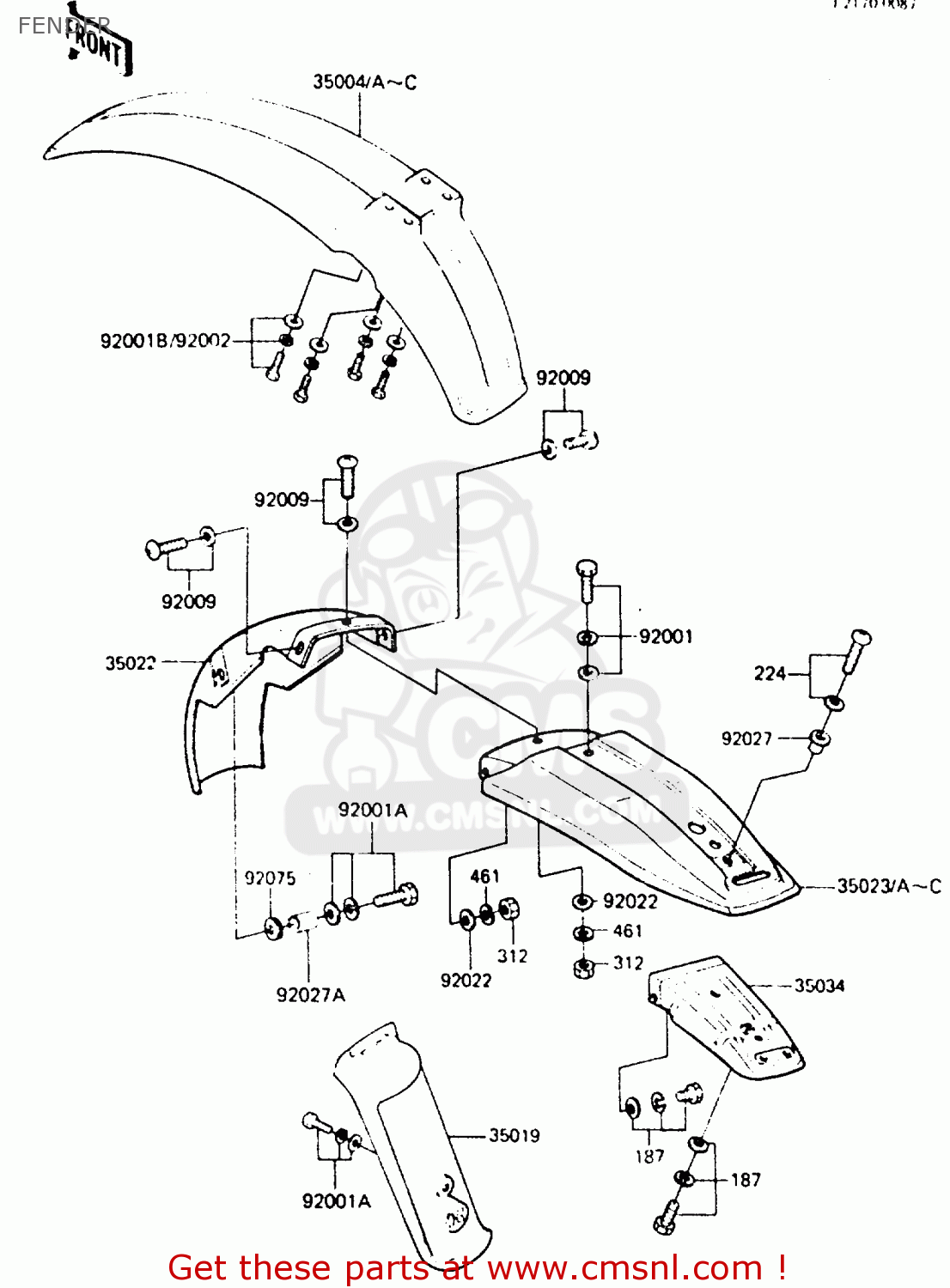

FENDER

ref

part #

description

quantity

35004B

3500410726K
ref: 35004B

FENDER-FRONT,B.BLUE

€ 50.50

35004C

3500410726W
ref: 35004C

FENDER-FRONT,L.GREEN

€ 78.00

35022

35022064
ref: 35022

FENDER-COMP-REAR,FR

€ 27.00

35023B

3502310396K
ref: 35023B

FENDER-REAR,B.BLUE

€ 36.50

35023C

3502310396W
ref: 35023C

FENDER-REAR,L.GREEN

€ 54.50

35034

350341075
ref: 35034

REINFORCE

€ 65.50

92001

920011761
ref: 92001

BOLT,6X12

€ 2.00

92001A

920011763
ref: 92001A

BOLT,W/SP,6X16

€ 3.00

92002

920021075
ref: 92002

BOLT,6X16

€ 2.00

92009

920091281
ref: 92009

SCREW,6X14

€ 2.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271018
ref: 92027

COLLAR,L=3.5

€ 3.00

92027A

92027103
ref: 92027A

COLLAR

€ 2.50

92075

92075105
ref: 92075

DAMPER

€ 2.50

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

224

224B0614
ref: 224

SCREW-PAN-WP-CROS

€ 4.00

312

312B0600
ref: 312

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

all assemblies
