FRONT FORK
KE100-B7 1988 USA

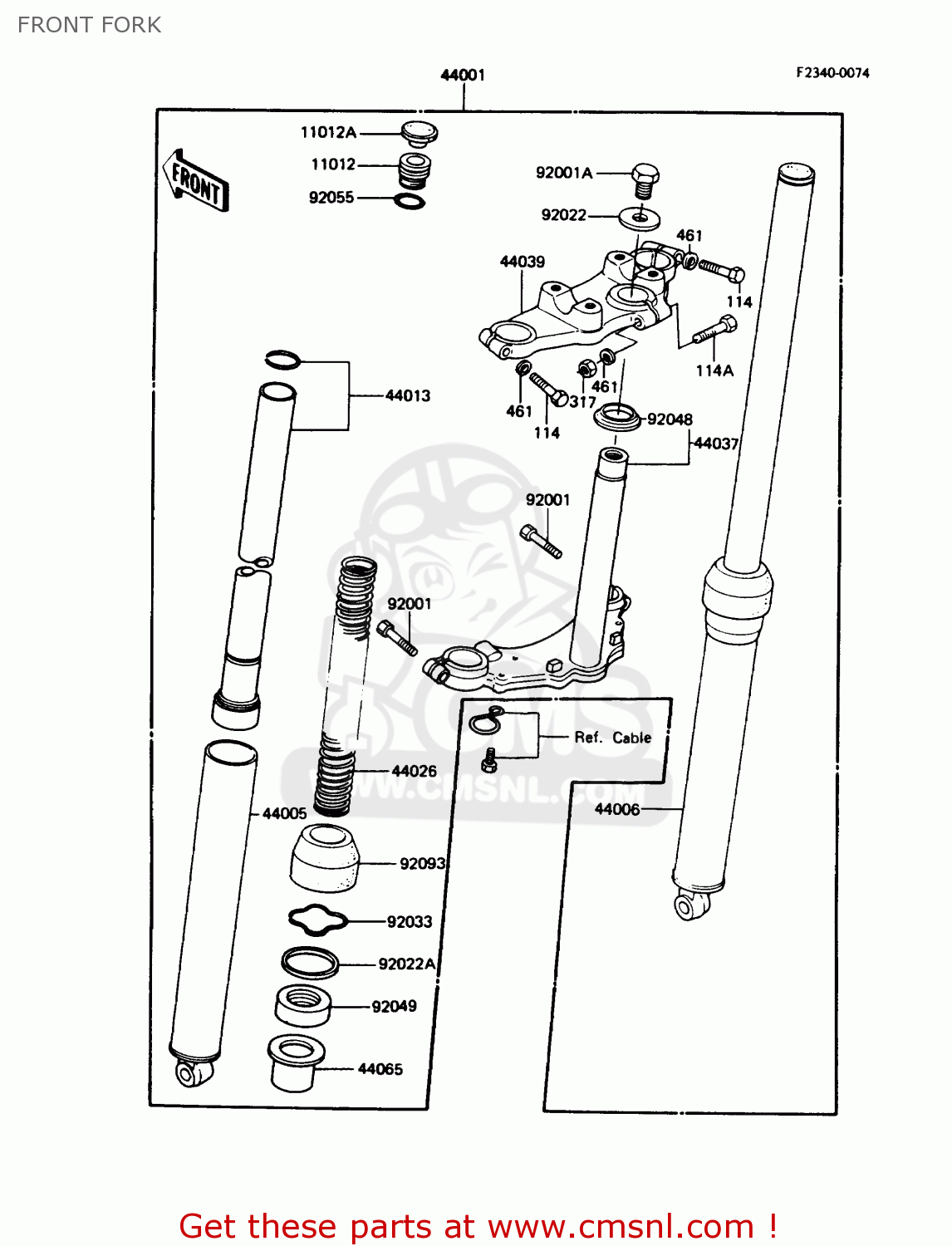

Front fork diagram KE100-B7 1988 USA
FRONT FORK KE100-B7 1988 USA
×
prices are in EUR
ref
part #
description
quantity
114
114B0835
ref: 114
BOLT-SMALL
€ 2.50
114A
114B0845
ref: 114A
BOLT,HEX HEAD,8X45
€ 3.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
11012
110121126
ref: 11012
CAP,SPRING
€ 13.00
11012A
110121127
ref: 11012A
CAP,FORK
€ 4.50
44001
440011303
ref: 44001
FORK-FRONT
€ 1,254.50
44005
440051076
ref: 44005
PIPE-LEFT FORK OUTER
€ 171.50
44006
440061075
ref: 44006
PIPE-RIGHT FORK OUTER
€ 171.50
44013
440131070
ref: 44013
PIPE-FORK INNER,30X70
€ 93.50
44026
440261120
ref: 44026
SPRING-FRONT FORK
€ 29.00
44037
440371076
ref: 44037
HOLDER-FORK UNDER
€ 189.00
44039
44039047
ref: 44039
HOLDER-FORK UPPER
€ 142.50
44065
440651014
ref: 44065
BUSHING-FRONT FORK
€ 17.50
92001
920011269
ref: 92001
BOLT,10X36
€ 3.00
92001A
920011327
ref: 92001A
BOLT-STRNG, STEM HEAD
€ 11.50
92022
920221198
ref: 92022
STEERING WASHER
€ 7.00
92022A
920221241
ref: 92022A
WASHER,FRONT FORK OIL
€ 4.50
92033
920331038
ref: 92033
RING-SNAP
€ 3.00
92048
92047004
ref: 92048
CONE-LOWER BEARING
€ 13.00
92049
920491067
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551087
ref: 92055
RING-O
€ 4.00
92093
920931065
ref: 92093
SEAL,DUST
€ 14.50
