FRAME FITTING

KE100-B7 1988 USA

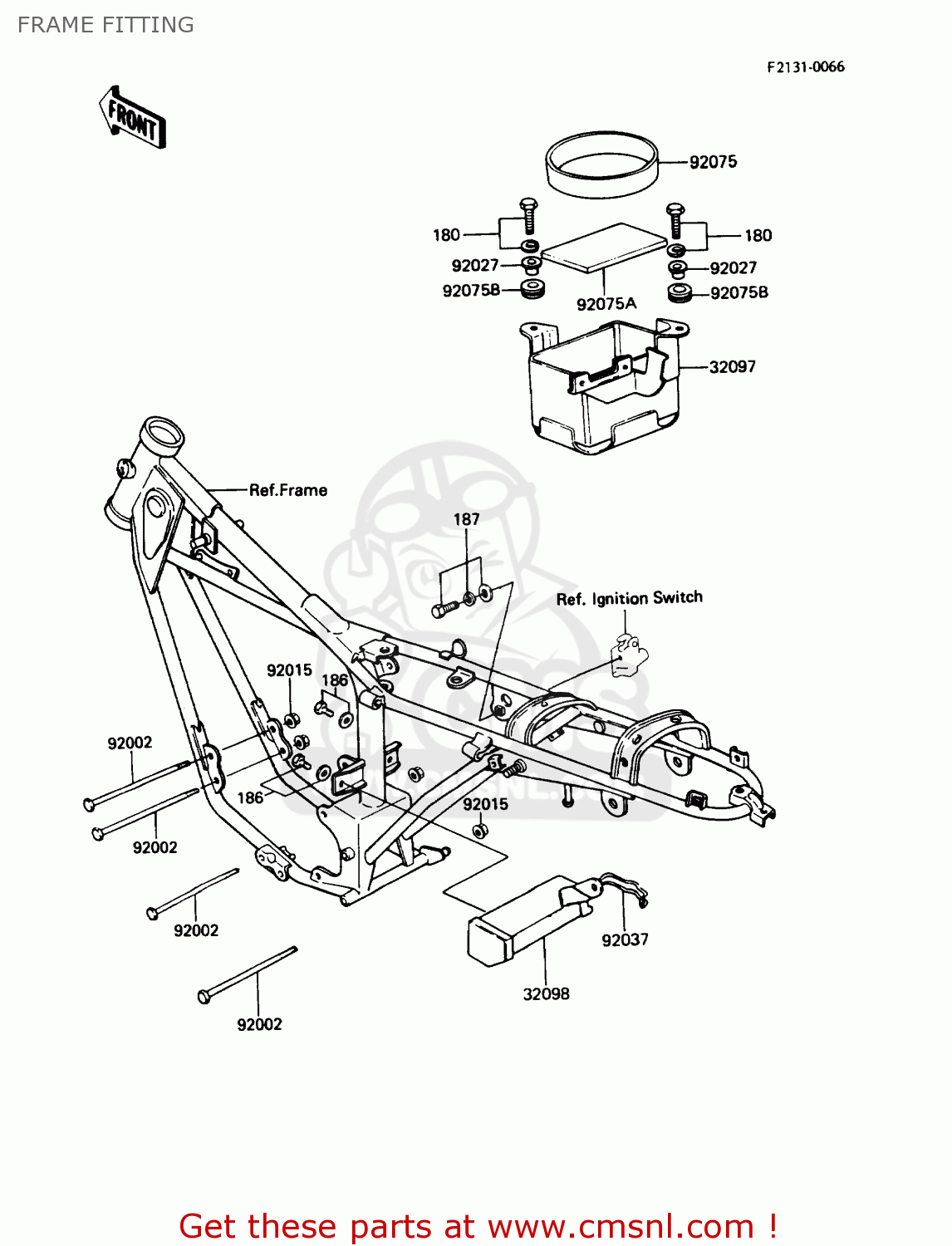

Frame fitting diagram KE100-B7 1988 USA

prices are in EUR

ref

part #

description

quantity

180

180B0618
ref: 180

BOLT-UPSET-WS

€ 0.50

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

32097

320971009
ref: 32097

BATTERY CASE

€ 35.00

32098

32098018
ref: 32098

CASE-TOOL

€ 51.00

92002

920021072
ref: 92002

BOLT,10X115

€ 7.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92027

92027153
ref: 92027

COLLAR

€ 4.00

92037

92079002
ref: 92037

CLAMP,TOOL CASE

€ 8.00

92075

32103023
ref: 92075

DAMPER,BATTERY BOTTOM

€ 2.50

92075A

32103027
ref: 92075A

DAMPER,BATTERY

€ 7.50

92075B

92075051
ref: 92075B

DAMPER RUBBER

€ 2.50
