FENDER
KE100-B10 1991 USA

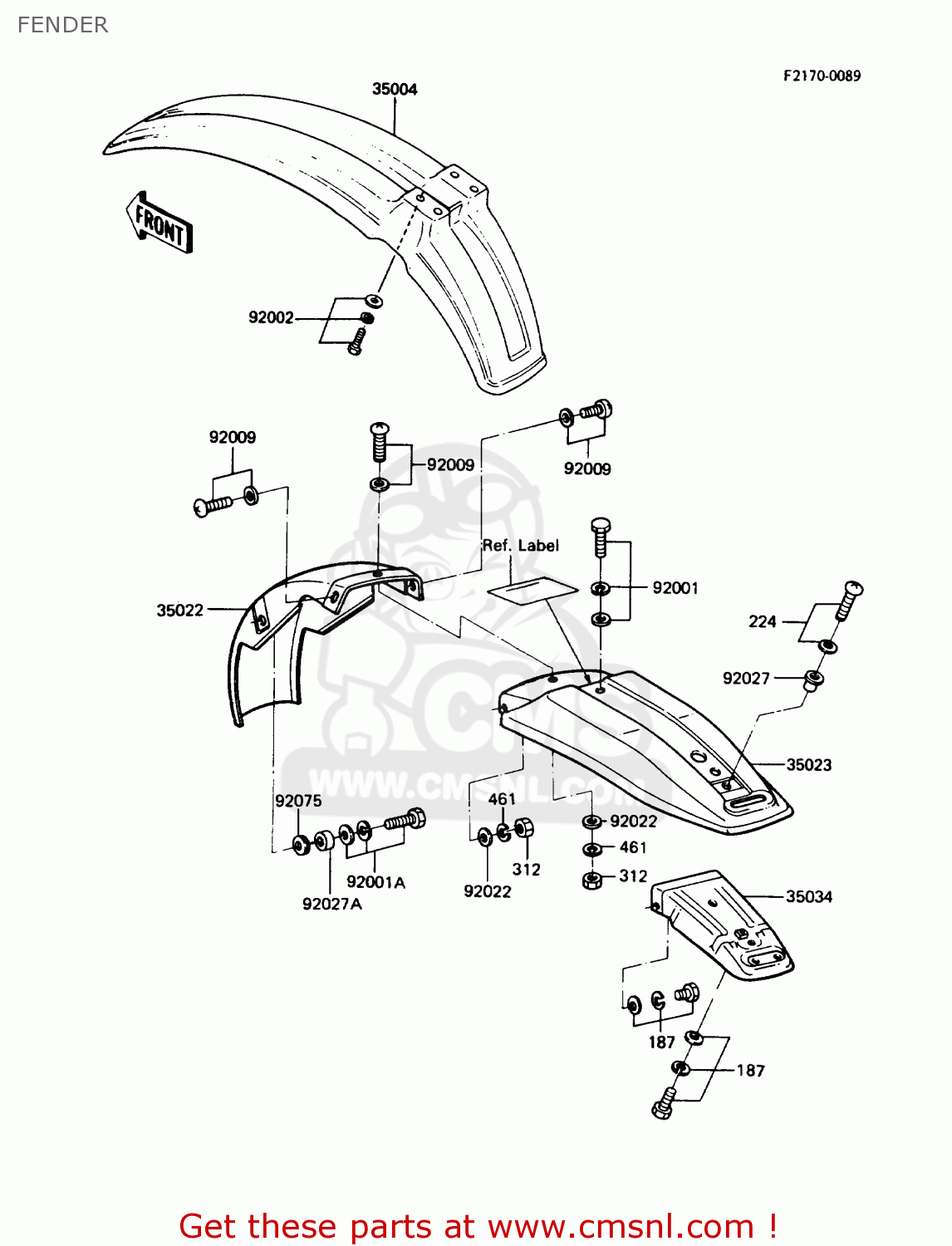

Fender diagram KE100-B10 1991 USA
FENDER KE100-B10 1991 USA
×
prices are in EUR
ref
part #
description
quantity
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
224
224B0614
ref: 224
SCREW-PAN-WP-CROS
€ 4.00
312
312B0600
ref: 312
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
35004
3500410726F
ref: 35004
FENDER-FRONT,P.WHITE
€ 73.00
35022
35022064
ref: 35022
FENDER-COMP-REAR,FR
€ 27.00
35023
3502310396F
ref: 35023
FENDER-REAR,RR,P.WHIT
€ 54.50
35034
350341075
ref: 35034
REINFORCE
€ 65.50
92001
920011761
ref: 92001
BOLT,6X12
€ 2.00
92001A
920011763
ref: 92001A
BOLT,W/SP,6X16
€ 3.00
92002
920021075
ref: 92002
BOLT,6X16
€ 2.00
92009
920091281
ref: 92009
SCREW,6X14
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271018
ref: 92027
COLLAR,L=3.5
€ 3.00
92027A
92027103
ref: 92027A
COLLAR
€ 2.50
92075
92075105
ref: 92075
DAMPER
€ 2.50
