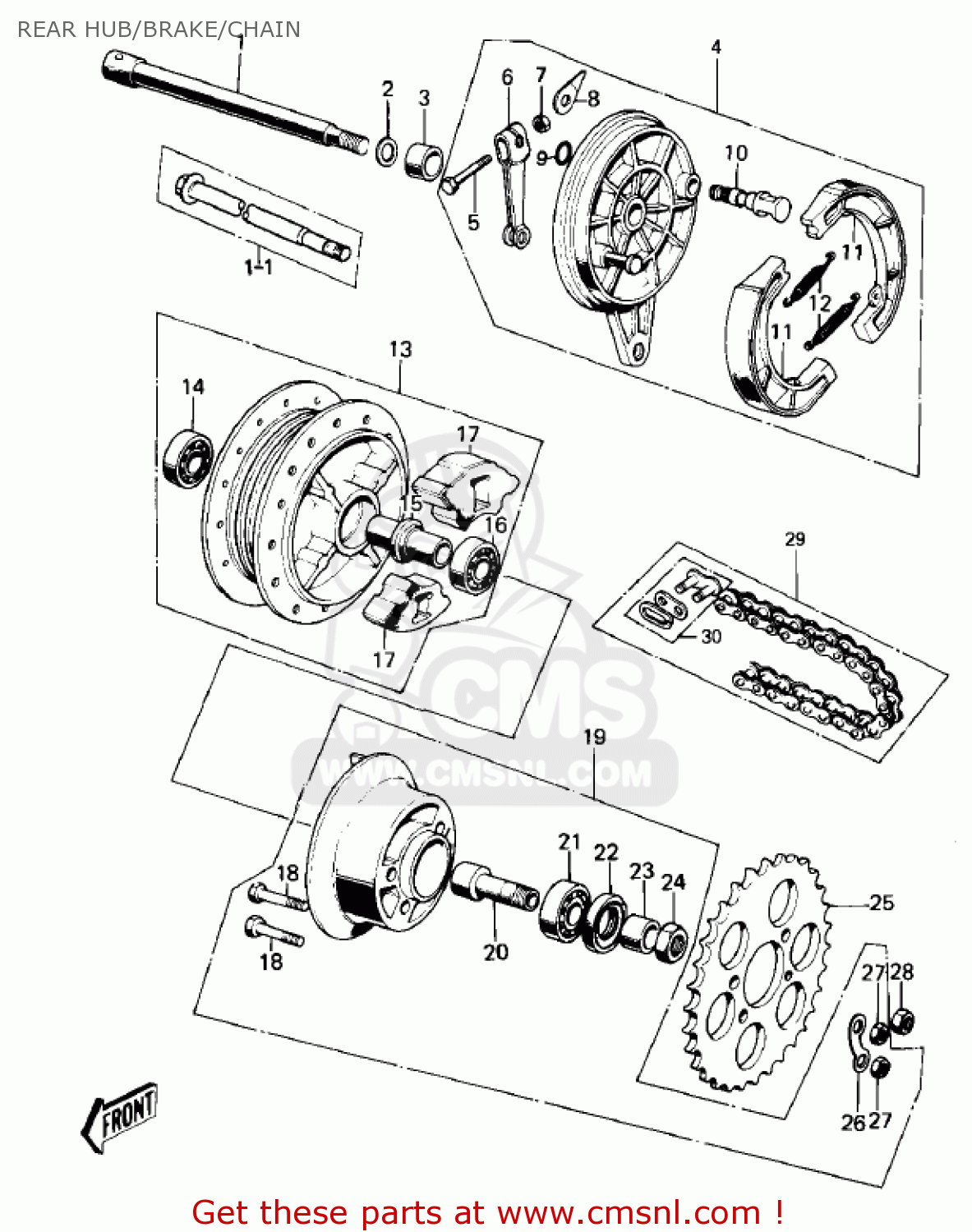

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410681109
ref: 1
KE100-A5/A6/A7/A8

AXLE,12X215

€ 26.00

1-1

410681109
ref: 1-1
KE100-A9/A10

AXLE,12X215

€ 26.00

2

411B1200
ref: 2

WASHER-PLAIN,12MM

€ 0.50

3

42032006
ref: 3

COLLAR-REAR HUB R.H

€ 7.00

4

4200606680
ref: 4

PANEL ASY,RR BRK.BUFF

€ 88.00

5

112G0630
ref: 5

BOLT-UPSET

€ 1.00

6

42029020
ref: 6

LEVER-BRAKE CAM

€ 20.50

7

41072007
ref: 7

NUT,6MM

€ 2.50

8

41085003
ref: 8

INDICATOR,BRAKE SHOE

€ 9.00

10

42026018
ref: 10

CAM-BRAKE

€ 19.50

11

410481085
ref: 11

SHOE-BRAKE (NAS)

€ 13.00

12

920811766
ref: 12

SPRING,BRAKE SHOE

€ 5.50

13

4200503180
ref: 13

DRUM ASY,RR BR,BUFF

€ 263.50

14

601B6301Z
ref: 14

BEARING-BALL,#6301ZC3

€ 15.00

15

42010005
ref: 15

COLLAR,L=58

€ 8.50

16

601B6201
ref: 16

BEARING-BALL,#6201C3

€ 7.00

17

42014016
ref: 17

DAMPER,RR HUB SHOCK

€ 12.50

18

92001082
ref: 18

BOLT-REAR SPROCKET

€ 2.00

19

42033014
ref: 19

COUPLING ASSY-RR HUB

€ 80.50

20

42036013
ref: 20

SLEEVE,RR HUB COUPLIN

€ 23.50

21

601B6203
ref: 21

BEARING-BALL,#6203C3

€ 10.50

22

92052003
ref: 22

OIL SEAL-COUPLING

€ 8.50

23

42037003
ref: 23

COLLAR,17X25X12.5

€ 7.50

24

42045004
ref: 24

NUT,16MM

€ 4.00

25

42041076
ref: 25
STD

REAR SPROCKET 42T

€ 28.00

25

42041104
ref: 25

REAR SPROCKET, 39T

€ 23.50

25

420411095
ref: 25

SPROCKET-HUB,40T

€ 28.50

26

92088011
ref: 26

WASHER,LOCK

€ 3.00

27

315B1000
ref: 27

NUT,10MM

€ 0.50

28

42045005
ref: 28

NUT,10MM

€ 5.00

29

920571085
ref: 29

CHAIN,DRIVE,EK428-G

€ 32.50

30

920581014
ref: 30

JOINT-CHAIN,EK428-G

€ 3.50
