CYLINDER HEAD/CYLINDER
KE100-A8 KE100 1979 CANADA

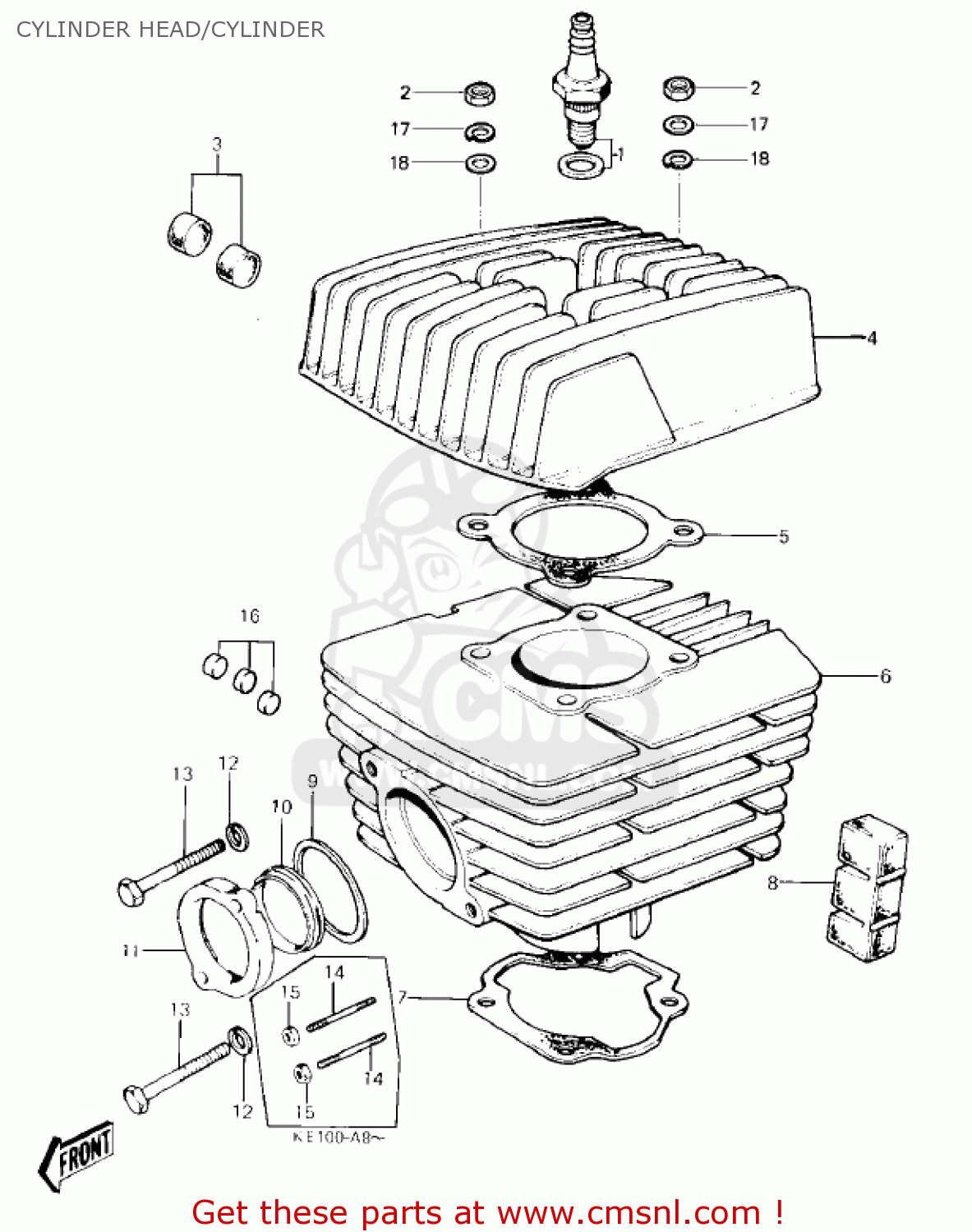

Cylinder head/cylinder diagram KE100-A8 KE100 1979 CANADA
CYLINDER HEAD/CYLINDER KE100-A8 KE100 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92070010
ref: 1
KE100-A5/A6
B8HC (NGK SPARKPLUG)
€ 6.50
1
B8ESA
ref: 1
KE100-A7/A8/A9/A10
NGK SPARK-PLUG B8ES
€ 3.00
2
311B0800
ref: 2
KE100-A5/A6
NUT,8MM
€ 0.50
2
920151022
ref: 2
KE100-A7/A8/A9/A10
NUT, 8MM
€ 0.50
3
92075074
ref: 3
KE100-A5/A6
DAMPER
€ 3.00
3
92075075
ref: 3
KE100-A7/A8/A9/A10
DAMPER,13X13.8
€ 3.00
4
1100107521
ref: 4
KE100-A5/A6
CYLINDER HEAD,FLAT BLACK
€ 194.00
4
110011018
ref: 4
KE100-A7/A8
HEAD-CYLINDER
€ 169.50
4
110011008
ref: 4
KE100-A9
HEAD-CYLINDER
€ 172.00
4
110011018
ref: 4
KE100-A10
HEAD-CYLINDER
€ 169.50
5
11004033
ref: 5
GASKET-HEAD,CYLINDER (NAS)
€ 9.00
6
110051027
ref: 6
KE100-A5/A6
CYLINDER-ENGINE,BLACK
€ 544.00
6
110051027
ref: 6
KE100-A7
CYLINDER-ENGINE,BLACK
€ 544.00
6
110051006
ref: 6
KE100-A8/A10
CYLINDER-ENGINE,ELECT
€ 562.00
6
110051082
ref: 6
KE100-A9
CYLINDER
€ 327.00
7
110601200
ref: 7
GASKET,CYLINDER BASE (NAS)
€ 5.50
8
92075170
ref: 8
KE100-A5/A6/A7
DAMPER,CYLINDER
€ 3.00
9
110091992
ref: 9
GASKET,EXHAUST PIPE (NAS)
€ 5.50
10
18070008
ref: 10
COLLAR,EXHAUST PIPE H
€ 8.50
11
18069048
ref: 11
HOLDER-EXHAUST PIPE
€ 41.00
12
461F0600
ref: 12
KE100-A5/A6/A7
WASHER-SPRING,6MM
€ 0.50
13
112G0625
ref: 13
KE100-A5/A6/A7
BOLT-UPSET,6X25
€ 4.00
14
92004029
ref: 14
KE100-A8/A9/A10
STUD
€ 3.50
15
92017014
ref: 15
KE100-A8/A9/A10
NUT,LOCK,6MM
€ 4.00
15
920151078
ref: 15
KE100-A8/A9/A10
NUT,6M/M
€ 1.50
16
92075109
ref: 16
KE100-A7/A8/A9/A10
DAMPER,CYLINDER HEAD/
€ 2.00
17
461F0800
ref: 17
KE100-A5/A6
WASHER-SPRING,8MM
€ 0.50
18
410B0800
ref: 18
KE100-A5/A6
WASHER-PLAIN-SMALL,8M
€ 0.50
