SWING ARM/SHOCK ABSORBERS
KE100-A7 KE100 1978 CANADA

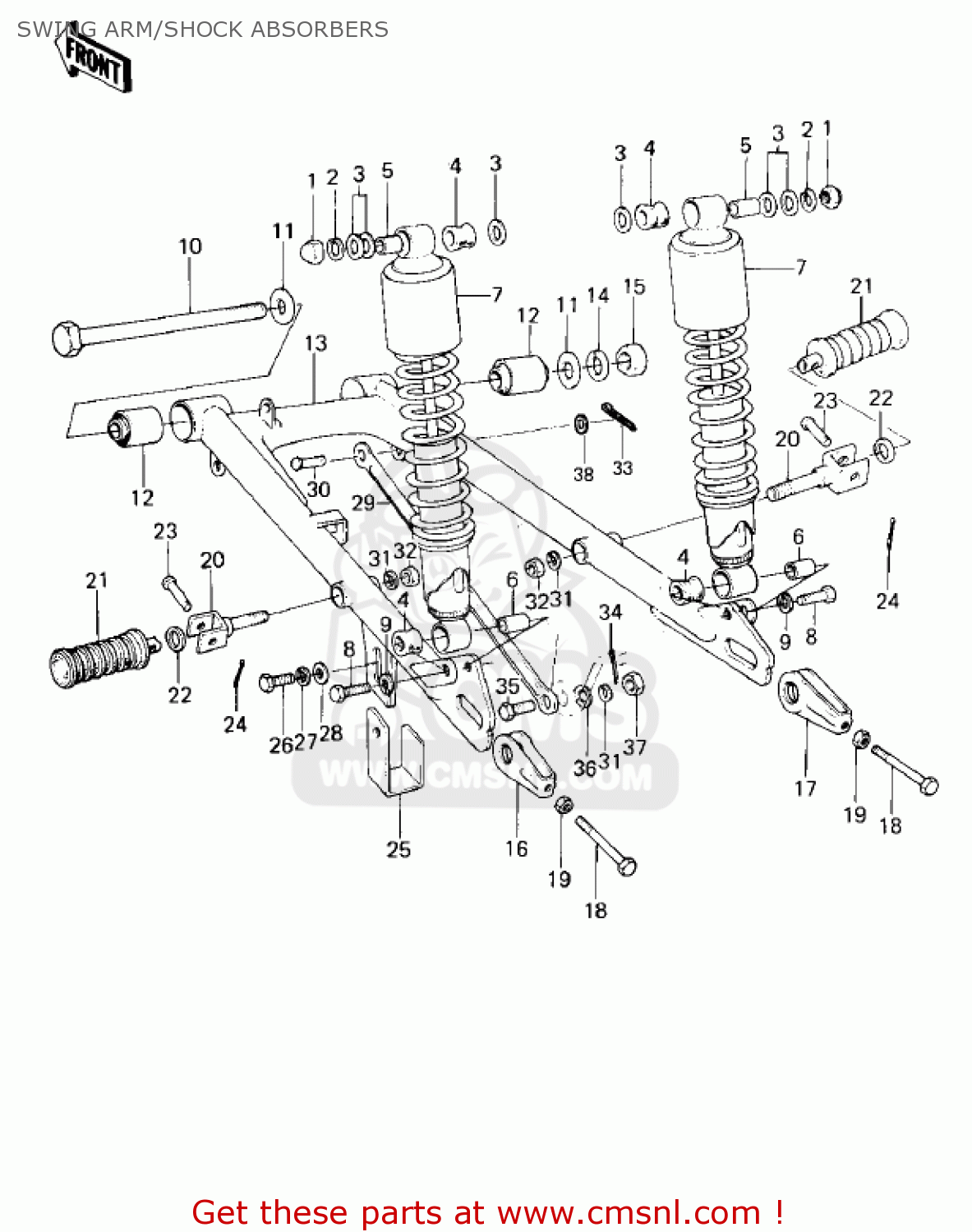

Swing arm/shock absorbers diagram KE100-A7 KE100 1978 CANADA
SWING ARM/SHOCK ABSORBERS KE100-A7 KE100 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92020014
ref: 1
NUT,CAP,12MM
€ 6.50
2
461F1200
ref: 2
WASHER-SPRING,12MM
€ 0.50
3
410B1200
ref: 3
WASHER-PLAIN-SMALL,12
€ 0.50
4
920751020
ref: 4
DAMPER,SHOCKABSORBER
€ 3.00
5
920271063
ref: 5
BUSHING,SHOCKABSORBER
€ 2.00
6
45016003
ref: 6
COLLAR,SHOCKABSORBER
€ 12.50
?
45014074
ref: ?
Includes items 4 - 7
SHOCK ABSORBER,REAR
€ 213.50
?
450141122
ref: ?
Includes items 4 - 7
SHOCKABSORBER,RR
€ 69.00
?
450141063
ref: ?
Includes items 4 - 7
SHOCK ABSORBER,REAR
€ 85.50
?
450141124
ref: ?
Includes items 4 - 7
SHOCK ABSORBER,REAR
€ 114.00
8
113N1035
ref: 8
BOLT-HEX HEAD,10X35
€ 6.00
9
461F1000
ref: 9
WASHER-SPRING,10MM
€ 0.50
10
33032034
ref: 10
SHAFT-SWING ARM
€ 22.50
11
410B1200
ref: 11
WASHER-PLAIN-SMALL,12
€ 0.50
12
92092005
ref: 12
BUSH-SWING ARM SHAFT
€ 9.50
13
33001047
ref: 13
ARM,SWING
€ 84.00
14
461F1200
ref: 14
WASHER-SPRING,12MM
€ 0.50
15
314B1200
ref: 15
NUT-HEX-FINE
€ 1.00
16
33040045
ref: 16
I.D.= 16.5 MM
ADJUSTER-CHAIN,LH
€ 9.50
17
33040046
ref: 17
I.D.= 12.5 MM
ADJUSTER-CHAIN,RH
€ 10.50
18
920011399
ref: 18
BOLT,8X50
€ 6.00
19
318B0800
ref: 19
NUT,8MM
€ 0.50
20
34029010
ref: 20
BAR, FOOTREST, GERMAN
€ 11.50
21
92076027
ref: 21
DAMPER,STEP,RR
€ 19.00
22
92022199
ref: 22
WASHER,20X30X2.3
€ 5.00
23
920431464
ref: 23
PIN
€ 5.50
24
550D2012
ref: 24
PIN,COTTER,2.0X12
€ 0.50
25
55020007
ref: 25
GUARD-CHAIN
€ 6.50
26
114B0816
ref: 26
BOLT-HEX HEAD,8X16
€ 0.50
27
461F0800
ref: 27
WASHER-SPRING,8MM
€ 0.50
28
411B0800
ref: 28
WASHER-PLAIN,8MM
€ 0.50
29
43007028
ref: 29
ROD-TORQUE,RR
€ 11.50
30
43009001
ref: 30
PIN-REAR TORQUE LINK
€ 4.50
31
461F1000
ref: 31
WASHER-SPRING,10MM
€ 0.50
32
315B1000
ref: 32
NUT,10MM
€ 0.50
33
550D2516
ref: 33
PIN-COTTER,2.5X16
€ 1.50
34
550D2015
ref: 34
PIN-COTTER,2.0X15
€ 1.00
35
92003003
ref: 35
BOLT-HEX HEAD,10X32
€ 4.00
36
410B1000
ref: 36
WASHER-PLAIN-SMALL,10
€ 0.50
37
314B1000
ref: 37
NUT,10MM
€ 0.50
38
410B1000
ref: 38
WASHER-PLAIN-SMALL,10
€ 0.50
